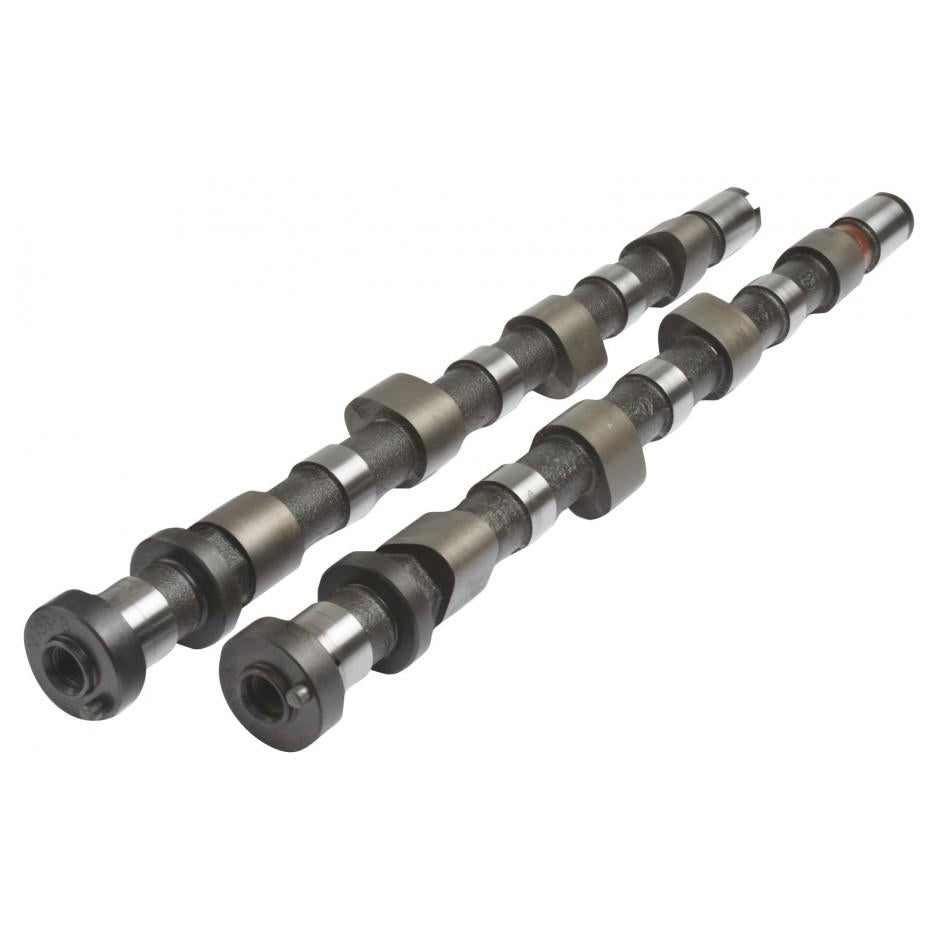

Kelford Cams 188-C Nissan SR20-DET S13 Turbo Performance Cam
Buy now pay later,no extra cost!
Payments from $90.73 with

Note: Please check availability with us before ordering.
280/280 Degrees advertised duration, 12.50mm/12.00mm lift.
Additional Information:
280 Degree racing cams to suit street / strip engines with a large turbo. Requires KVS93 valve springs. KVS93-BT valve springs are required if running over 2 bar boost.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | ||||
| NISSAN | SR20DET S13 TURBO | 188-C | ||||
| Valve Clearance: | Intake: | Set | at the | |||
| Exhaust: | Set | at the | ||||
| Cam Lift: | Intake: | 8.06mm | Exhaust: | 7.74mm | ||
| Rocker Ratio: | Intake: | 1.55 | Exhaust: | 1.55 | ||
| Nett Valve Lift: | Intake: | 12.50mm | Exhaust: | 12.00mm | ||
| Advertised Duration @ | 0.10mm | Intake: | 280 | Exhaust: | 280 | |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 236 | Exhaust: | 236 | |
| Timing @ | 1.00mm VALVE LIFT | IVO: | 8 BTDC | EVO: | 53 BBDC | |
| IVC: | 48 ABDC | EVC: | 3 ATDC | |||
| Suggested Centre Lines: | Intake: | 110 | Exhaust: | 115 | ||
| VALVE | Lift @ TDC | Intake: | 1.82mm | Exhaust: | 1.28 |
