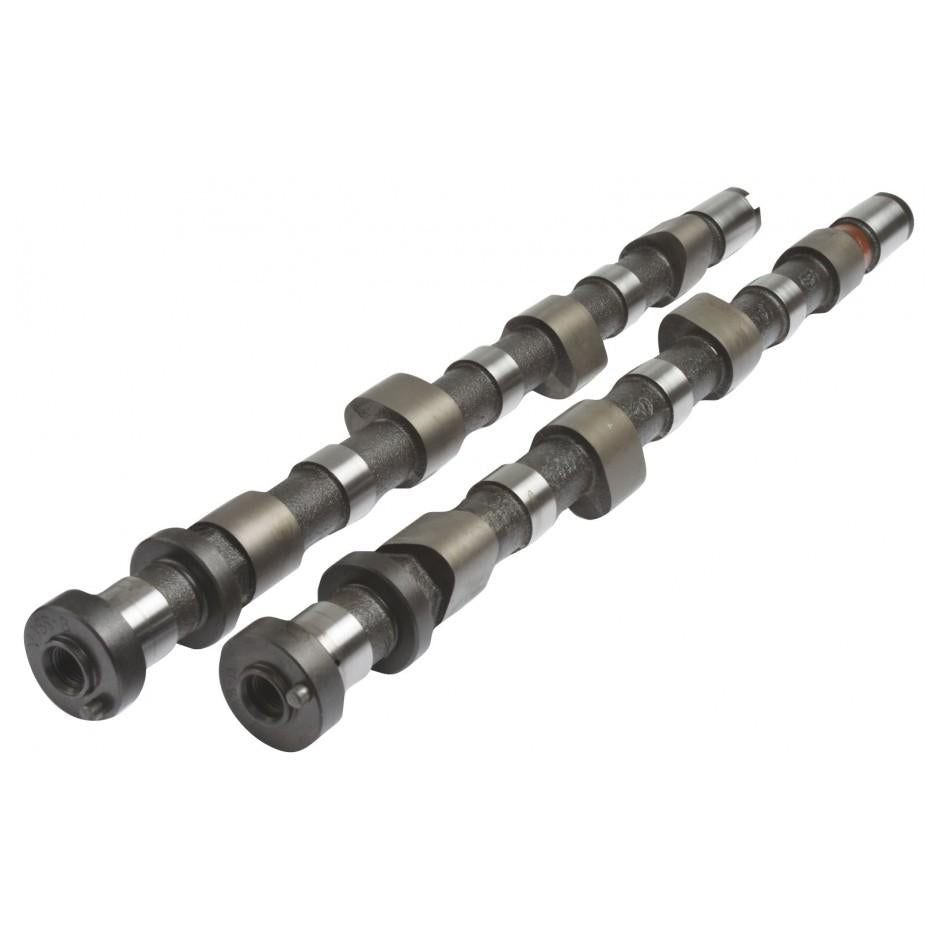

Kelford Cams 188-B Nissan SR20-DET S13 Turbo Performance Cam
Buy now pay later,no extra cost!
Payments from $90.73 with

Note: Please check availability with us before ordering.
268/272 Degrees advertised duration, 12.00mm/11.50mm lift.
Additional Information:
Ultimate drift spec cams featuring maximum lobe area and low duration for fast spool and lots of top end power. Requires KVS93 valve springs. KVS93-BT valve springs are required if running over 2 bar boost.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | ||||
| NISSAN | SR20DET S13 TURBO | 188-B | ||||
| Valve Clearance: | Intake: | Set | at the | |||
| Exhaust: | Set | at the | ||||
| Cam Lift: | Intake: | 7.74mm | Exhaust: | 7.42mm | ||
| Rocker Ratio: | Intake: | 1.55 | Exhaust: | 1.55 | ||
| Nett Valve Lift: | Intake: | 12.00mm | Exhaust: | 11.50mm | ||
| Advertised Duration @ | 0.10mm | Intake: | 268 | Exhaust: | 272 | |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 226 | Exhaust: | 230 | |
| Timing @ | 1.00mm VALVE LIFT | IVO: | 5 BTDC | EVO: | 50 BBDC | |
| IVC: | 41 ABDC | EVC: | 0 TDC | |||
| Suggested Centre Lines: | Intake: | 108 | Exhaust: | 115 | ||
| VALVE | Lift @ TDC | Intake: | 1.52mm | Exhaust: | 1.06 |
