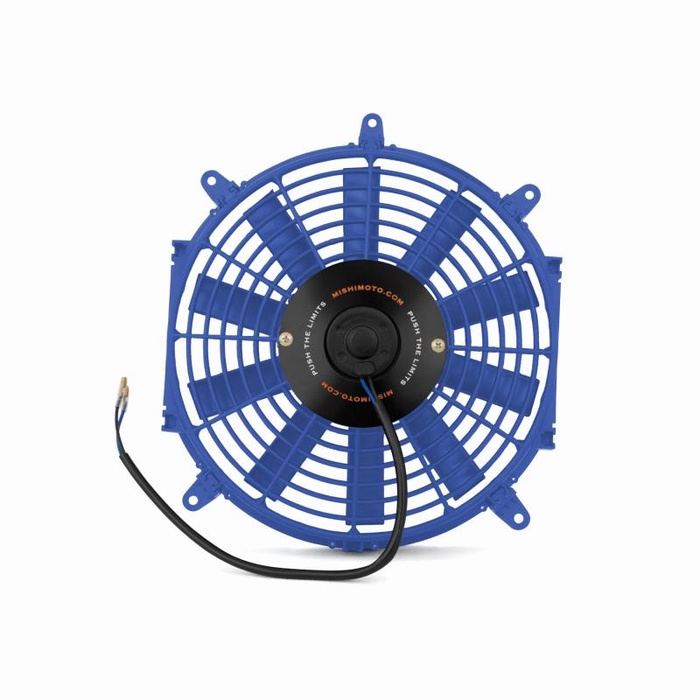

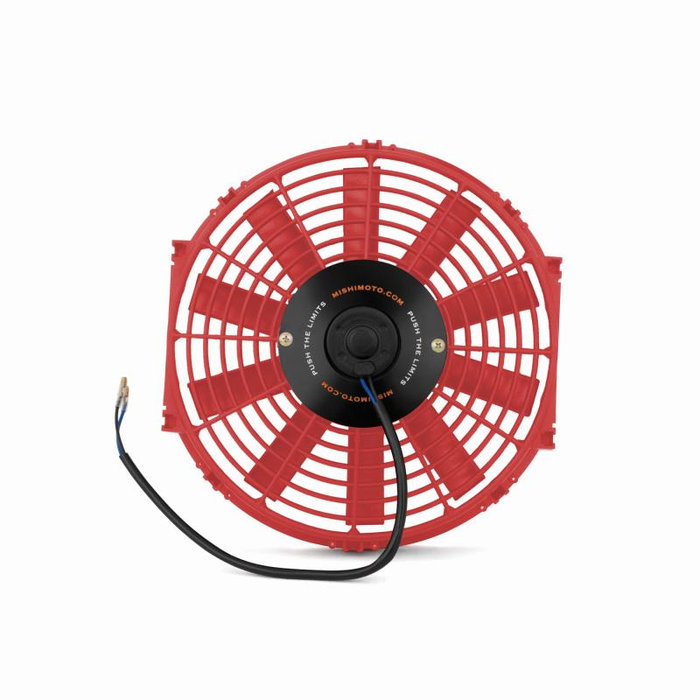

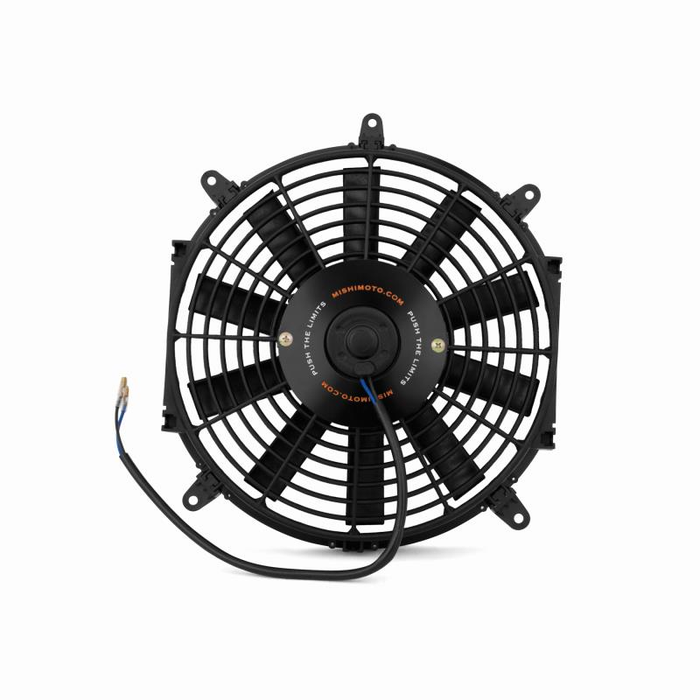

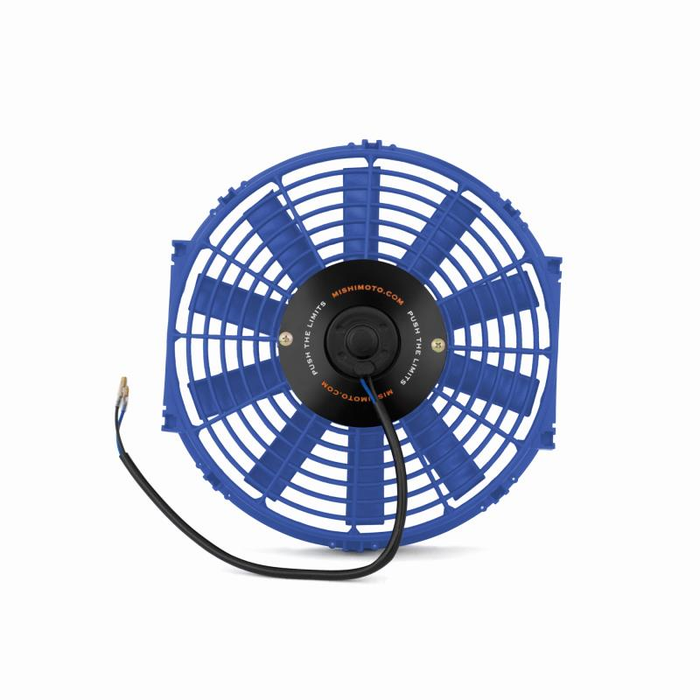

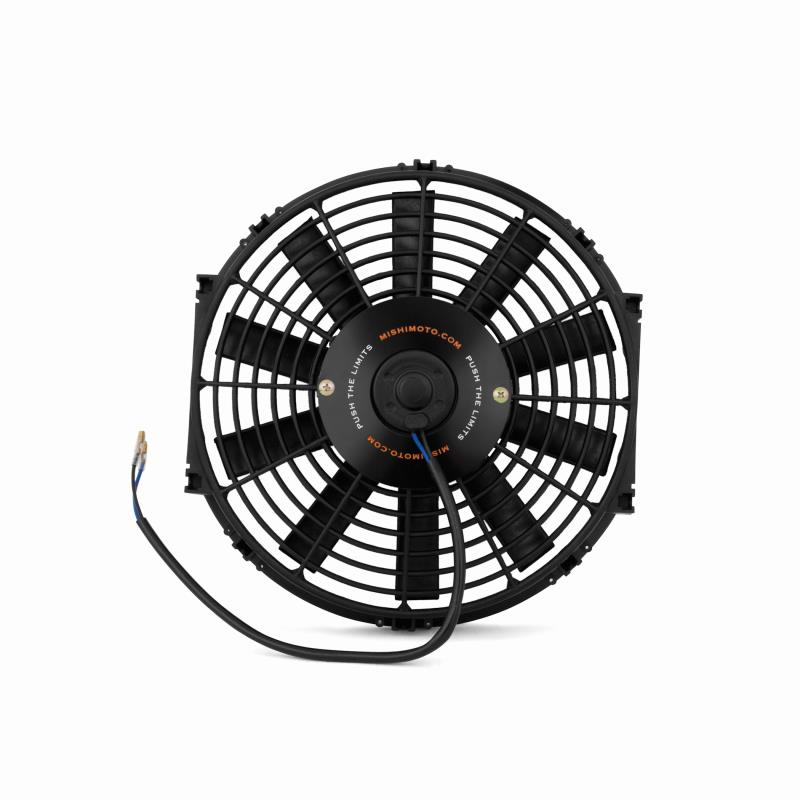

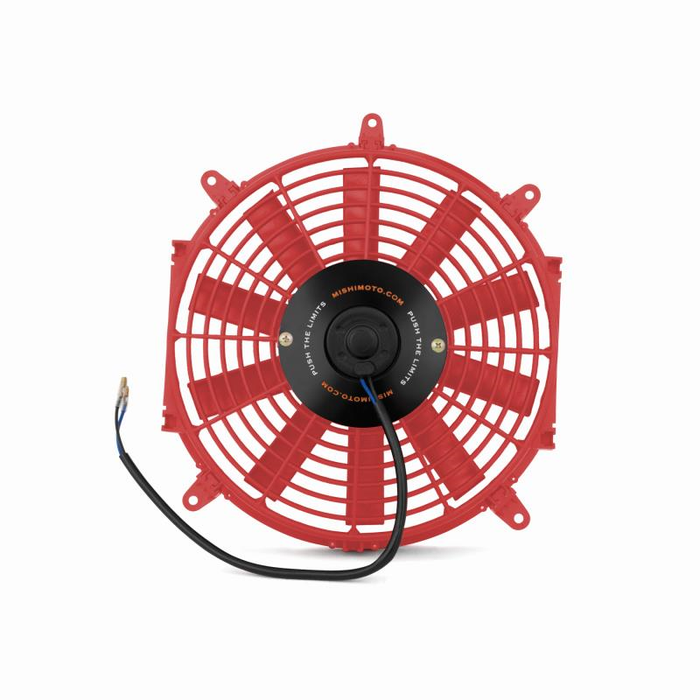

Mishimoto Slim Electric Fan 12"
Buy now pay later,no extra cost!
Payments from $18.18 with

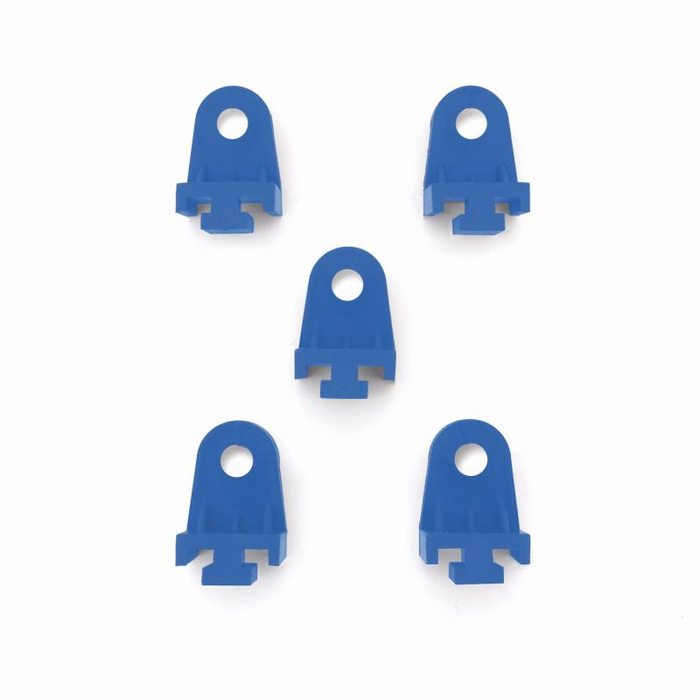

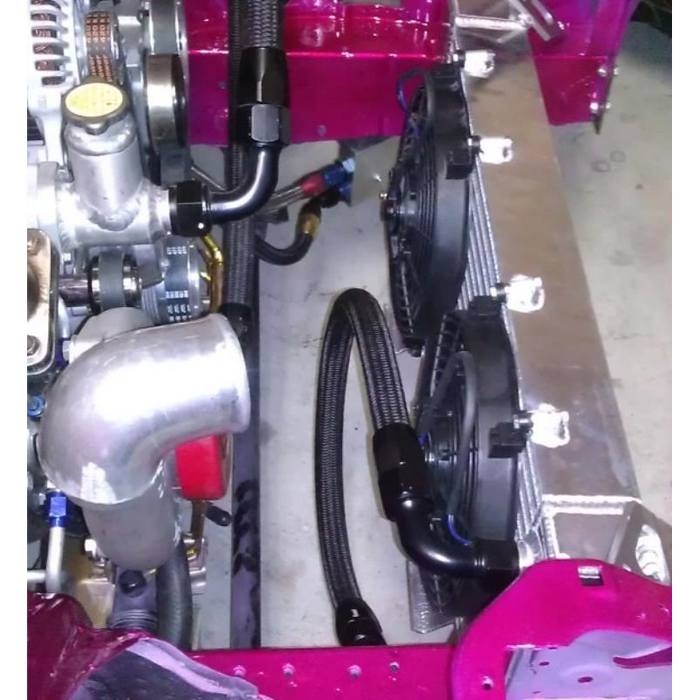

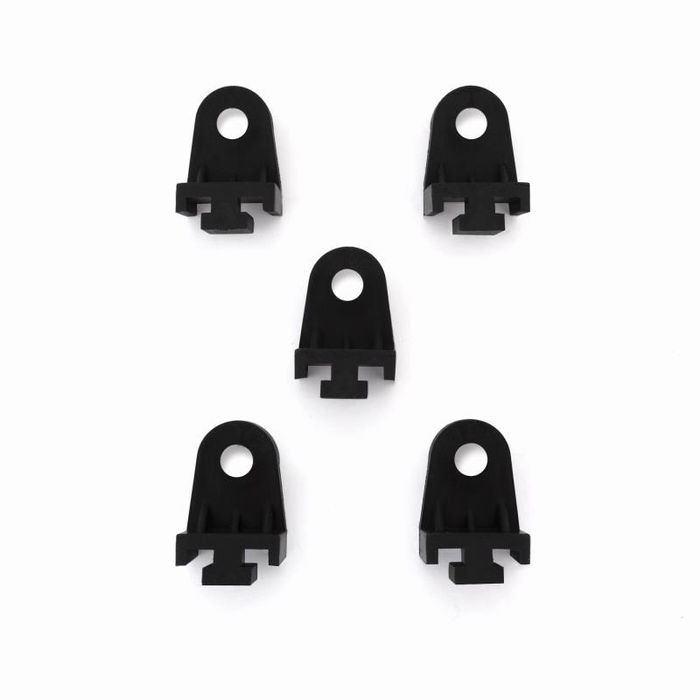

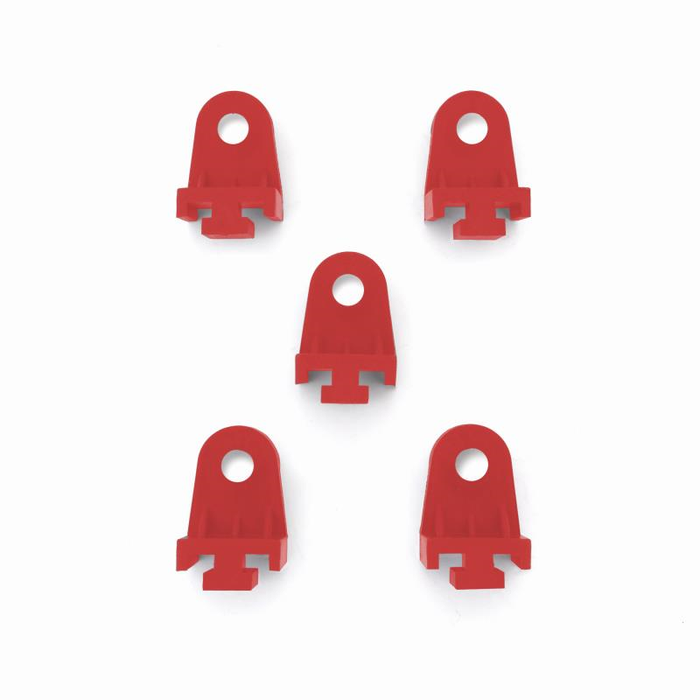

This fan can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products. With its slim design, the fan can easily be installed flush against a radiator. For universal installation, use Mishimoto universal fan mount kit. (P/N: MMFAN-MOUNT)
Features:
- High-flow fan provides 1150 cfm of airflow
- Universal fitment

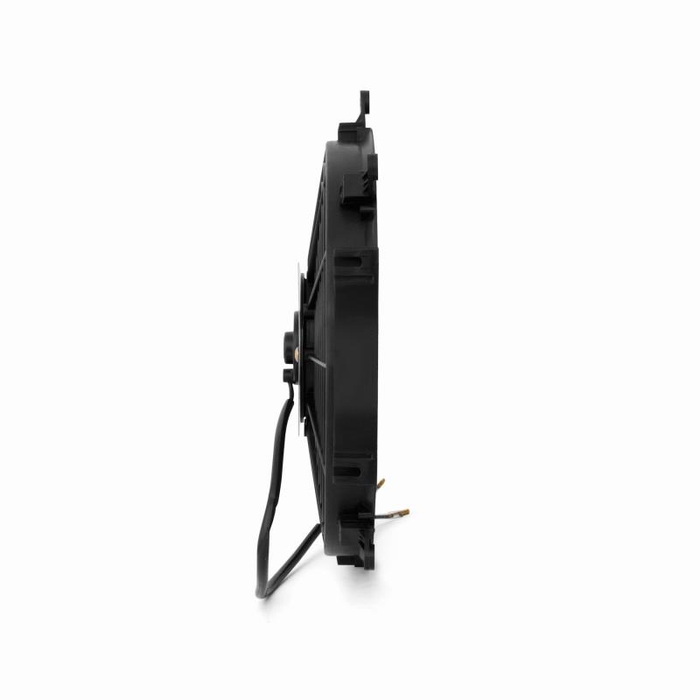

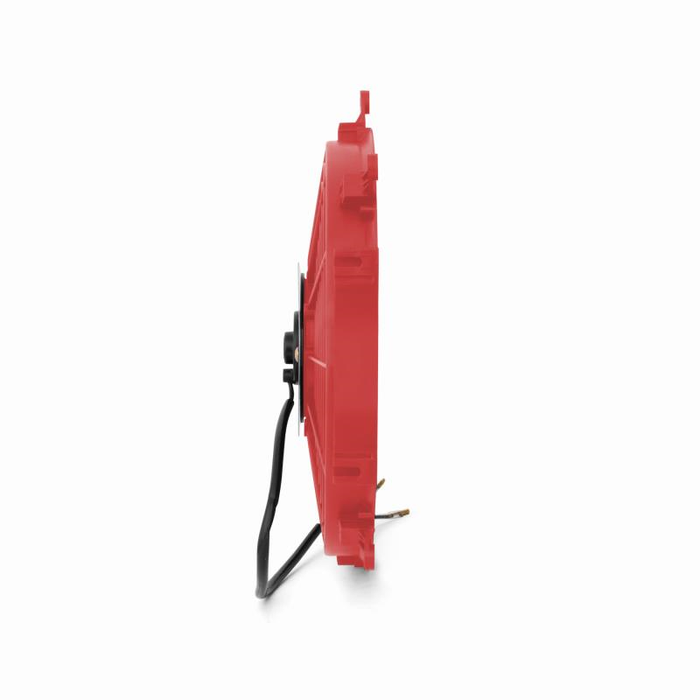

- Compact design with a diameter of 12" and an overall thickness of only 2.5" provides increased engine bay space
- Easily reversible for use as a pusher or puller fan
- Mishimoto Lifetime Warranty
Product Specifications:
TYPE OF ENDS | Female Snap-Plug Terminal |
MATERIAL | Plastic |
AIR TEMP WHILE TESTED | 72°F |
COLOR | BlackBlueRed |
NORMAL CURRENT (AMPS) | 7.6 |
VOLTS | 12 |
HOUSING DIAMETER | 12.5 |
BLADE DIAMETER | 280 |
OVERALL THICKNESS | 2.5" |
TECH SPECS AND SIZING | Click here for fan specifications and sizing chart. |
REVERSE | True |
BLADE STYLE | Straight |
INRUSH CURRENT (AMPS) | 12.7 |
# OF BLADES | 10 |
FAN RPM | 2000 |
FAN DIAMETER | 12 |
OVERALL DEPTH | 63.5 |
CFM | 1150 |
KIT INCLUDES | (1) Mishimoto Fan Mishimoto Lifetime Warranty |
