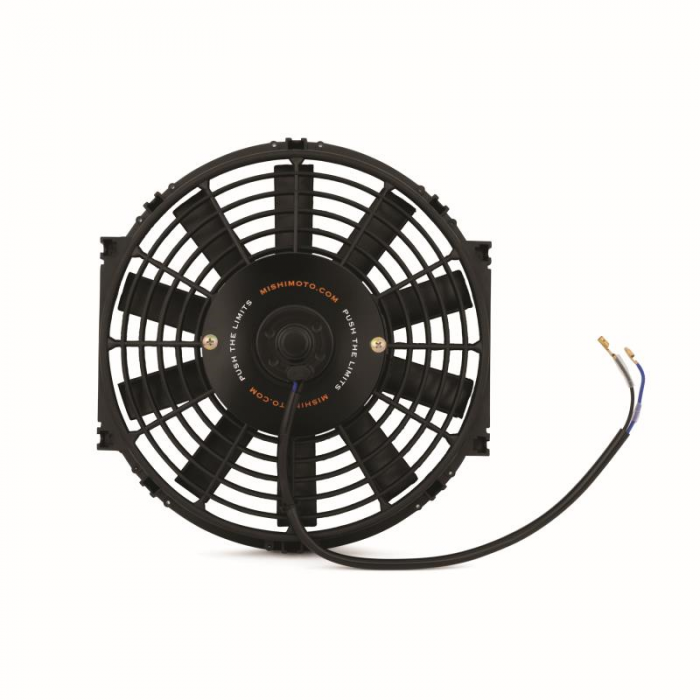

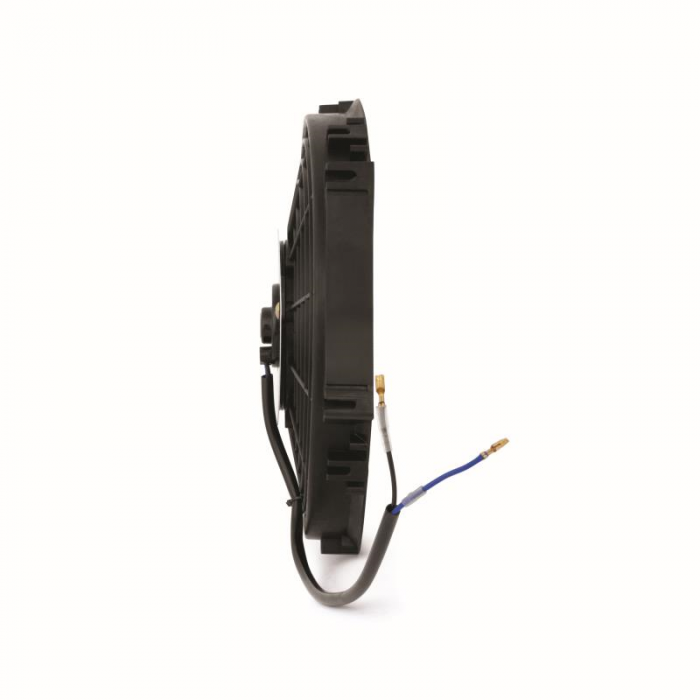

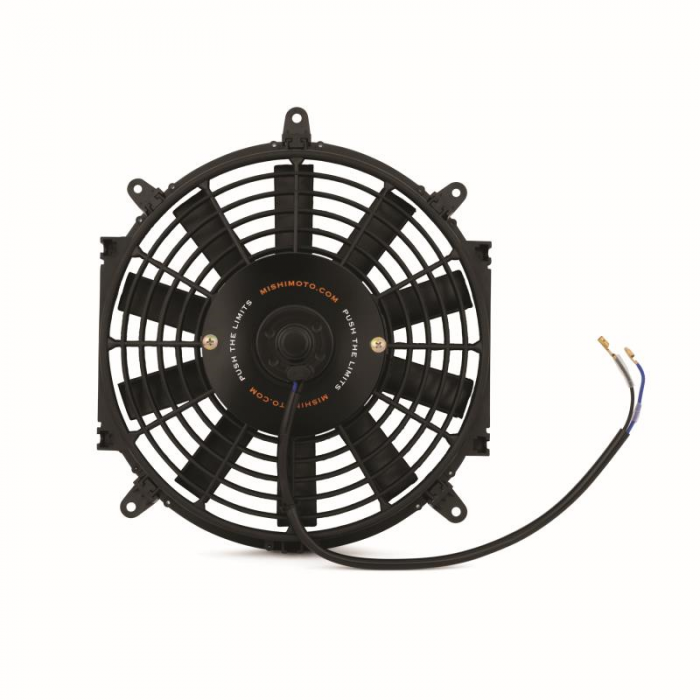

Mishimoto Slim Electric Fan 10"

Save 15%
Original Price $208.07 NZD
Current Price $176.86 NZD
SKU misMMFAN-10
Buy now pay later,no extra cost!

Payments from $17.68 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

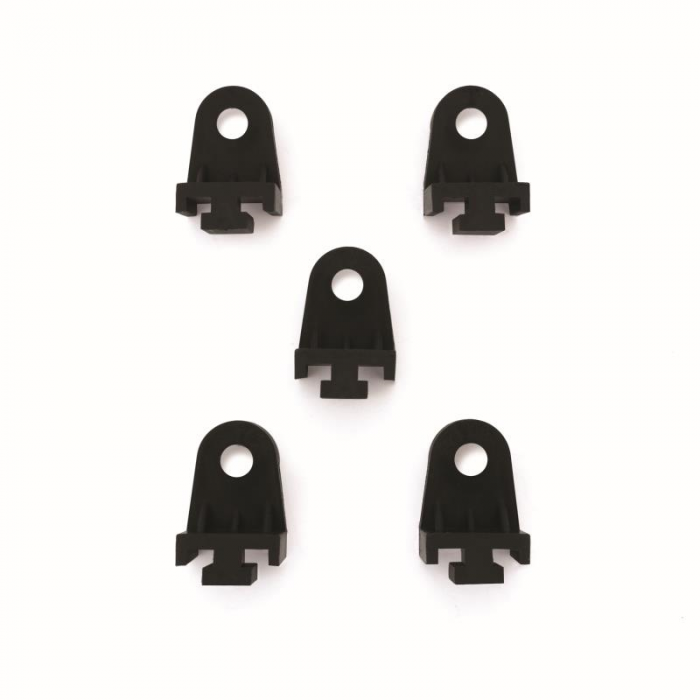

This fan can be used as an upgrade to the OEM fan for more efficient cooling or fitment issues with aftermarket products. With its slim design, the fan can easily be installed flush against a radiator. For universal installation, use Mishimoto universal fan mount kit. (P/N: MMFAN-MOUNT).

Features:

  • High-flow fan provides 950 cfm of airflow
  • Universal fitment
  • Compact design with a diameter of 10" and an overall thickness of only 2.36" provides increased engine bay space
  • Easily reversible for use as a pusher or puller fan
  • Mishimoto Lifetime Warranty

Specifications:

TYPE OF ENDS Female Snap-Plug Terminal
MATERIAL Plastic
AIR TEMP WHILE TESTED 72°F
COLOR BK
NORMAL CURRENT (AMPS) 6.8
VOLTS 12
HOUSING DIAMETER 11.5
BLADE DIAMETER 256
OVERALL THICKNESS 2.36"
TECH SPECS AND SIZING Click here for fan specifications and sizing chart.
REVERSE True
BLADE STYLE Straight
INRUSH CURRENT (AMPS) 13.08
# OF BLADES 10
FAN RPM 2300
FAN DIAMETER 10
OVERALL DEPTH 60
CFM 950
KIT INCLUDES (1) Mishimoto Fan
Mishimoto Lifetime Warranty
