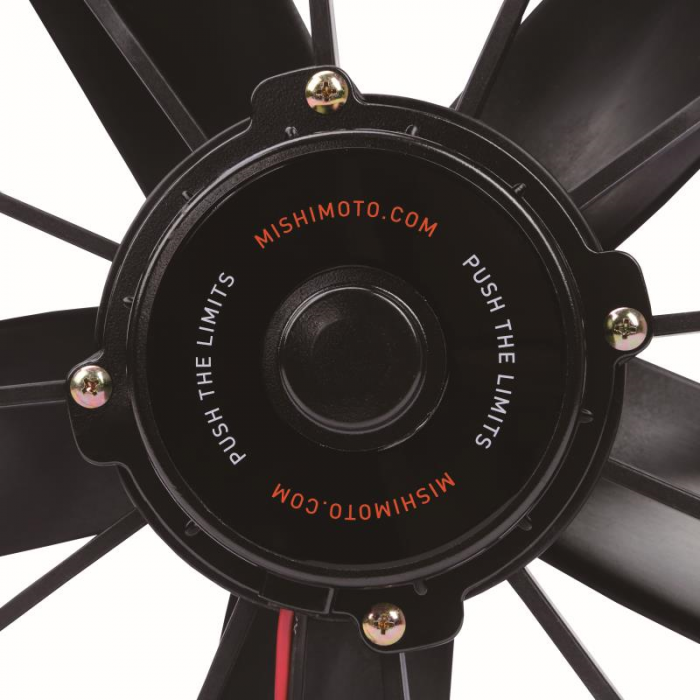

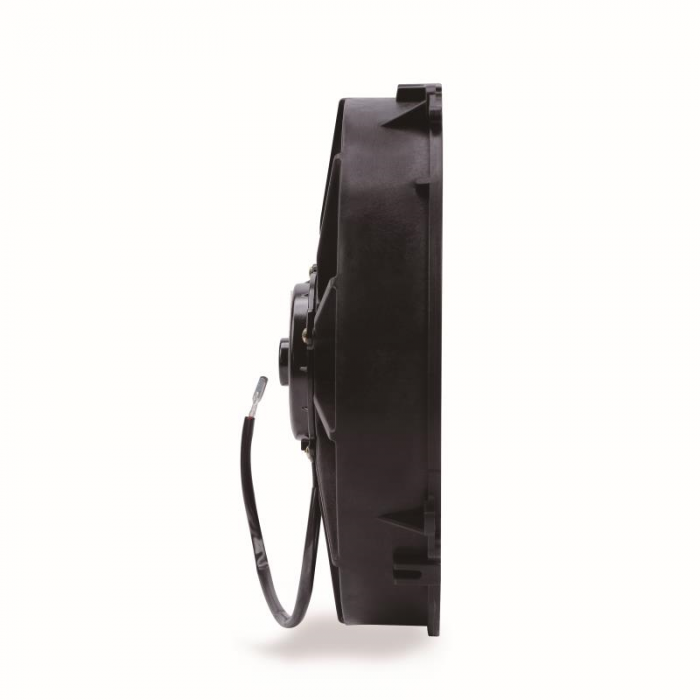

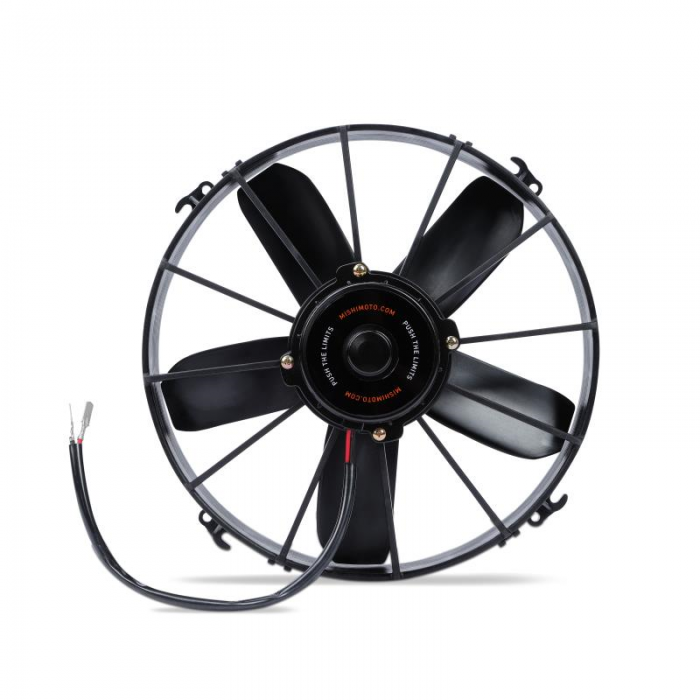

Mishimoto Race Line, High-Flow Fan, 10"
by Mishimoto
Save 15%
Original Price
$367.19 NZD
Current Price
$312.11 NZD
SKU misMMFAN-10HD
Buy now pay later,no extra cost!
Payments from $31.21 with
Enjoy now. Pay Later. Interest free. Learn More
Provide your radiator with the maximum amount of airflow with our new 10" Race Line fan. Our Race Line fans were designed for heavy-duty applications where a Slim Line fan just won't cut it. However, this robust fan is still thin enough to fit between your engine and radiator in most applications and provides 1600 CFM of airflow to cool the largest and most powerful of engines! For universal installation, use the Mishimoto Electric Fan Mounting Kit.
Features:
- High-flow fan provides increased airflow
- Compact design with a housing diameter of 11" and an overall thickness of 3.85" provides sufficient clearance in the engine bay
- Universal fitment
- Many sizes available
- Mishimoto Lifetime Warranty
Specifications:
| TYPE OF ENDS | Female Snap-Plug Terminal |
| MATERIAL | Plastic |
| AIR TEMP WHILE TESTED | 72°F |
| COLOR | BK |
| NORMAL CURRENT (AMPS) | 10 |
| VOLTS | 12 |
| HOUSING DIAMETER | 10.9" |
| OVERALL THICKNESS | 3.85" |
| TECH SPECS AND SIZING | Click here for fan specifications and sizing chart. |
| REVERSE | False |
| BLADE STYLE | Straight |
| # OF BLADES | 5 |
| FAN RPM | 3000 |
| FAN DIAMETER | 10" |
| CFM | 1600 |
| KIT INCLUDES | (1) Mishimoto Fan Mishimoto Lifetime Warranty |
