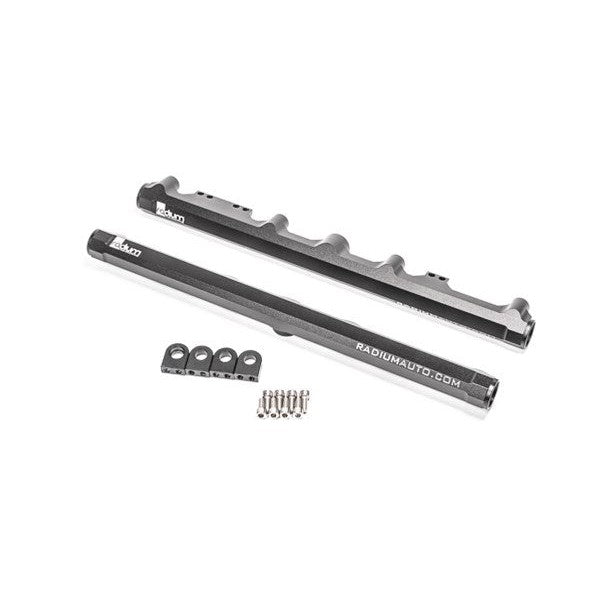

Radium Fuel Rail - Toyota 2UZ-FE
Buy now pay later,no extra cost!
Payments from $53.64 with
PORTS AND FITTINGS
The fuel rail ports are tapped for 8AN ORB.
Appropriate fittings must be selected based on the specific application. Ample space around the fuel rail port(s) is necessary for larger accessories such as fuel pressure regulators, fuel pressure gauges, and fuel pulse dampers. To verify clearance, the dimensional drawings on the product pages can be used as a reference guide.
COMPATIBILITY
02-09 Toyota 4Runner
99-09 Toyota Tundra
98-11 Toyota Land Cruiser
00-09 Toyota Sequoia
02-09 Lexus GX470
98-07 Lexus LX470
OVERVIEW
Manufactured with 0.7" large internal bores, the Radium Engineering fuel rails can support all necessary engine power requirements. The modular mounting feet make these fuel rails compatible with the early non VVT-i intake manifold (below)
and the late model VVT-i intake manifold (below).
INJECTORS
The machined injector ports are compatible with 11mm upper injector O-rings.
The fuel rails are compatible with OEM fuel injectors (or equivalent).
PORTS
Each fuel rail has three 8AN ORB (3/4"-16) ports.
Adapter fittings and fuel hose will need to be purchased separately.
FEATURES
-Anodized surface finish for wear and corrosion resistance
-Lighweight aluminum construction
-Inner bore diameter: 0.7 inch
-Reuses thermal insulating spacers
-No special tools required for installation
