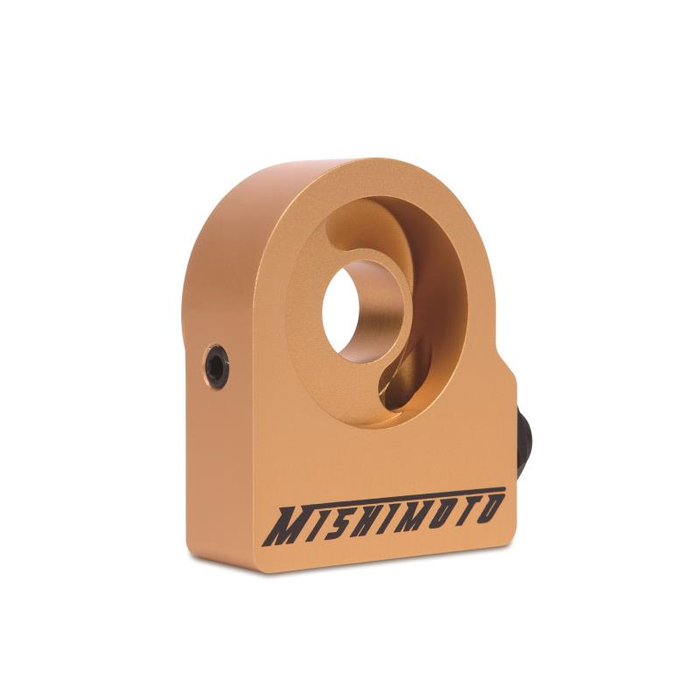

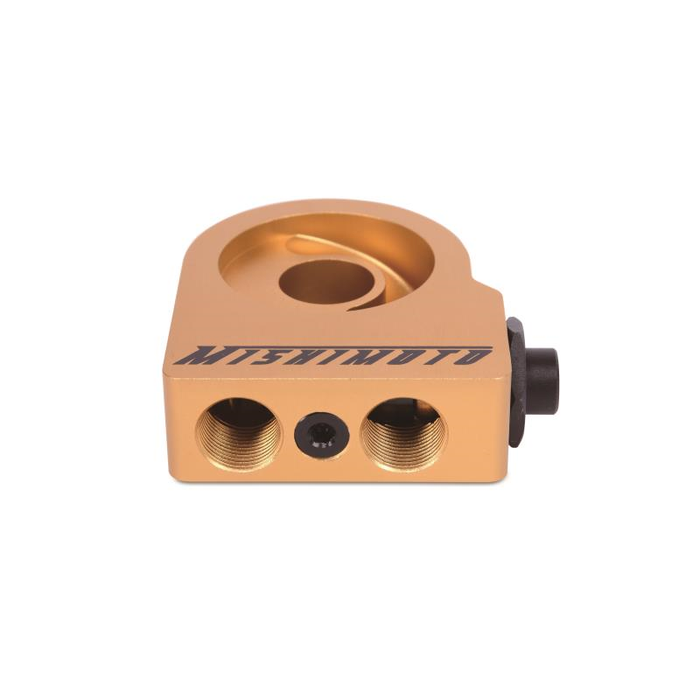

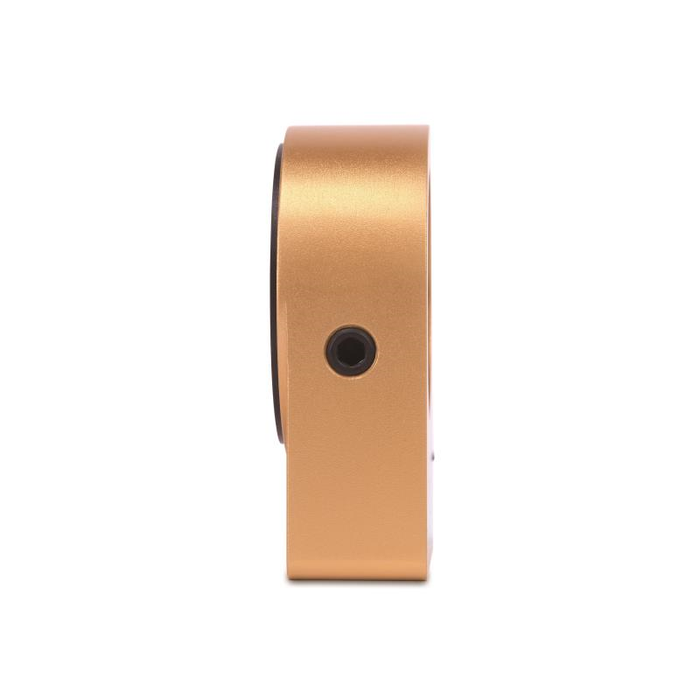

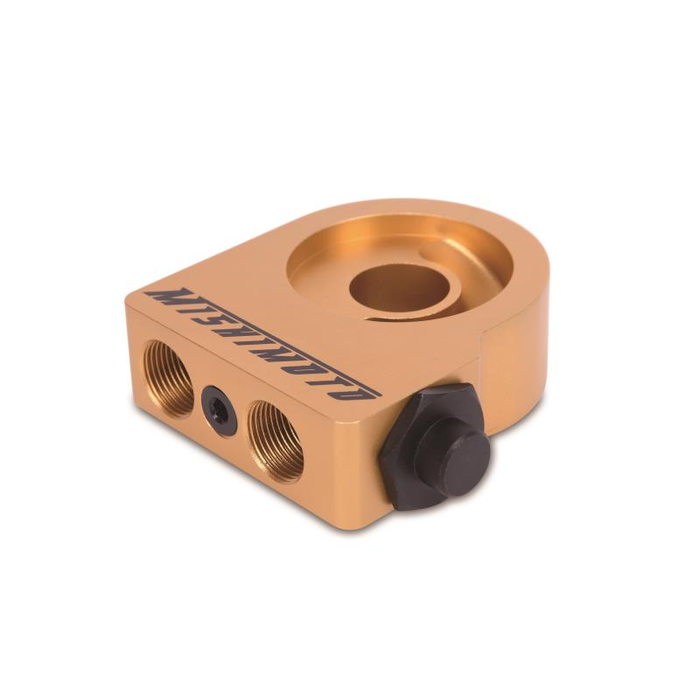

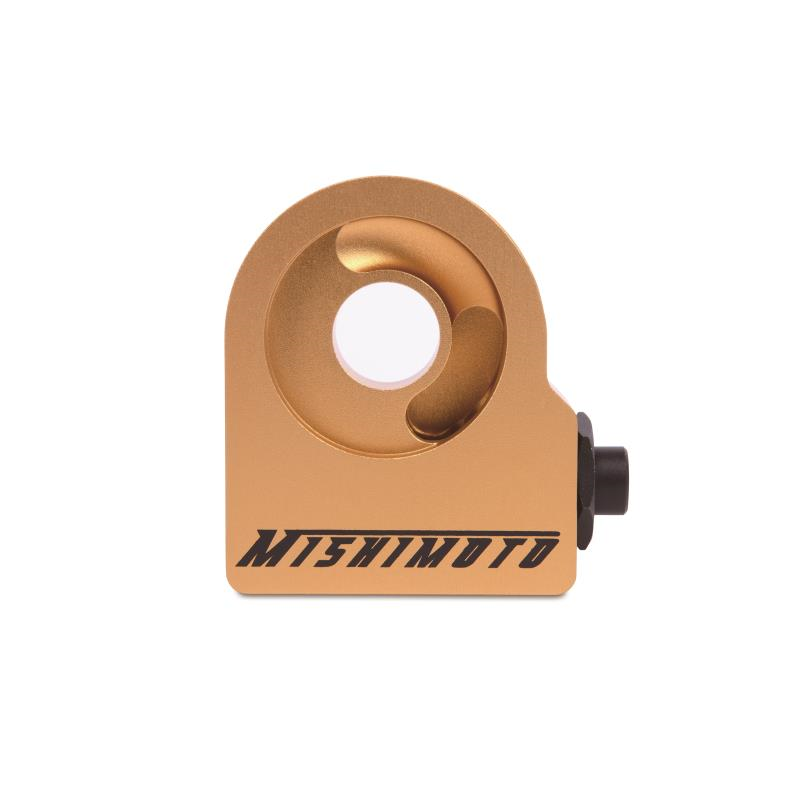

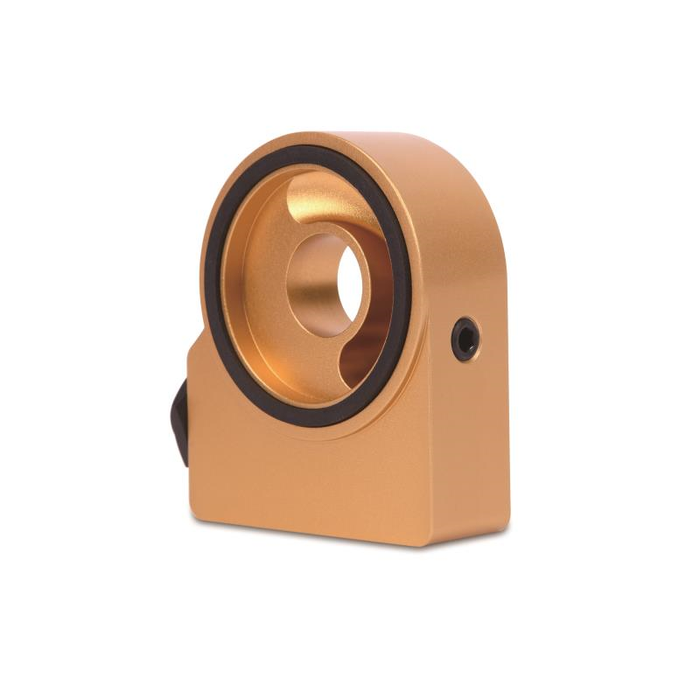

Mishimoto Thermostatic Oil Sandwich Plate
by Mishimoto
Save 15%
Original Price
$391.66 NZD
Current Price
$332.91 NZD
SKU misMMOP-SPT
Buy now pay later,no extra cost!
Payments from $33.29 with
Enjoy now. Pay Later. Interest free. Learn More
The Mishimoto Thermostatic Oil Sandwich Plate is a lightweight, high-flow sandwich plate built from 6061 aluminum. The built-in thermostat prevents oil flow to the cooler until the engine oil reaches activating temperature, allowing for both a faster warmup at startup and extra oil system protection in cold climates. The included 185°F (85°C) thermostat can be changed with a 160°F (71°C) or 200°F (93°C) unit, adding unparalleled control over your desired engine oil operating temperature. Also includes a 1/8" NPT threaded hole on the side for oil sensors.
Features:
- 6061 aluminum, CNC-machined
- 1/8" NPT port (with plug) for sensors/oil feed/etc.
- Built-in thermostat (185°F / 85°C)
- Square O-ring design
- Mishimoto Lifetime Warranty
Purchase Includes:
- (1) Thermostatic Oil Sandwich Plate
- (1) Rubber O-ring
- (1) Built-in Thermostat (185°F / 85°C)
- (1) Black 1/8" NPT Plug
- Mishimoto Lifetime Warranty
Product Specs:
| Material | 6061 Aluminum |
| Caution | It is the installer's responsibility to check all thermostat plugs, NPT plugs, line fittings, and other connections to assure they are fully tightened before operating the vehicle. Mishimoto recommends that you check all connections at regular intervals, especially during the first few miles after installation. For additional technical information, contact sales@mishimoto.com. |
| Overall Height | 4.02" |
| Overall Length | 3.11" |
| Overall Width | 1.18" |
| Port Sizes | (2) M20 x 1.5 Ports |
