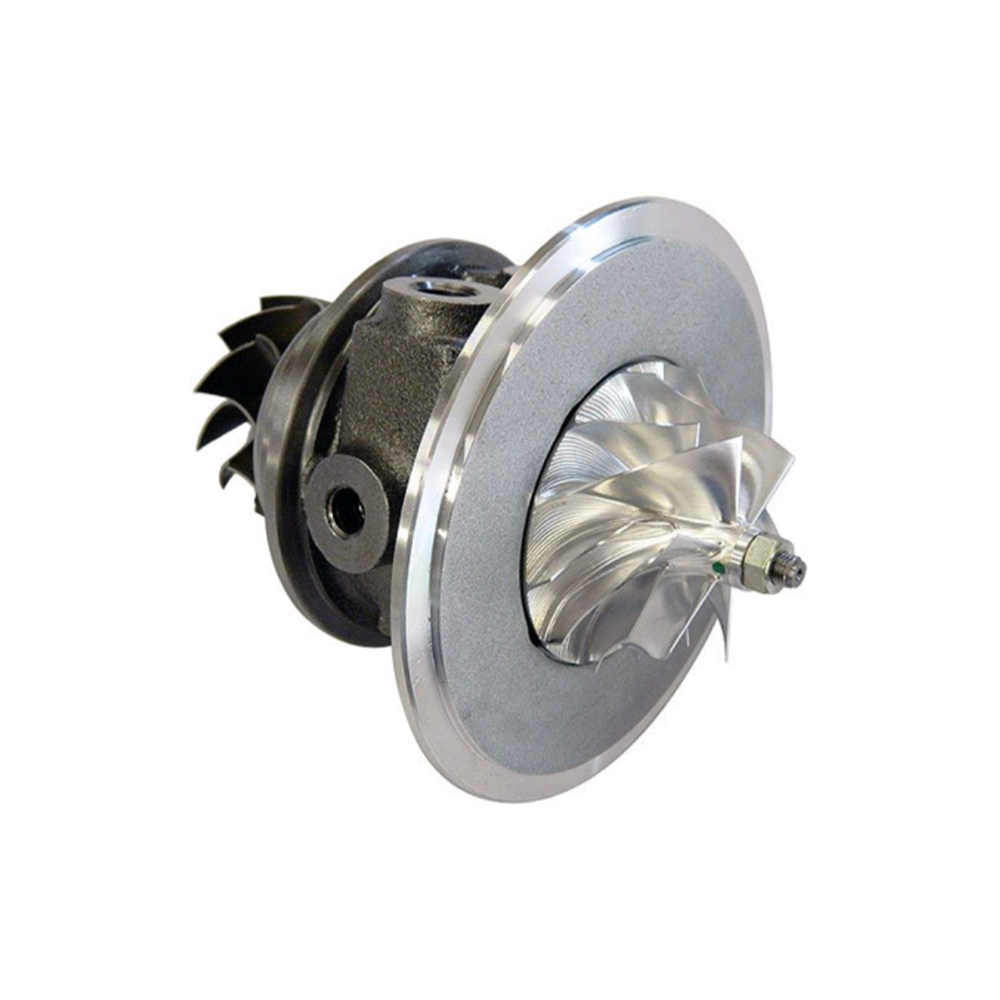

BorgWarner Cartridge SX S200SX 55.8/56mm

$2,111.46 NZD
SKU 176637
Buy now pay later,no extra cost!

Payments from $211.14 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist
BorgWarner S200SX Cartridge

BorgWarner S200SX Key Cartridge Features
  • Twin hydrodynamic journal bearings
  • Extended Tip Technology Compressor Wheel
  • Available Twin scroll turbine housing
  • Available adjustable compressor and turbine housing orientation
  • Cartridge assemblies include bearing housing, bearings, shaft, compressor wheel, turbine wheel. Does NOT include compressor and turbine housings.
BorgWarner S200SX Cartridge 176637

Features:
  • Comp Wheel OD (in): 3.00
  • Comp Wheel Inducer (in): 2.20
  • Comp Wheel Inducer (mm): 55.8
  • Turbine Wheel OD (mm): 70
  • Turbine Wheel Exducer (in): 2.420
  • Turbine Wheel Exducer (mm): 61

BorgWarner S200SX Cartridge Models

BorgWarner S200SX4 Compressor Map

BorgWarner S200SX Turbine Options

Additional Informations:

Weight 11 lbs
Dimensions 8 × 6 × 6 in
Brand BorgWarner
