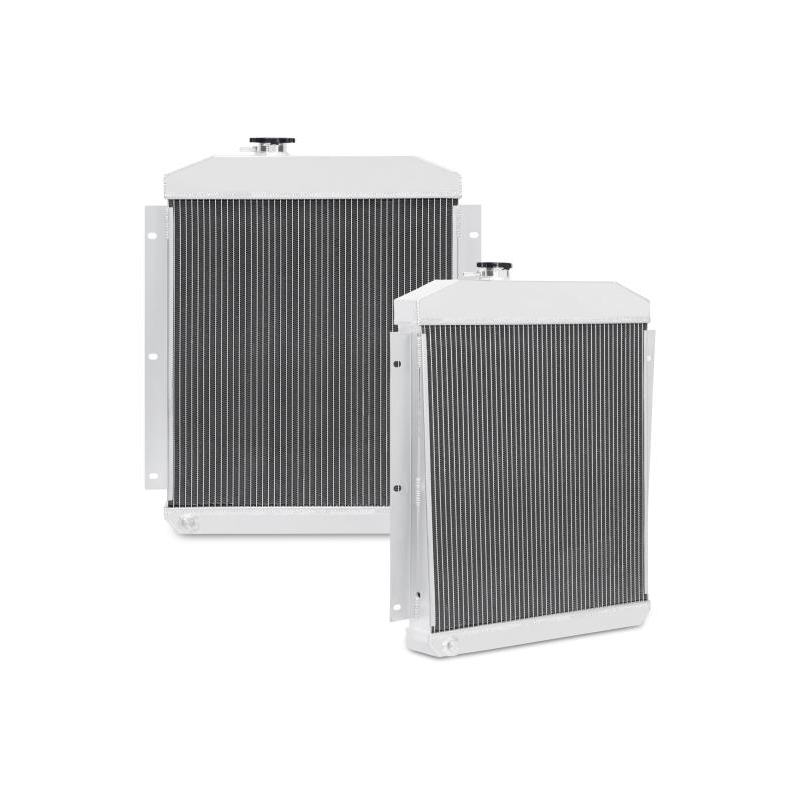

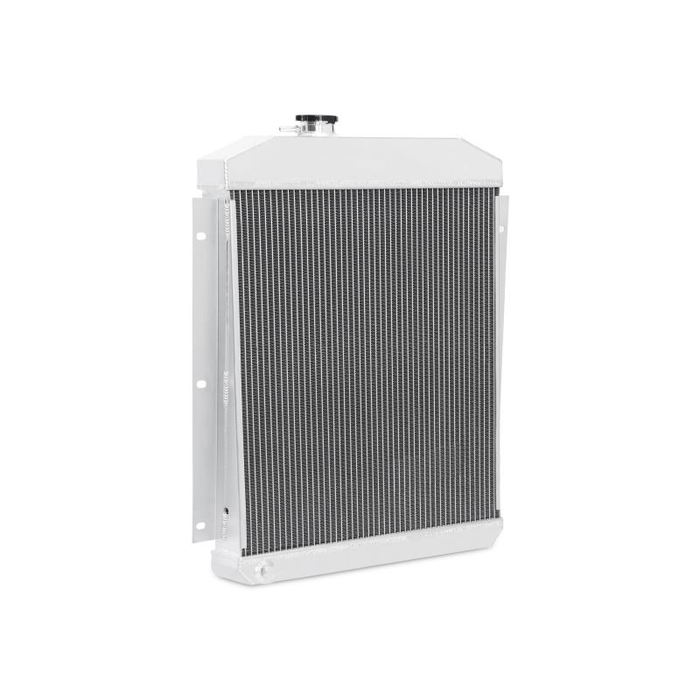

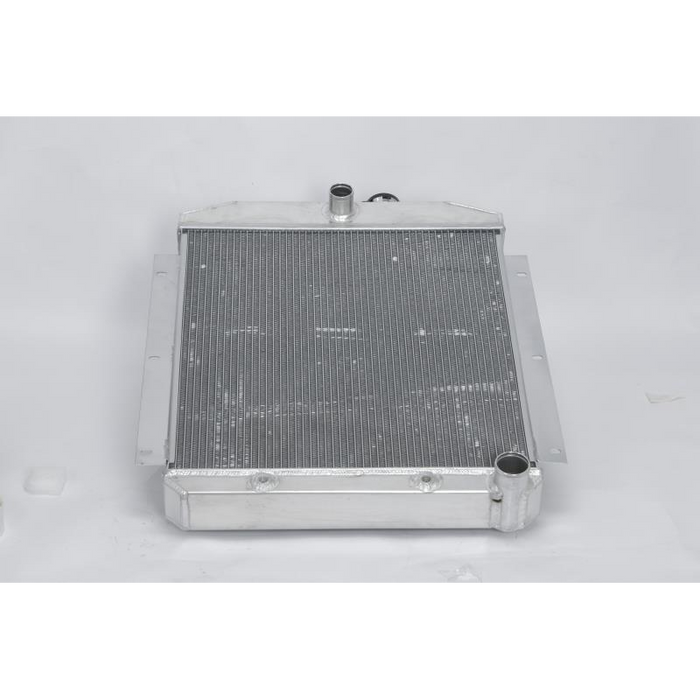

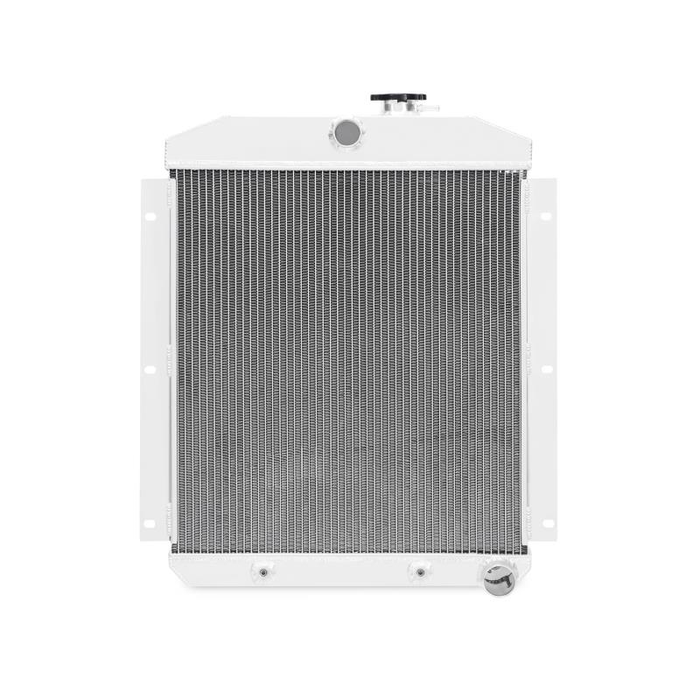

Mishimoto 3-Row Performance Aluminum Radiator, Fits Chevrolet 3100 Series Truck Inline 6 1947?????????1954
Buy now pay later,no extra cost!
Payments from $88.43 with
If you're looking to upgrade your Chevy 3100 parts, look no further. The Mishimoto 1947–1954 Chevrolet 3100 Series Truck Inline 6 X-Line Performance Aluminum Radiator provides your car with enhanced reliability, improved cooling efficiency, and is an ideal upgrade for the brittle stock radiator. Whether you use your classic for daily driving or take it to the track, many people overlook the importance of installing an upgraded radiator in their engine. A stock radiator cannot handle the heat that comes along with having a great deal of horsepower.The Mishimoto Chevrolet 3100 Series Truck X-Line Aluminum Radiator is manufactured using durable aircraft-quality aluminum end tanks, precision TIG-welded to an efficient brazed aluminum core. The inlet and outlets provide precise leak-free connections. This Chevy 3100 performance radiator also includes a Magnetic Oil Drain Plug, which effectively removes metal fragments circulating in the cooling system. As with all our aluminum radiators, this Chevy 3100 radiator includes the Mishimoto Lifetime Warranty, ensuring superior product quality and craftsmanship.
Features:
- 100% aluminum construction provides greater heat and pressure tolerance, better heat dissipation, increased durability, improved cooling efficiency, and improved structural rigidity
- 3-row core
- Increased coolant capacity directly results in better cooling efficiency and reduced engine temperatures
- Includes an internal transmission cooler to provide optimal fluid temperatures for automatic transmissions
- Billet aluminum fill neck
- Brazed aluminum core with TIG-welded end tanks
- Includes magnetic drain plug
- Mishimoto Lifetime Warranty
- Mishimoto Radiator

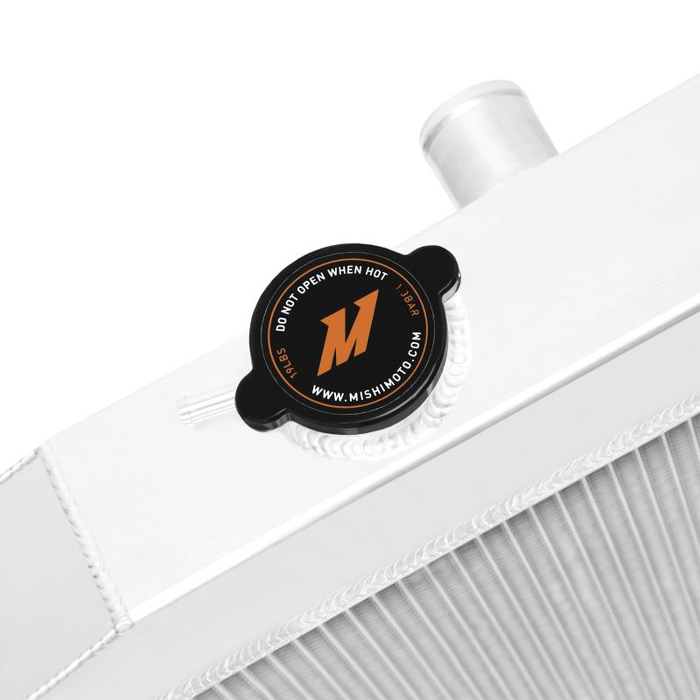

- Mishimoto Radiator Cap
- Magnetic Drain Plug
- Mishimoto Lifetime Warranty
Vehicle Specifications:
| Engine Codes | 216ci (3.5L) I6 236ci (3.9L) I6 |
| Fits | 1947-1954 GM Truck |
Product Specifications:
| Material | Aluminum |
| Overall Height | 22.6" |
| DPI | 5100 |
| Drain Plug Thread Size | (M12) x 1.5 |
| Overall Length | 25.8" |
| Tank Wall Thickness | 0.08" |
| Outlet | 1.75" |
| Rows | 3 |
| Inlet | 1.5" |
| Coolant Capacity | 4.24 |
| Dual Pass | False |
| Overall Width | 4.9" |
| Core Length | 19.2" |
| Core Height | 20.7" |
| Core Thickness | 2.5" |
| Overall Length (in) | 25.80 |
| Overall Height (in) | 22.60 |
| Overall Width (in) | 4.90 |
| Rows | 3 |
