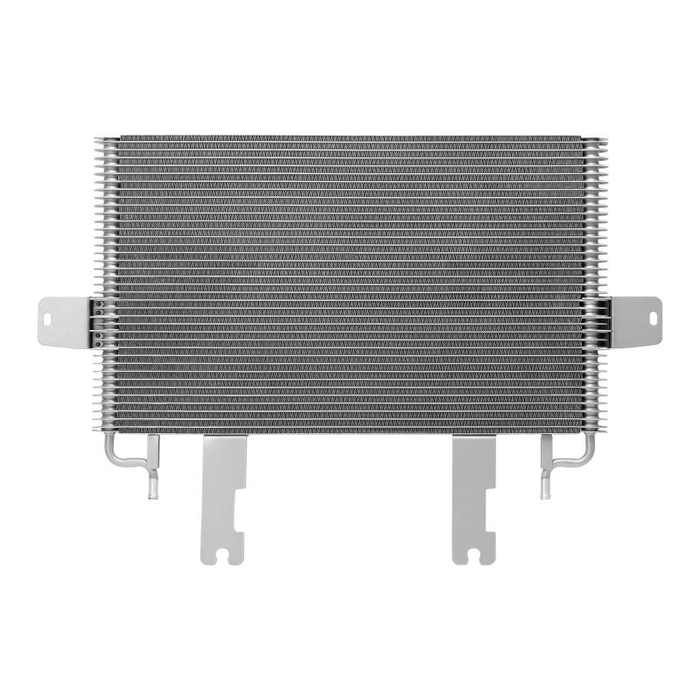

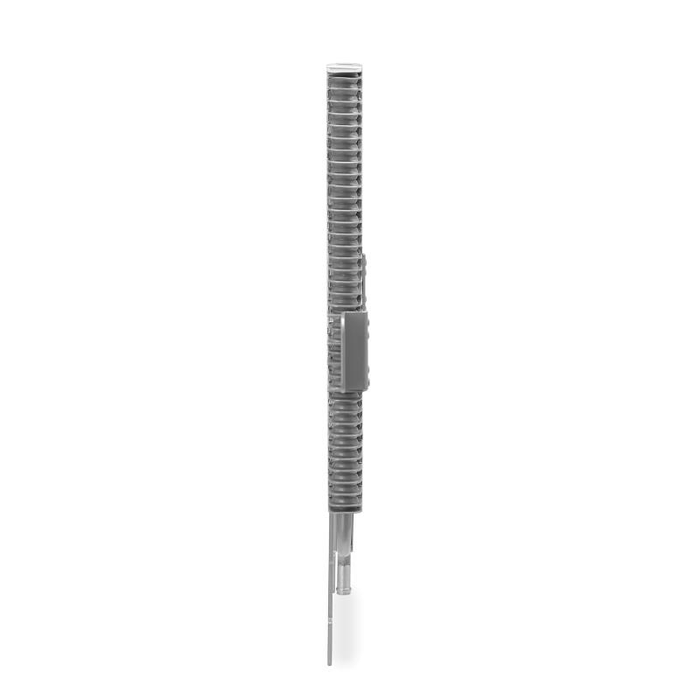

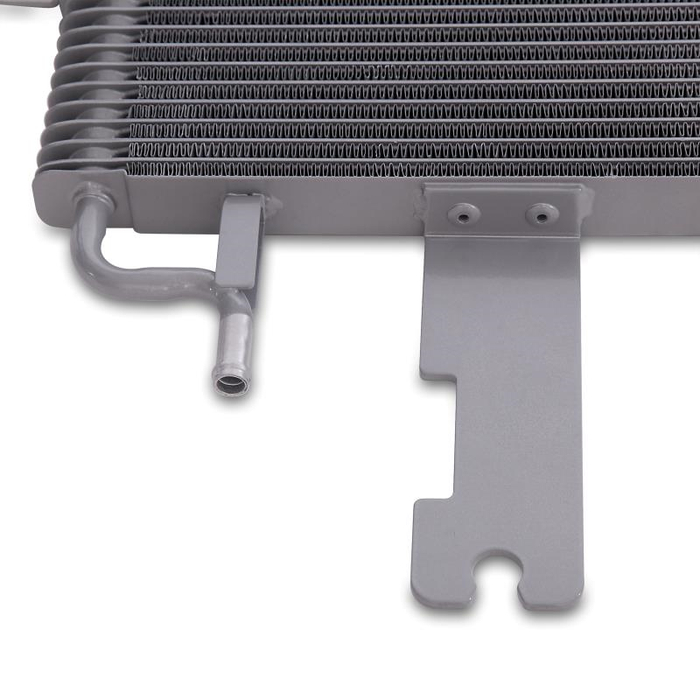

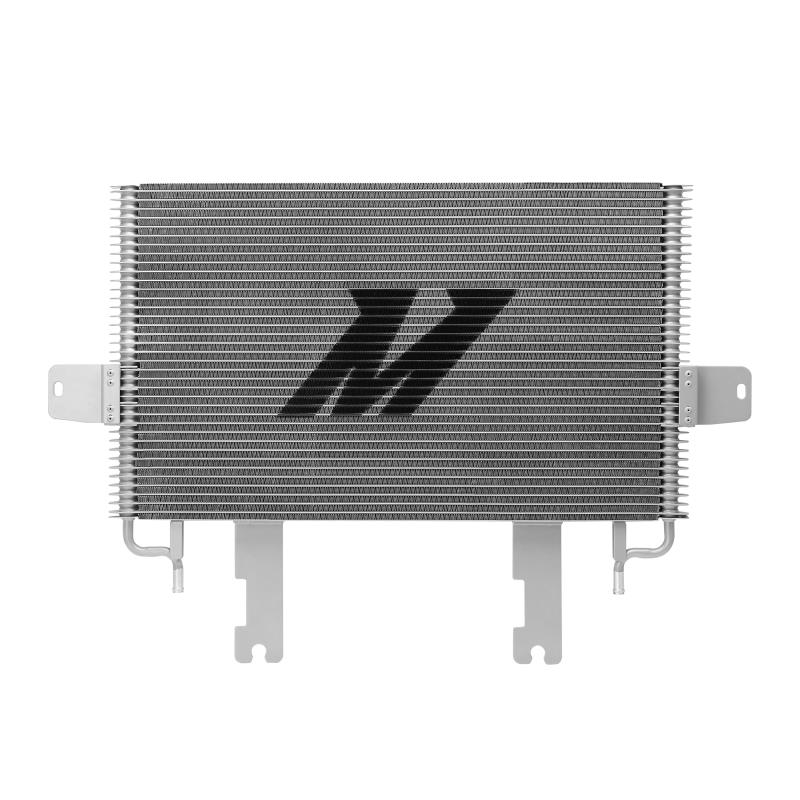

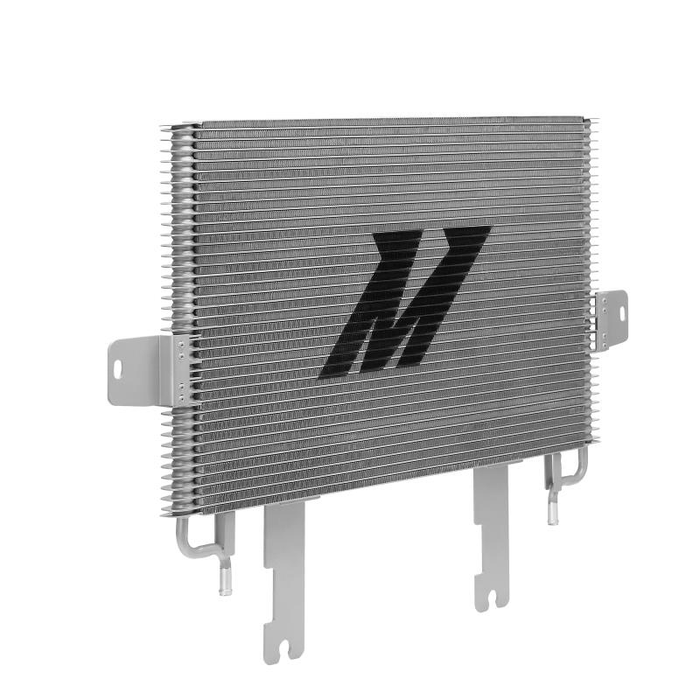

Mishimoto Transmission Cooler, Fits Ford 6.0L Powerstroke 2003 2007
Buy now pay later,no extra cost!
Payments from $97.63 with
Heavy loads are no match for a 2003–2007 6.0L Powerstroke equipped with the Mishimoto 6.0L transmission cooler. Complement your cooling system with the latest addition to Mishimoto’s 6.0L Powerstroke performance parts, the all-new 6.0L transmission cooler. The stock 6.0L Powerstroke transmission cooler does an ample job of keeping temperatures down, but as the load increases, so do transmission temps. The 37-row Mishimoto stacked-plate cooler provides a larger surface area over both of the stock coolers. Core volume is increased by a whopping 21%, and fluid capacity is increased by 1/3 qt. With the Mishimoto 6.0L transmission cooler, high transmission fluid temperatures will be the least of your worries. The increased size of this 6.0L transmission cooler provides a proven +10°F drop in transmission fluid temperature! No modifications are necessary for installation and, just like all Mishimoto 6.0L Powerstroke parts, this cooler comes with the Mishimoto Lifetime Warranty.
Features:
- Direct fit for the 2003–2007 Ford 6.0L Powerstroke
- Proven +10°F (+5.6°C) drop in transmission fluid temperature with no additional fluid pressure drop
- No modification necessary for installation, functions with all stock equipment
- 37-row stacked-plate fluid cooler provides larger surface area over even the largest stock 31-row transmission cooler
- Transmission cooler core has a 21% increase in core volume compared to the factory 31-row transmission cooler
- Increases transmission fluid capacity by 1/3 qt
- Mishimoto Lifetime Warranty
Purchase Includes:
- (1) Mishimoto Stacked-Plate Transmission Cooler
- Mounting Hardware
- Mishimoto Lifetime Warranty
Product Specifications:
| SKU | MMTC-F2D-03SL |
| Material | 6061 Aluminum |
| Core Height | 16.13" |
| Rows | 37 |
| Cooler Construction | Stacked-plate |
| Core Thickness | 1.25" (32 mm) |
| Core Length | 25.25" |
| Tank Wall Thickness | .08" (2mm) |
| Temp Difference | +10°F (+5.6°C) drop in transmission fluid temperature |
| Overall Height | 23.5" |
| Overall Length | 34" |
| Overall Width | 1.34" |
| Core Size | 25.25" x 16.13" x 1.25" (642 mm x 410 mm x 32 mm) |
| Inlet | .5" (13 mm) |
| Outlet | .5" (13 mm) |
| Also Fits | 2003–2007 Ford F-250 w/ 6.0L Powerstroke 2003–2007 Ford F-350 w/ 6.0L Powerstroke 2003–2007 Ford F-450 w/ 6.0L Powerstroke Also fits 1999–2003 Ford Superduty trucks with the 7.3 engine, however, the transmission cooler lines must be changed to ½" OD prior to installation. |
