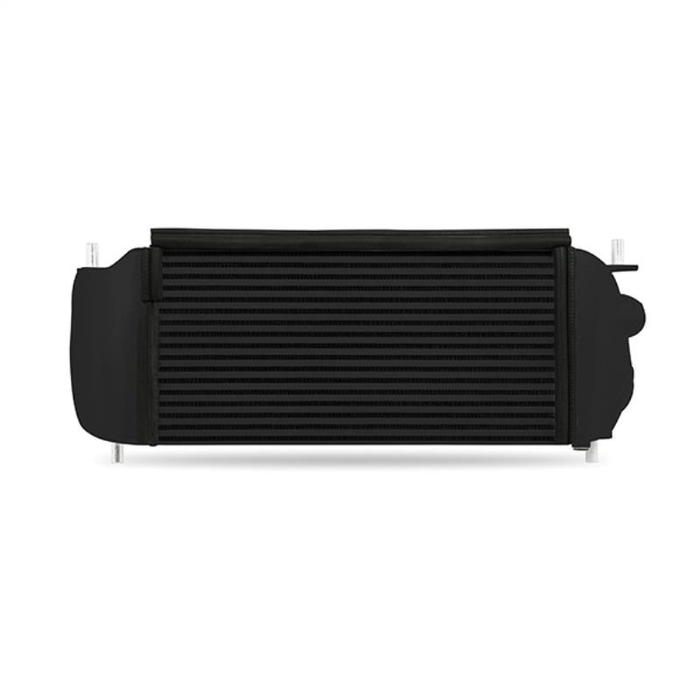

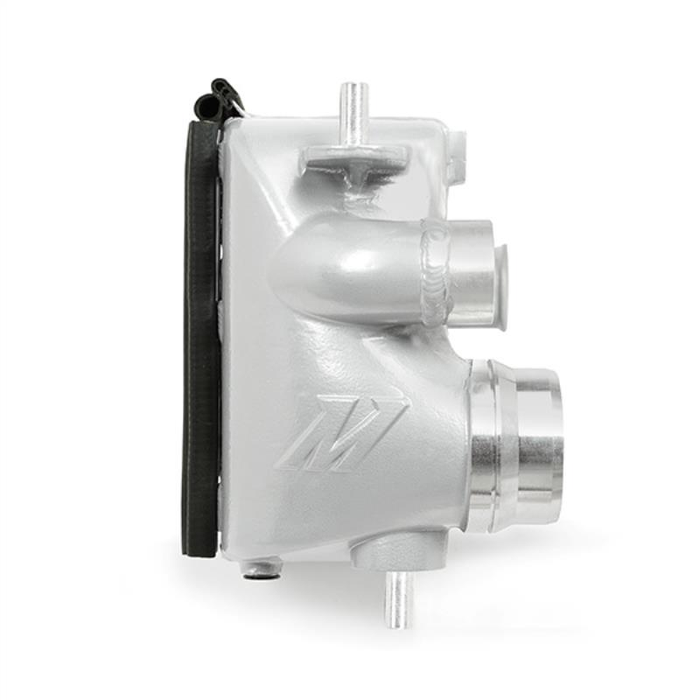

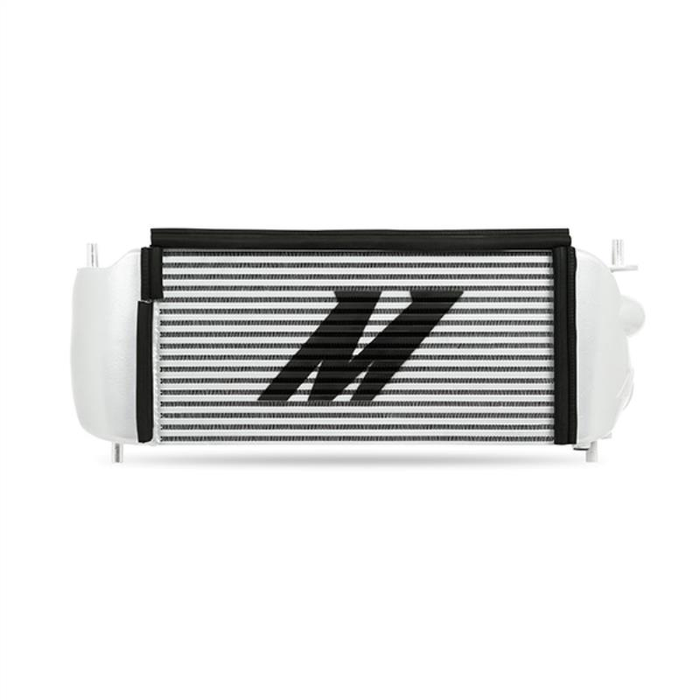

Mishimoto Performance Intercooler Kit, fits Ford F-150 3.5L EcoBoost 2015-2016
Buy now pay later,no extra cost!
Payments from $416.30 with
Mishimoto has developed a direct-fit 2015–2016 3.5L F-150 EcoBoost Intercooler & Pipe kit that allows owners to maximize the performance potential of their F-150.
Our kit replaces the weak and unattractive plastic piping with free-flowing, durable aluminum piping and silicone boots with DuraCore™ technology. The 24% larger volume of our pipes allows your 2015–2016 3.5L F-150 EcoBoost to breathe free and make the most of its two turbochargers. DuraCore™ boots coupled with constant-tension worm gear clamps provide superior strength and blowout resistance, ensuring boost always makes it to its destination.
Combine our piping with the Mishimoto 2015+ F-150 EcoBoost Intercooler to unleash everything the twin-turbo 3.5L EcoBoost engine is capable of. Our intercooler increases core volume by 77% over stock and external fin surface area by 163%. With cast end tanks and bar-and-plate construction, our intercooler combines strength and power for an all-around upgrade over stock.
This kit is available with a black or silver intercooler and wrinkle black or polished pipes. As with all Mishimoto products, this 2015–2016 3.5L F-150 EcoBoost Intercooler & Pipe kit is backed by our Lifetime Warranty.
Features:
- Direct fit for 2015–2016 Ford F-150 3.5L EcoBoost
- 24% total internal volume increase over the stock intercooler pipes
- Cold-side pipe includes CNC quick-disconnect with pre-installed O-ring and spring clip for quick and easy installation
- Additional port on cold-side pipe can be drilled and tapped for methanol injection or sensors
- Includes Mishimoto Silicone Boots with DuraCore™ technology for superior resistance to heat, pressure, fuel, and oil
- Constant-tension worm gear clamps keep a strong grip as pipes and boots expand and contract
- 10°F (5.5°C) reduction in intake air temp
- 77% increase in internal intercooler core volume
- 163% increase in external fin surface area
- All-aluminum, TIG-welded construction
- Fits with stock intercooler fans without modification
- Intercooler available in Sleek Silver or Stealth Black, pipes available in polished or wrinkle black powder-coated finish
- Mishimoto Lifetime Warranty

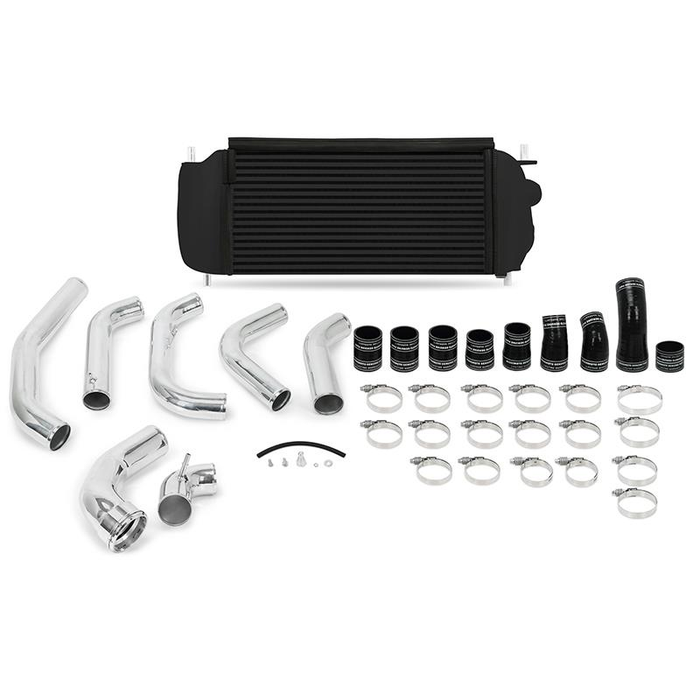

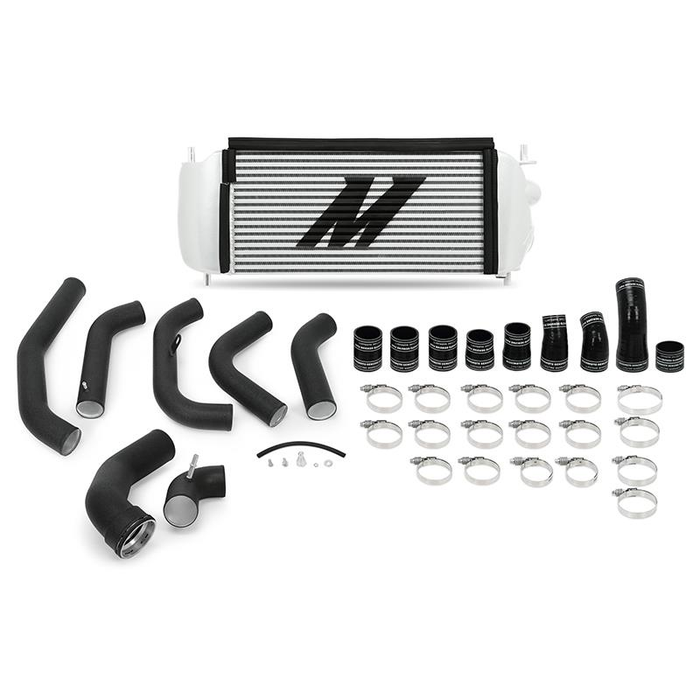

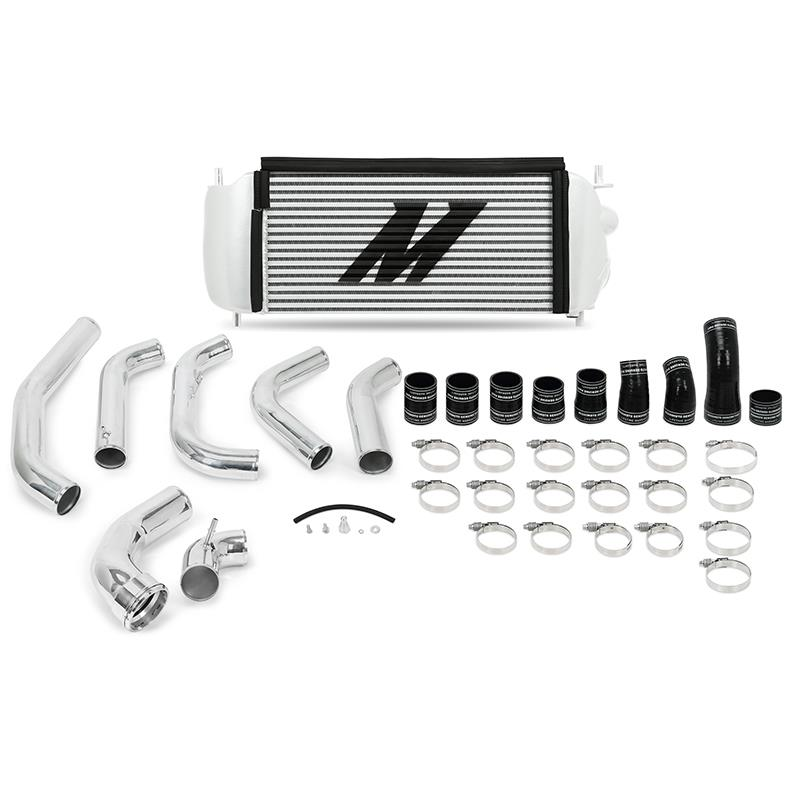

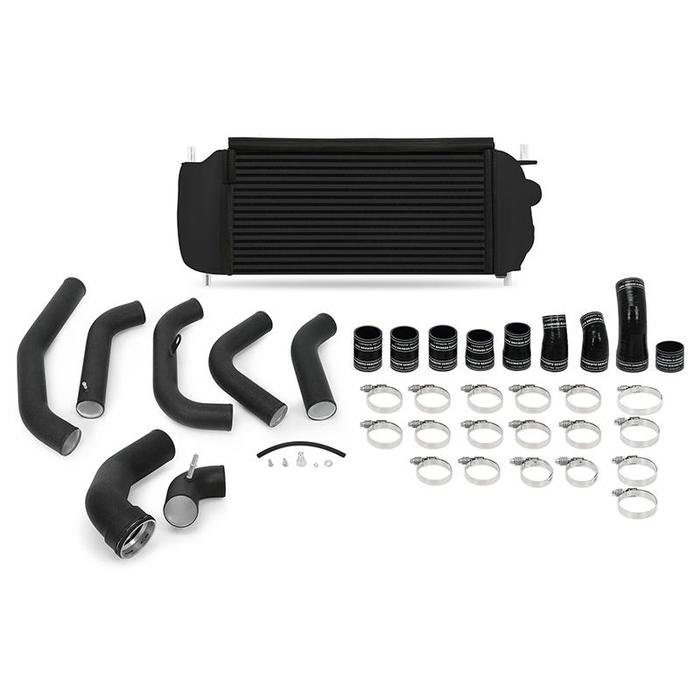

Purchase Includes:
- (1) Mishimoto Intercooler w/ Assembled Rubber Trim
- (1) Bypass Valve Bracket
- (1) Aluminum Cold-Side Intercooler Pipe w/ CNC Quick-Disconnect Flange
- (1) Aluminum Cold-Side Intercooler Pipe w/ CNC IAT Sensor Housing
- (5) Aluminum Hot-Side Intercooler Pipes
- (9) Silicone Boots w/ DuraCore™ Technology
- (18) Constant-Tension Worm Gear Clamps
- Mounting Hardware
- Bypass Valve Hardware
- Mishimoto Lifetime Warranty
Vehicle Specifications:
| Engine Codes | 3.5L EcoBoost |
| Chassis Codes | P552 |
| Fits | 2015-2016 Ford F-150 3.5L EcoBoost |
Product Specifications:
| Installation Torque Specs | 27 in-lbs (3N*M) recommended for all t-bolt and constant tension t-bolt clamps. These clamps have an operating range of 18-35 in-lbs (2-4N*M). Do not exceed the maximum torque rating of 35 in-lbs (4N*M). |
| Core Thickness | 4.7" |
| Coating | Powder Coated |
| Tank Wall Thickness | 0.157" |
| Max Rec. PSI | 50 psi |
| Outlet | 3.0" |
| Core Length | 19.6" |
| Core Height | 9.4" |
| Inlet | 2.5" |
| Overall Width | 7" |
| Overall Height | 9.5" |
| Overall Length | 29" |
| Construction | Bar-and-plate |
