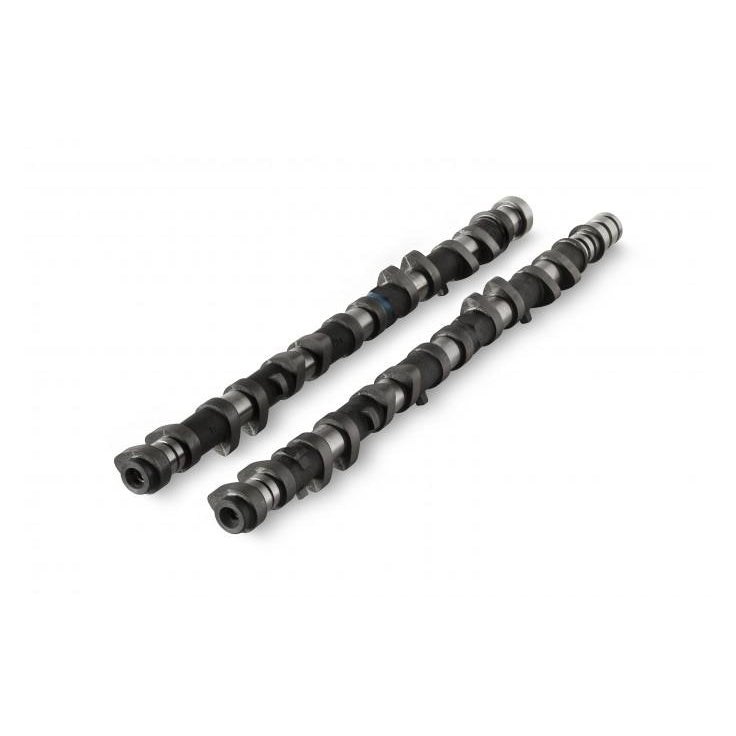

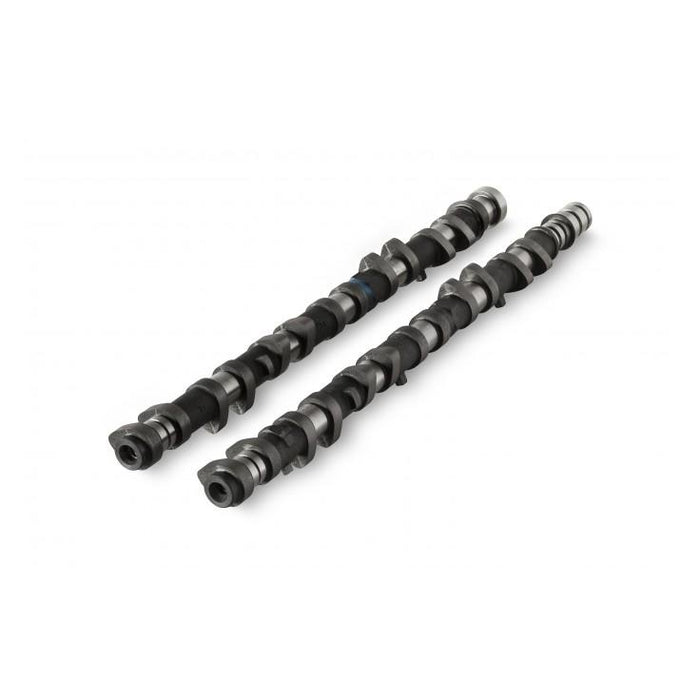

Kelford Cams V202-C Toyota Supra VVTi Billet Race Cams
Buy now pay later,no extra cost!
Payments from $129.67 with
Note: Please check availability with us before ordering.
264/272 Degrees advertised duration. 9.65mm/9.65mm lift. To suit Toyota 2JZ VVTi.
Additional Information:
264/272 Degree street / strip or track day cams for good response and midrange power. Suits up to 30lb boost and 8000 RPM with our recommended valve spring. Requires valve spring upgrade KVS02.
Camshaft Specifications:
Engine Make: | Engine Model: | Part Number: | |||||
TOYOTA | 2JZ VVTi | V202-C | |||||
Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
Exhaust: | 0.25mm | Set | COLD | at the | CAM | ||
Cam Lift: | Intake: | 9.90mm | Exhaust: | 9.90mm | |||
Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
Nett Valve Lift: | Intake: | 9.65mm | Exhaust: | 9.65mm | |||
Advertised Duration @ | 0.10mm | Intake: | 264 | Exhaust: | 272 | ||
Duration @ | 1.00mm VALVE LIFT | Intake: | 228 | Exhaust: | 232 | ||
Timing @ | 1.00mm VALVE LIFT | IVO: | EVO: | 52 BBDC | |||
IVC: | EVC: | 0 TDC | |||||
Suggested Centre Lines: | Intake: | VARI | Exhaust: | 116 | |||
VALVE | Lift @ TDC | Intake: | Exhaust: | 0.94 |
