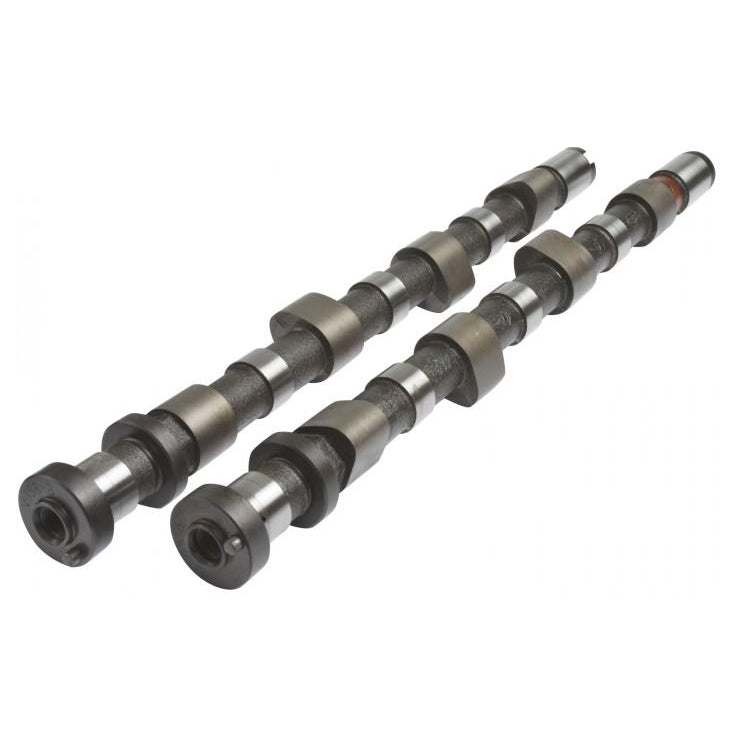

Kelford Cams V-188-C Nissan SR20-DE/T S14 & S15 NVCS Performance Cam

Save 5%
Original Price $863.19 NZD
Current Price $820.03 NZD
SKU KCV-188-C
Buy now pay later,no extra cost!

Payments from $82.00 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

280/280 Degrees advertised duration, 12.50mm/12.00mm lift.

Additional Information:

280 Degree racing cams to suit street / strip engines with a large turbo. Requires KVS93 or KVS93-BT valve springs if using over 2 bar boost.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN SR20DE/T S14 & S15 NVCS V-188-C
Valve Clearance: Intake: Set at the
  Exhaust: Set at the

Cam Lift:   Intake: 8.06mm Exhaust: 7.74mm
Rocker Ratio:   Intake: 1.55 Exhaust: 1.55
Nett Valve Lift:   Intake: 12.50mm Exhaust: 12.00mm
Advertised Duration @ 0.10mm Intake: 280 Exhaust: 280
Duration @ 1.00mm VALVE LIFT Intake: 236 Exhaust: 236
Timing @ 1.00mm VALVE LIFT IVO: 16 ATDC EVO: 53 BBDC
    IVC: 72 ABDC EVC: 3 ATDC
Suggested Centre Lines:   Intake: 134 Exhaust: 115
VALVE Lift @ TDC Intake: 0.14mm Exhaust: 1.28
