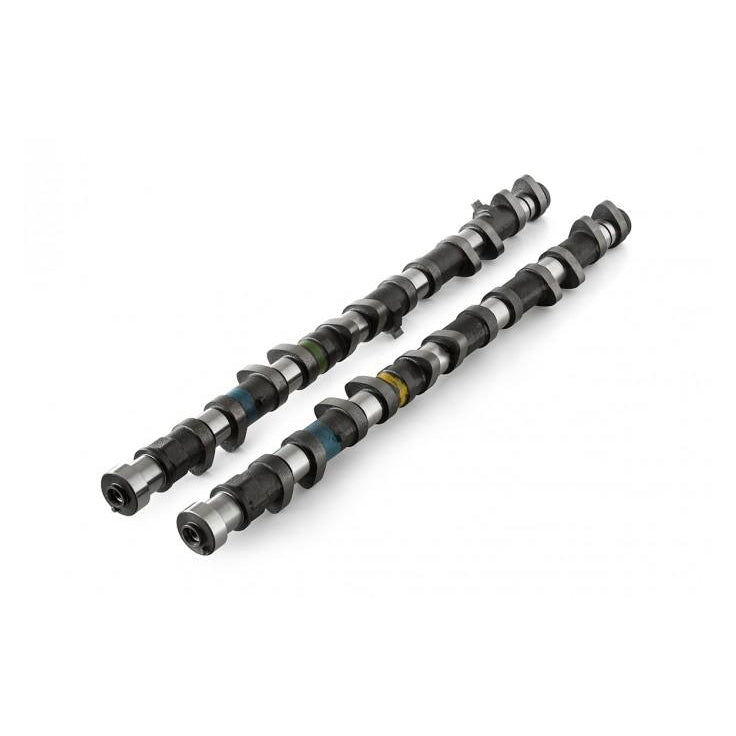

Kelford Cams T202-F Toyota Supra / 2JZ Turbo Performance Cam

Save 5%
Original Price $1,364.96 NZD
Current Price $1,296.71 NZD
SKU KCT202-F
Buy now pay later,no extra cost!

Payments from $129.67 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

282/286 Degrees advertised duration. 11.00mm/11.00mm lift. To suit Toyota Supra / 2JZ TURBO.

Additional Information:

282/286 Degree racing cams to suit engines running an E85 blend. These cams require shimless bucket or shim-under-bucket conversion.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
TOYOTA Supra / 2JZ TURBO T202-F
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 11.25mm Exhaust: 11.25mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.00mm Exhaust: 11.00mm
Advertised Duration @ 0.10mm Intake: 282 Exhaust: 286
Duration @ 1.00mm VALVE LIFT Intake: 244 Exhaust: 248
Timing @ 1.00mm VALVE LIFT IVO: 10 BTDC EVO: 64 BBDC
    IVC: 54 ABDC EVC: 4 ATDC
Suggested Centre Lines:   Intake: 112 Exhaust: 120
VALVE Lift @ TDC Intake: 2.36mm Exhaust: 1.40
