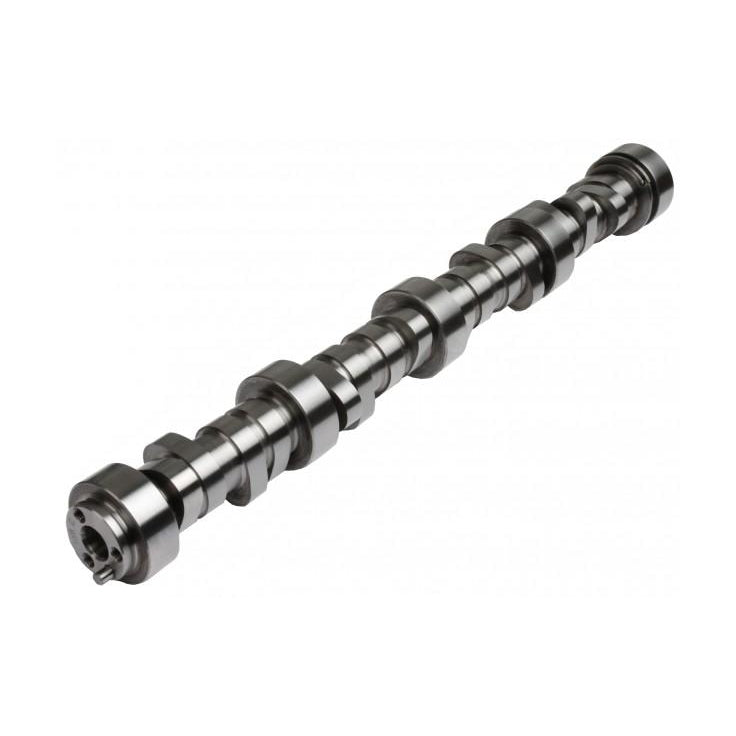

Kelford Cams HS108-C-12 Chevrolet LS1 V8 High Lift Performance Cam
Buy now pay later,no extra cost!
Payments from $80.38 with

Note: Please check availability with us before ordering.
232/238 Degrees duration @ 0.050" cam lift, .620"/.620" lift.
Additional Information:
The C12 features increased overlap to give great midrange power while retaining tune-ability. This is the cam you need if you seek an aggressive idle sound.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| CHEVROLET | LS Series V8 | HS108-C12 | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 0.365" | Exhaust: | 0.365" | |||
| Rocker Ratio: | Intake: | 1.7 | Exhaust: | 1.7 | |||
| Nett Valve Lift: | Intake: | 0.621" | Exhaust: | 0.621" | |||
| Advertised Duration @ | 0.006" | Intake: | 280 | Exhaust: | 288 | ||
| Duration @ | 0.05" CAM LIFT | Intake: | 232 | Exhaust: | 238 | ||
| Timing @ | 0.05" CAM LIFT | IVO: | 5 BTDC | EVO: | 52 BBDC | ||
| IVC: | 47 ABDC | EVC: | 6 ATDC | ||||
| Suggested Centre Lines: | Intake: | 111 | Exhaust: | 113 | |||
| CAM | Lift @ TDC | Intake: | 0.069" | Exhaust: | 0.067" | ||
