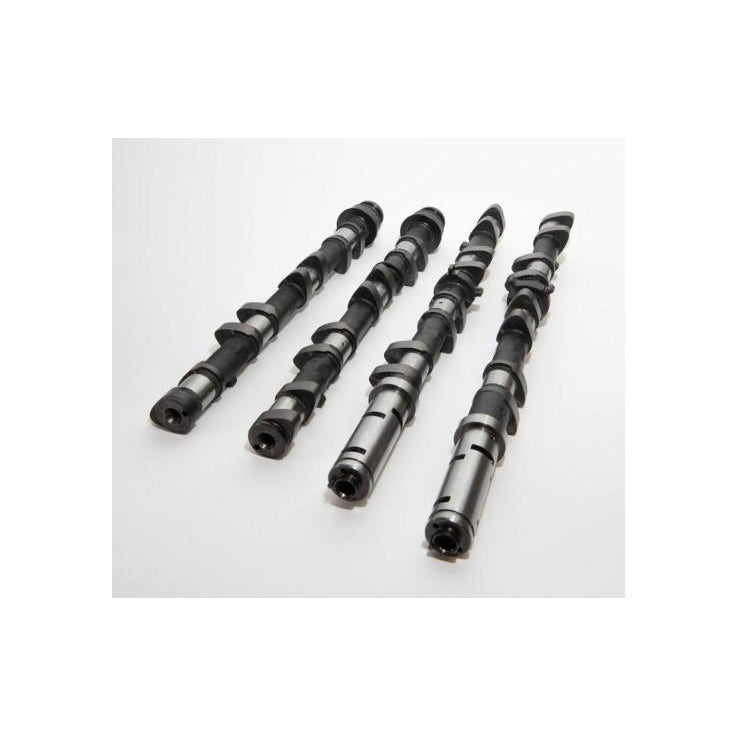

Kelford Cams 211-B Mazda MZR Billet Race Cams

$1,206.35 NZD
SKU KC211-B
Buy now pay later,no extra cost!

Payments from $120.63 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

260/242 Degrees advertised duration, 9.80mm/8.50mm lift.

Additional Information:

Stage 1 performance cams for near stock engines. Suits OEM valve spring.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
MAZDA MZR VVT 211-B
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 10.05mm Exhaust: 8.80mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.80mm Exhaust: 8.50mm
Advertised Duration @ 0.10mm Intake: 260 Exhaust: 242
Duration @ 1.00mm VALVE LIFT Intake: 221 Exhaust: 210
Timing @ 1.00mm VALVE LIFT IVO: EVO: 33 BBDC
    IVC: EVC: 3 BTDC
Suggested Centre Lines:   Intake: Vari Exhaust: 108
VALVE Lift @ TDC Intake: Exhaust: 0.73
