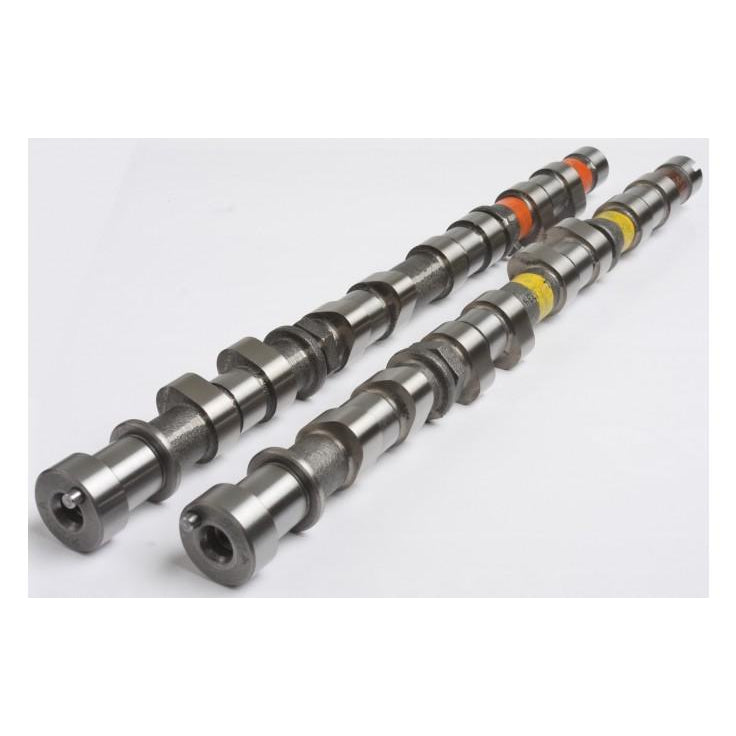

Kelford Cams 8-SLX260 Mitsubishi 4G63 EVO8 Race Cams To Suit Solid Lifters
Buy now pay later,no extra cost!
Payments from $107.98 with

Note: Please check availability with us before ordering.
260/264 Degree advertised duration, 10.50mm/10.50mm lift.
Additional Information:
High HP racing cams. These camshafts suit well built racing engines up to 35lb boost and 9000 RPM with our recommended valve springs.
Camshaft Information:
| Engine Make: | Engine Model: | Part Number: | |||||
| MITSUBISHI | 4G63 EVO 8 | 8-SLX260 | |||||
| Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.20mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 6.27mm | Exhaust: | 6.27mm | |||
| Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
| Nett Valve Lift: | Intake: | 10.50mm | Exhaust: | 10.50mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 260 | Exhaust: | 264 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 212 | Exhaust: | 220 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 1 ATDC | EVO: | 43 BBDC | ||
| IVC: | 33 ABDC | EVC: | 3 BTDC | ||||
| Suggested Centre Lines: | Intake: | 107 | Exhaust: | 113 | |||
| VALVE | Lift @ TDC | Intake: | 0.91mm | Exhaust: | 0.76 | ||
