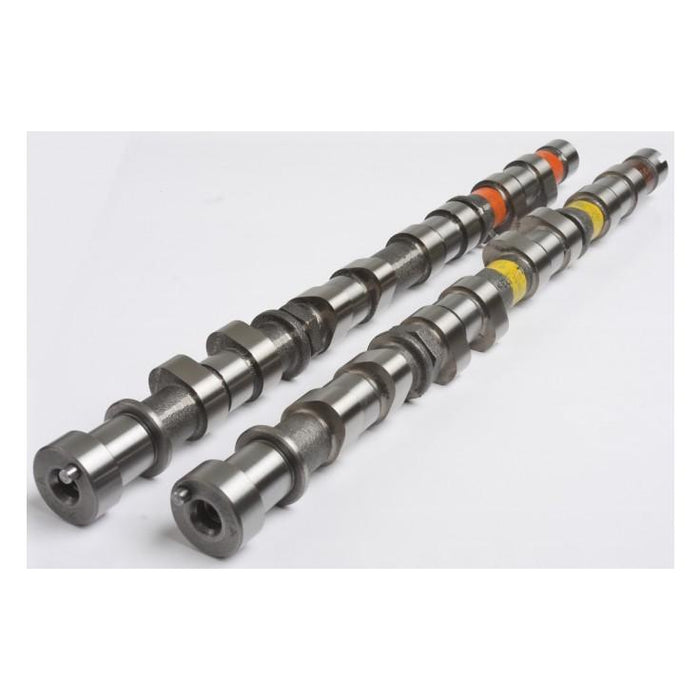

Kelford Cams 4-TX272R Mitsubishi 4G63 EVO 4-7 Performance Cam Set

$1,079.85 NZD
SKU KC4-TX272R
Buy now pay later,no extra cost!

Payments from $107.98 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

272/272 Degree advertised duration, 11.75mm/11.75mm lift

Additional Information:

The Ultimate 272 on the market, dyno proven to be the best available to date. Suited for 450-700hp, 40lb and 9500RPM with our recommended valve spring

Camshaft Information:

Engine Make:  Engine Model:  Part Number:
MITSUBISHI  4G63 EVO 4-7  4-TX272R
Valve Clearance:  Intake:  Set  at the
   Exhaust:  Set  at the

Cam Lift:     Intake:  6.79mm  Exhaust:  6.79mm
Rocker Ratio:     Intake:  1.73 Exhaust:  1.73
Nett Valve Lift:     Intake:  11.75mm  Exhaust:  11.75mm
Advertised Duration @  0.10mm  Intake:  272 Exhaust:  272
Duration @  1.00mm VALVE LIFT  Intake:  232 Exhaust:  232
Timing @  1.00mm VALVE LIFT  IVO:  9 BTDC  EVO:  49 BBDC
      IVC:  43 ABDC  EVC:  3 ATDC
Suggested Centre Lines:     Intake:  107 Exhaust:  113
VALVE  Lift @ TDC  Intake:  1.83mm  Exhaust:  1.07
