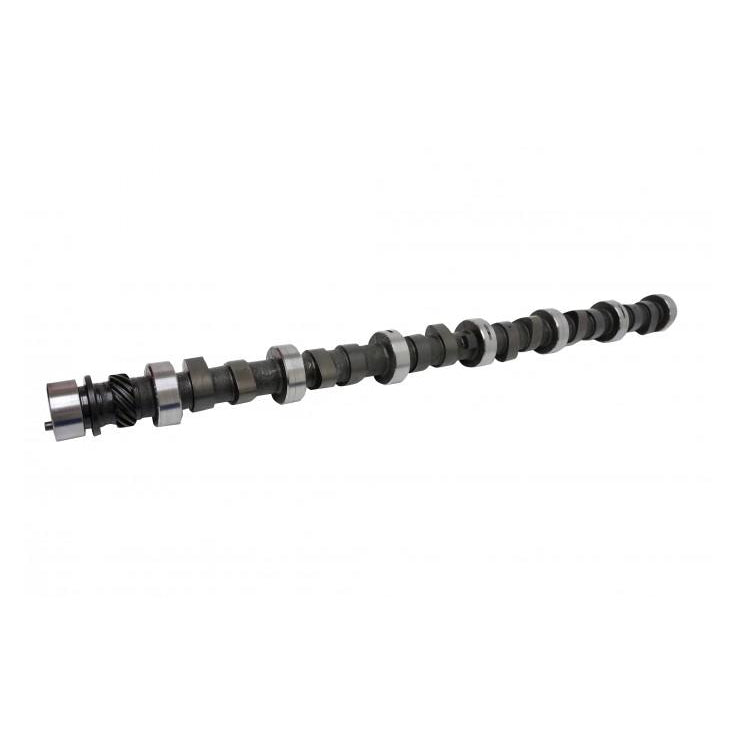

Kelford Cams 226-CS Nissan RB30 High Performance Camshaft

$1,022.35 NZD
SKU KC226-CS
Buy now pay later,no extra cost!

Payments from $102.23 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

290/292 Degrees advertised duration, 12.20mm/12.20mm lift.

Additional Information:

Solid lifter racing cam to suit street / strip or track day car. Primary lobe specification is / Degrees advertised duration, lift.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN RB30 226-CS
Valve Clearance: Intake: 0.40mm Set COLD at the VALVE
  Exhaust: 0.45mm Set COLD at the VALVE

Cam Lift:   Intake: 7.88mm Exhaust: 7.91mm
Rocker Ratio:   Intake: 1.6 Exhaust: 1.6
Nett Valve Lift:   Intake: 12.20mm Exhaust: 12.20mm
Advertised Duration @ 0.10mm Intake: 290 Exhaust: 292
Duration @ 1.00mm VALVE LIFT Intake: 247 Exhaust: 253
Timing @ 1.00mm VALVE LIFT IVO: 17.5 BTDC EVO: 56.5 BBDC
    IVC: 49.5 ABDC EVC: 16.5 ATDC
Suggested Centre Lines:   Intake: 106 Exhaust: 110
VALVE Lift @ TDC Intake: 2.97mm Exhaust: 2.87
