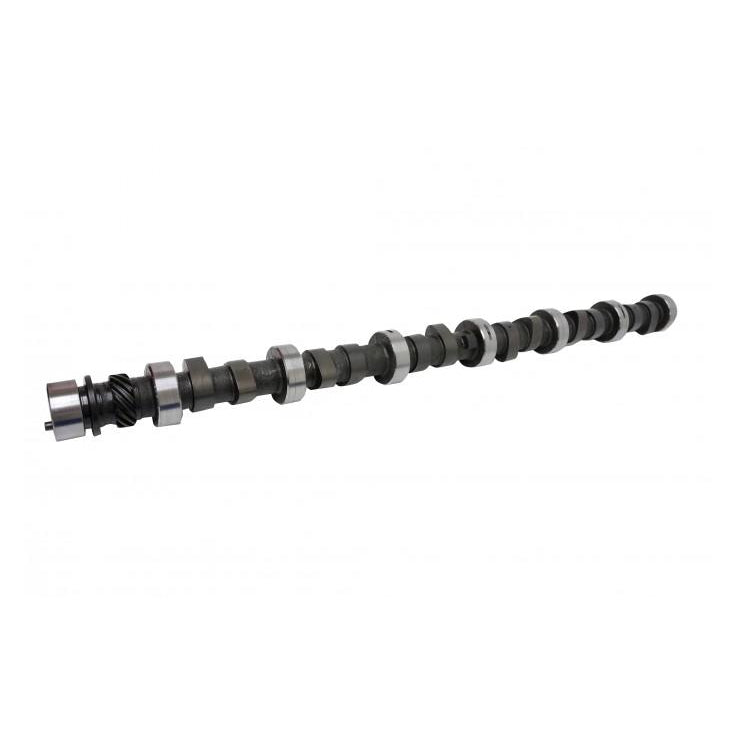

Kelford Cams 226-A Nissan RB30 High Performance Camshaft
Buy now pay later,no extra cost!
Payments from $102.23 with

Note: Please check availability with us before ordering.
260/260 Degrees advertised duration, 10.90mm/10.90mm lift.
Additional Information:
Stage 1 cam to suit stock engine, stock ECU and stock valve springs. Primary lobe specification is / Degrees advertised duration, lift.
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | |||||
| NISSAN | RB30 | 226-A | |||||
| Valve Clearance: | Intake: | Set | at the | ||||
| Exhaust: | Set | at the | |||||
| Cam Lift: | Intake: | 6.81mm | Exhaust: | 6.81mm | |||
| Rocker Ratio: | Intake: | 1.6 | Exhaust: | 1.6 | |||
| Nett Valve Lift: | Intake: | 10.90mm | Exhaust: | 10.90mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 260 | Exhaust: | 260 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 224 | Exhaust: | 224 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 4 BTDC | EVO: | 44 BBDC | ||
| IVC: | 40 ABDC | EVC: | 0 TDC | ||||
| Suggested Centre Lines: | Intake: | 108 | Exhaust: | 112 | |||
| VALVE | Lift @ TDC | Intake: | 1.40mm | Exhaust: | 1.00 | ||
