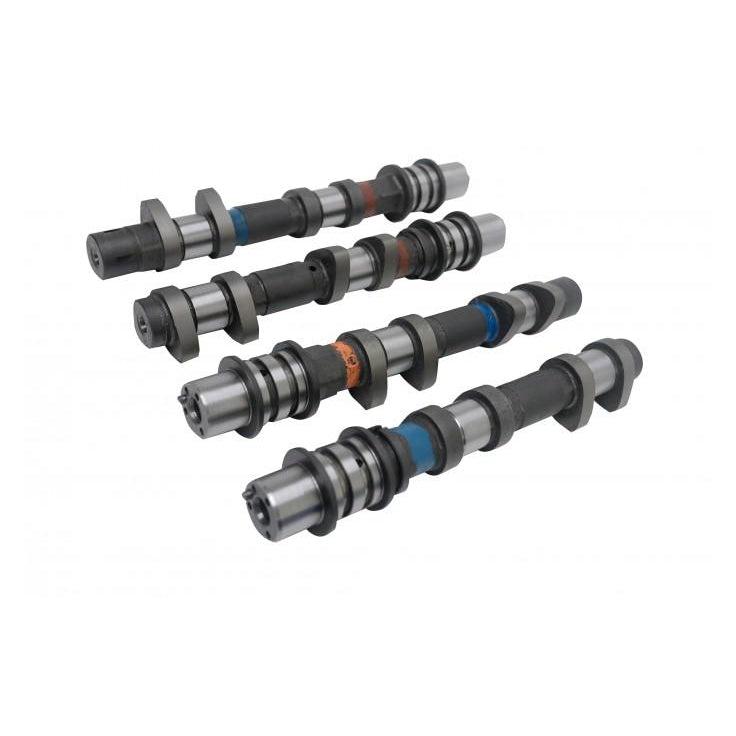

Kelford Cams 220-E Subaru EJ257B 2008 STi Stage 5 Performance Camshafts

$1,758.35 NZD
SKU KC220-E
Buy now pay later,no extra cost!

Payments from $175.83 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

292&288/294 Degrees advertised duration. 11.00mm&11.00mm/11.00mm lift.

Additional Information:

290 degree camshafts to suit high boost, high rpm Drag racing engines. Must be run with fixed timing, not suitable in variable situations.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
SUBARU EJ257B 220-E
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 11.20mm Exhaust: 11.25mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 11.00mm Exhaust: 11.00mm
Advertised Duration @ 0.25mm Intake: 292 Exhaust: 294
Duration @ 1.00mm VALVE LIFT Intake: 250 Exhaust: 252
Timing @ 1.00mm VALVE LIFT IVO: 13 BTDC EVO: 64 BBDC
    IVC: 57 ABDC EVC: 8 ATDC
Suggested Centre Lines:   Intake: 112 Exhaust: 118
VALVE Lift @ TDC Intake: 2.42mm Exhaust: 1.85
