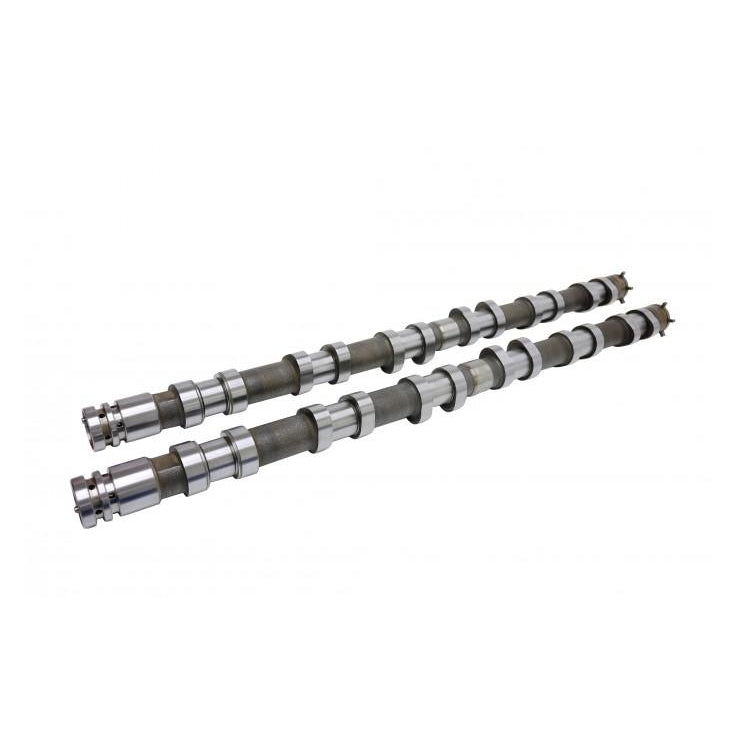

Kelford Cams 218-C Ford BA-FG SIX CYL Performance Cams
Buy now pay later,no extra cost!
Payments from $165.48 with

Note: Please check availability with us before ordering.
296/296 Degrees advertised duration, 12.40mm/12.40mm lift.
Additional Information:
These cams still use hydraulic lifters, and suit competition cars only. Use this specification cam for engines around the 1200-1800HP range. Use on fixed cam timing or mechanically limited cam advance/retard
Camshaft Specifications:
| Engine Make: | Engine Model: | Part Number: | ||||
| FORD | BA-FG Barra | 218-C | ||||
| Valve Clearance: | Intake: | Set | at the | |||
| Exhaust: | Set | at the | ||||
| Cam Lift: | Intake: | 6.05mm | Exhaust: | 6.05mm | ||
| Rocker Ratio: | Intake: | 2.05 | Exhaust: | 2.05 | ||
| Nett Valve Lift: | Intake: | 12.40mm | Exhaust: | 12.40mm | ||
| Advertised Duration @ | 0.10mm | Intake: | 296 | Exhaust: | 296 | |
| Duration @ | 1.00mm VALVE LIFT | Intake: | 250 | Exhaust: | 250 | |
| Timing @ | 1.00mm VALVE LIFT | IVO: | 12 BTDC | EVO: | 63 BBDC | |
| IVC: | 58 ABDC | EVC: | 7 ATDC | |||
| Suggested Centre Lines: | Intake: | 113 | Exhaust: | 118 | ||
| VALVE | Lift @ TDC | Intake: | 2.30mm | Exhaust: | 1.63 |
