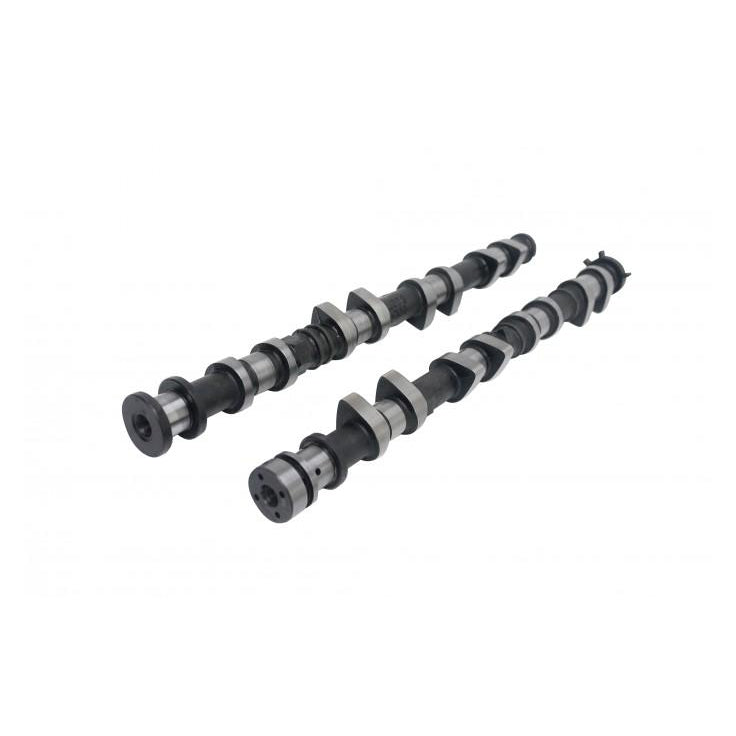

Kelford Cams 211-T2 Mazda MZR Billet Race Cams

$1,206.35 NZD
SKU KC211-T2
Buy now pay later,no extra cost!

Payments from $120.63 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

266/276 Degrees advertised duration, 10.55mm/10.55mm lift.

Additional Information:

Stage 2 cams for turbocharged MZR engines (Non-DISI). Must Use KVS17X valve spring kit. Best suited for engines above 500hp.


Camshaft Specifications:

Engine Make: Engine Model: Part Number:
MAZDA MZR VVT 211-T2
Valve Clearance: Intake: 0.30mm Set COLD at the CAM
  Exhaust: 0.35mm Set COLD at the CAM

Cam Lift:   Intake: 10.85mm Exhaust: 10.90mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.55mm Exhaust: 10.55mm
Advertised Duration @ 0.10mm Intake: 266 Exhaust: 276
Duration @ 1.00mm VALVE LIFT Intake: 228 Exhaust: 236
Timing @ 1.00mm VALVE LIFT IVO: EVO: 54 BBDC
    IVC: EVC: 2 ATDC
Suggested Centre Lines:   Intake: Vari Exhaust: 116
VALVE Lift @ TDC Intake: Exhaust: 1.19
