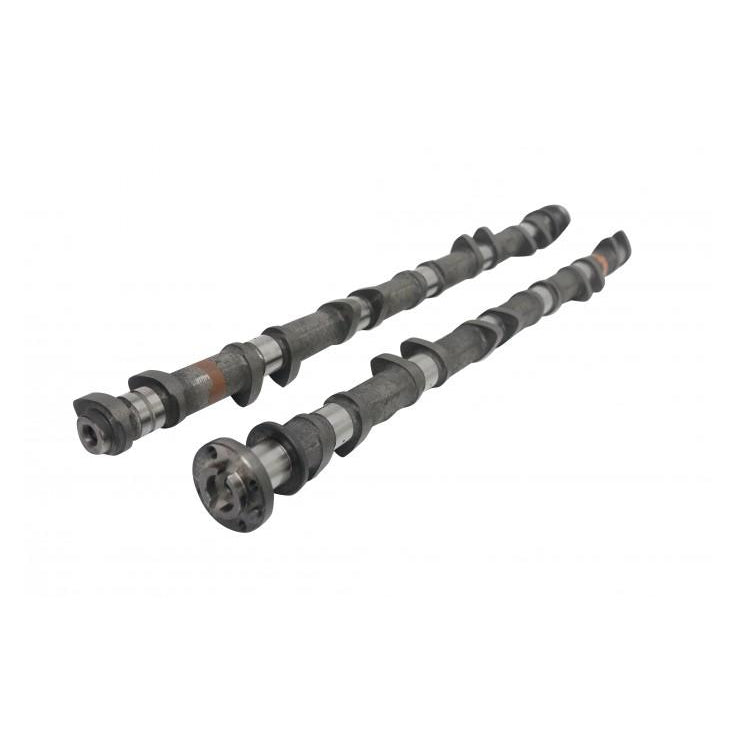

Kelford Cams 223-C NISSAN TB48 High Performance Cam Set

$1,758.35 NZD
SKU KC223-C
Buy now pay later,no extra cost!

Payments from $175.83 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

286/286 Degrees advertised duration, 10.80mm/10.75mm lift.

Additional Information:

Stage 2 camshafts to suit mid range performance engines with limited modifications. For street and offroad applications. Primary lobe specification is / Degrees advertised duration, lift.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
NISSAN TB48 DOHC 223-C
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 11.05mm Exhaust: 11.05mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.80mm Exhaust: 10.75mm
Advertised Duration @ Intake: 286 Exhaust: 286
Duration @ 1.00mm VALVE LIFT Intake: 244 Exhaust: 244
Timing @ 1.00mm VALVE LIFT IVO: 4 ATDC EVO: 52 BBDC
    IVC: 68 ABDC EVC: 12 ATDC
Suggested Centre Lines:   Intake: 126 Exhaust: 110
VALVE Lift @ TDC Intake: 0.67mm Exhaust: 2.26
