CONTACT US TO ORDER - OUT OF STOCK

This product is currently out of stock. Enter your details delow and the Speed Science team will be in touch.

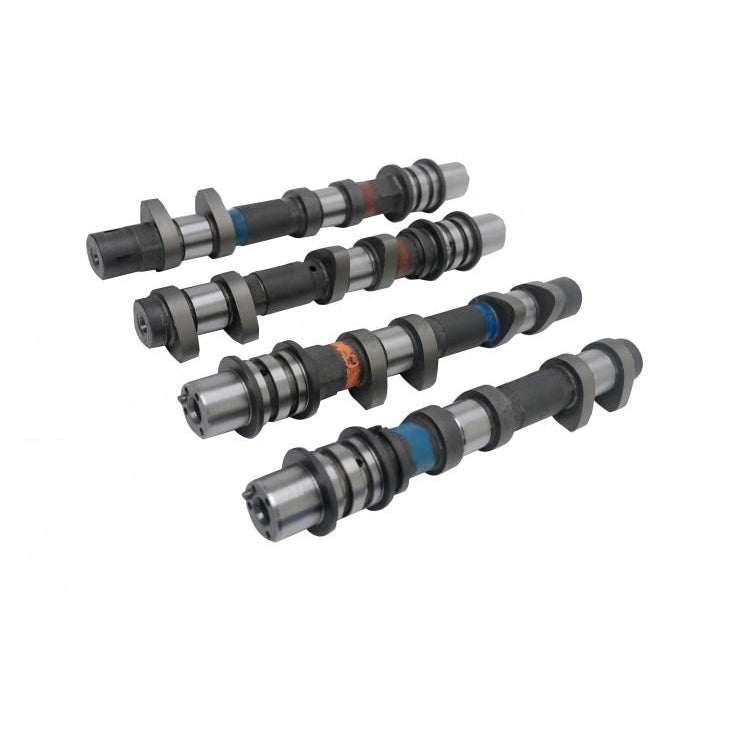

Kelford Cams 220-B Subaru EJ257B 2008 STi Stage 1 Performance Camshafts

$1,758.35 NZD
SKU KC220-B
Buy now pay later,no extra cost!

Payments from $175.83 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Note: Please check availability with us before ordering.

264&260/260 Degrees advertised duration. 10.70mm & 10.20mm/10.20mm lift.

Additional Information:

Race and rally cams with high lift and low duration for great throttle response.

Camshaft Specifications:

Engine Make: Engine Model: Part Number:
SUBARU EJ257B 220-B
Valve Clearance: Intake: 0.20mm Set COLD at the CAM
  Exhaust: 0.25mm Set COLD at the CAM

Cam Lift:   Intake: 10.90mm Exhaust: 10.45mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 10.70mm Exhaust: 10.20mm
Advertised Duration @ 0.25mm Intake: 264 Exhaust: 260
Duration @ 1.00mm VALVE LIFT Intake: 225 Exhaust: 222
Timing @ 1.00mm VALVE LIFT IVO: 17.5 ATDC EVO: 57 BBDC
    IVC: 62.5 ABDC EVC: 15 BTDC
Suggested Centre Lines:   Intake: 130 Exhaust: 126
VALVE Lift @ TDC Intake: 0.03mm Exhaust: 0.07mm
