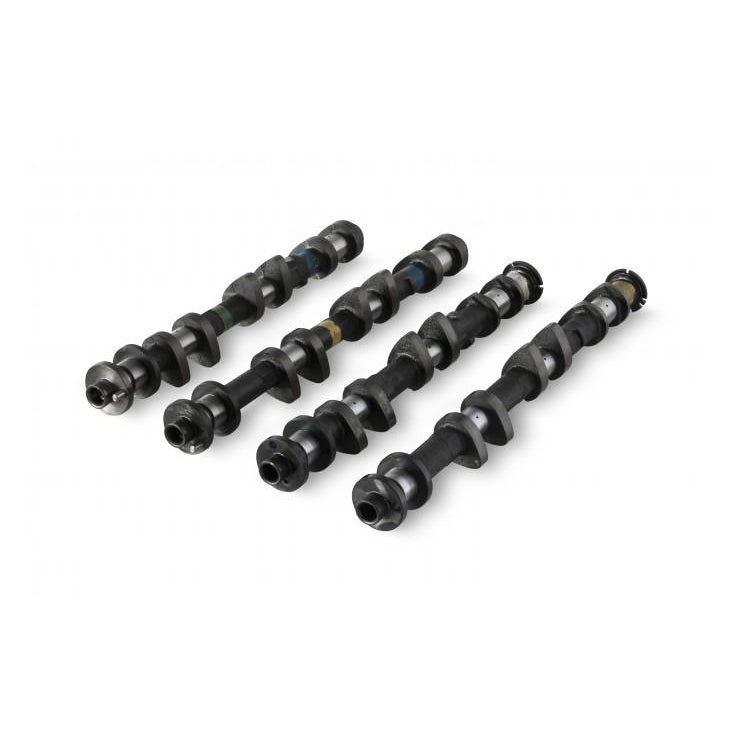

Kelford Cams 2-189-C Nissan N/A VQ35 REV UP (350Z) Stage 3 Cams
Buy now pay later,no extra cost!
Payments from $214.61 with

Note: Please check availability with us before ordering.
302/292 Degrees advertised duration. 11.50mm/11.00mm lift.
Additional Information:
302/292 Degrees advertised duration. 11.50mm/11.00mm lift.
Camshaft Information:
| Engine Make: | Engine Model: | Part Number: | |||||
| NISSAN | VQ35 REV UP (350Z) | 2-189-C | |||||
| Valve Clearance: | Intake: | 0.25mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.30mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 11.75mm | Exhaust: | 11.30mm | |||
| Rocker Ratio: | Intake: | 1 | Exhaust: | 1 | |||
| Nett Valve Lift: | Intake: | 11.50mm | Exhaust: | 11.00mm | |||
| Advertised Duration @ | 0.30mm | Intake: | 302 | Exhaust: | 292 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 256 | Exhaust: | 250 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 3 BTDC | EVO: | 70 BBDC | ||
| IVC: | 73 ABDC | EVC: | 0 TDC | ||||
| Suggested Centre Lines: | Intake: | 125 | Exhaust: | 125 | |||
| VALVE | Lift @ TDC | Intake: | 1.31mm | Exhaust: | 0.98 | ||
