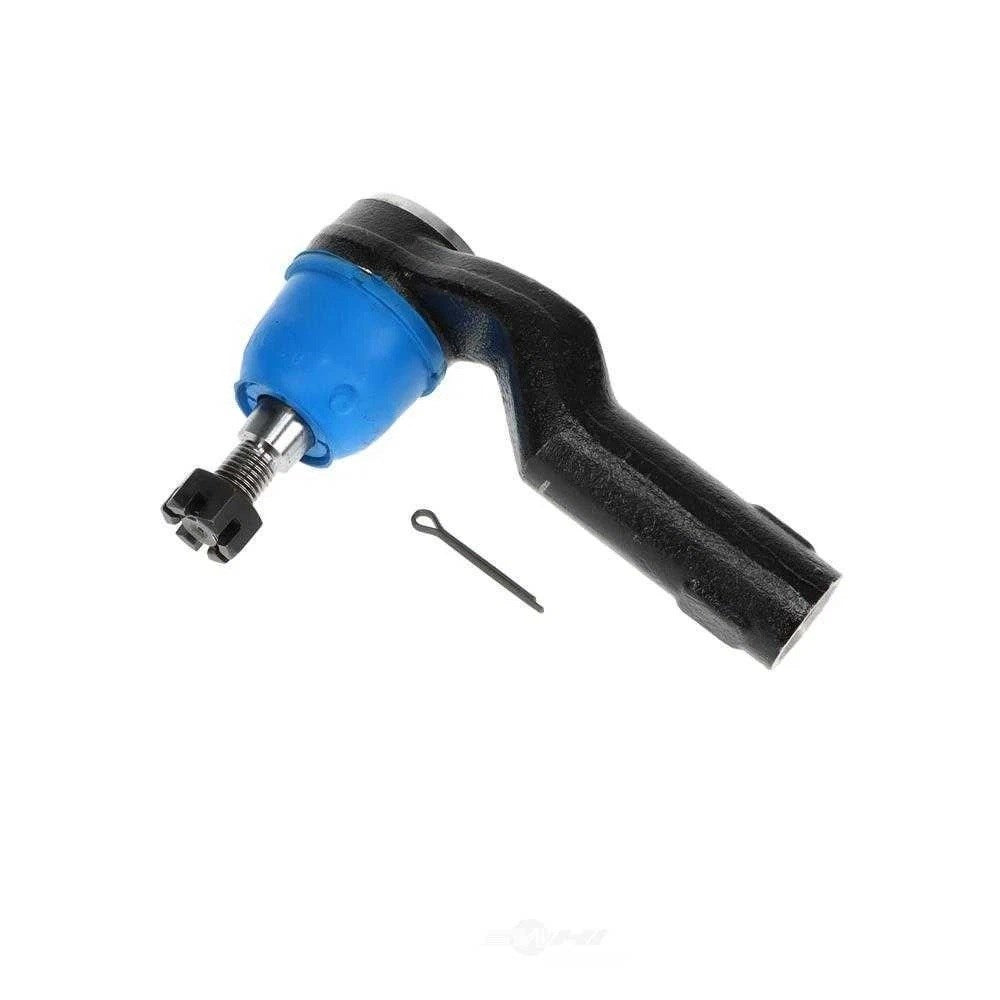

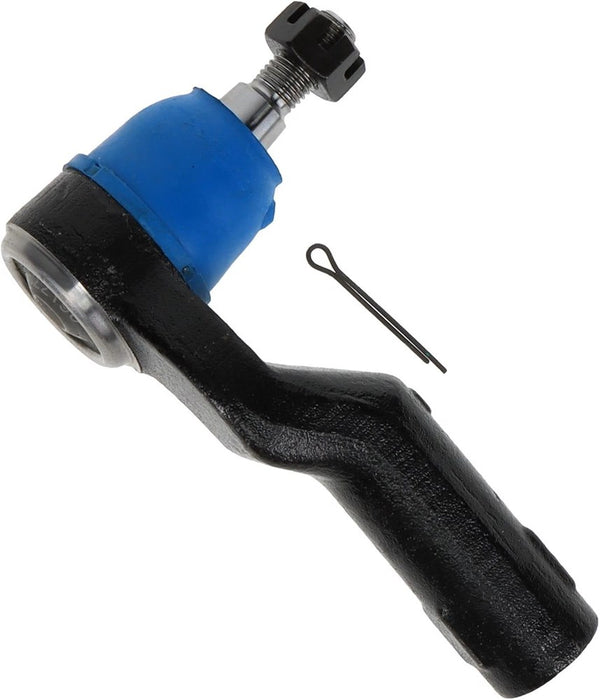

Mazda 3 2003-13/ Mazda 5 05-18
$96.75 NZD
SKU 45A1128
Buy now pay later,no extra cost!
Payments from $9.67 with
Enjoy now. Pay Later. Interest free. Learn More
Features:
- CNC-machined for consistency and high-quality
- Heat-treated forgings for strength
- Corrosion-resistant coating
- Undergoes extreme impact, wear, and fatigue testing to help with quality and durability
- Induction hardened to match OE fatigue life
- Full ball stud provides smooth articulation and excellent durability
- Designed to reduce end play and provide low rotating torque
- Greaseable where applicable: Allows new lubricant to flush contaminants from the assembly, reducing corrosion and wear
- Manufactured at TS 16949-certified facilities to help with consistent high-quality
| Adjustable | No |
| Color | Black |
| Dust Boot Included | Yes |
| End 1 Gender | Female |
| End 1 Thread Diameter (mm) | 17 mm |
| End 1 Thread Direction | Clockwise (Right) |
| End 1 Thread Pitch (mm) | 1.5 mm |
| End 2 Gender | Male |
| End 2 Thread Diameter (mm) | 10 mm |
| End 2 Thread Pitch (mm) | 1.25 mm |
| Finish | E-Coated |
| Grade | Standard |
| Grease Fitting Included | No |
| Greaseable | No |
| Length | 135.128 mm; 5.32 IN |
| Length - Stud Center to End | 107.1 mm; 4.22 IN |
| Mounting Hardware Included | Yes |
| Pre-Greased | Yes |
| Stud Type | "Tapered, Threaded" |
| Tie Rod Material | Steel |
| Type | BENT |
