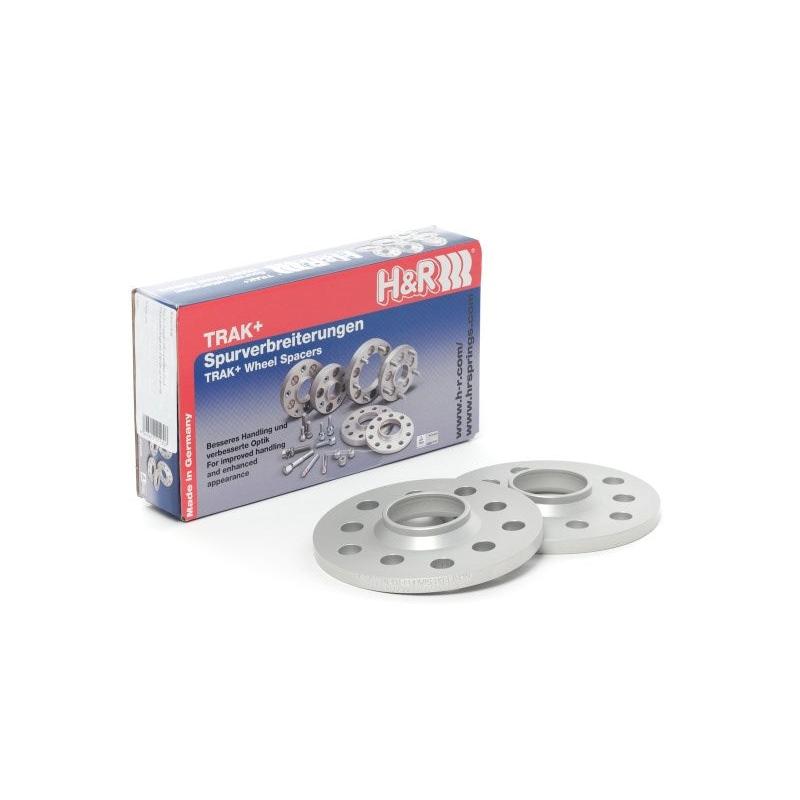

H&R Trak+ DRA Wheel Adaptor PCD 5x130 CB 71.6m M14x1.5 Porsche, Audi, Bentley - 18, 23, 25, 30mm
Buy now pay later,no extra cost!
Payments from $36.16 with
Sold as a pair.
If you've ever seen a sleek, European sedan with that oh-so-low street stance and a bulging wheel / tire combo that fits perfectly in the wheel wells, chances are that car was fitted with H&R TRAK+ Wheel Spacers. TRAK+ Wheel Spacers make your existing tires and wheels appear wider by moving the wheel out from the hub, providing both performance and appearance improvements. Whether you want improved handling, increased safety or simply desire your car to make a statement about your individual style, TRAK+ Wheel Spacers can help you accomplish your goal.
* *DRA Series* (40 - 60 mm track widening) DRA Series spacers bolt to the hub with special wheel bolts (included) and provide new threaded holes for wheel bolts.
*WHEN ORDERING WHEEL BOLTS, PLEASE FOLLOW THESE GUIDELINES*
New bolts must be longer than the original bolts by the width of the wheel spacer used.
The bolt head must be identical to the existing bolt:
* Taper 60deg - End digit 01
* Round head for M12/d24 mm, for M14/d28 mm - End digit 02
* Round head for M12/d26 mm (e.g. OE VAG-wheels) - End digit 03
* Flat head for Porsche original wheels M14 x 1.5 - End digit 06
Safety guidelines
(Minimum number of turns for wheel bolts / nuts):
* M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length
* M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length
* M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length
* M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length
* M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length
* 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length
Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely.
Important Installation Notes
Longer Wheel Bolts: Longer wheel bolts are required for the DR system and must be purchased separately (they are not included in the box).
Application: Commonly fits select Audi, Porsche, and Volkswagen models featuring a 5x130 bolt pattern and 71.6mm center bore.
