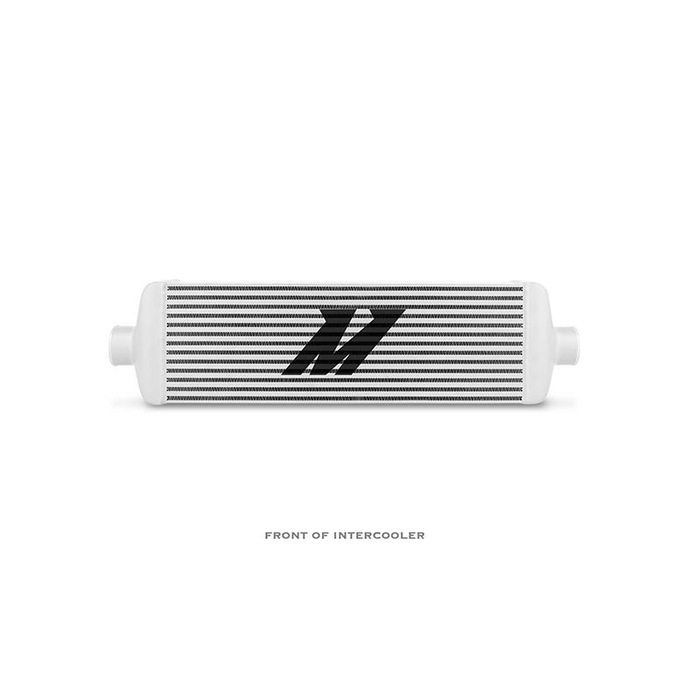

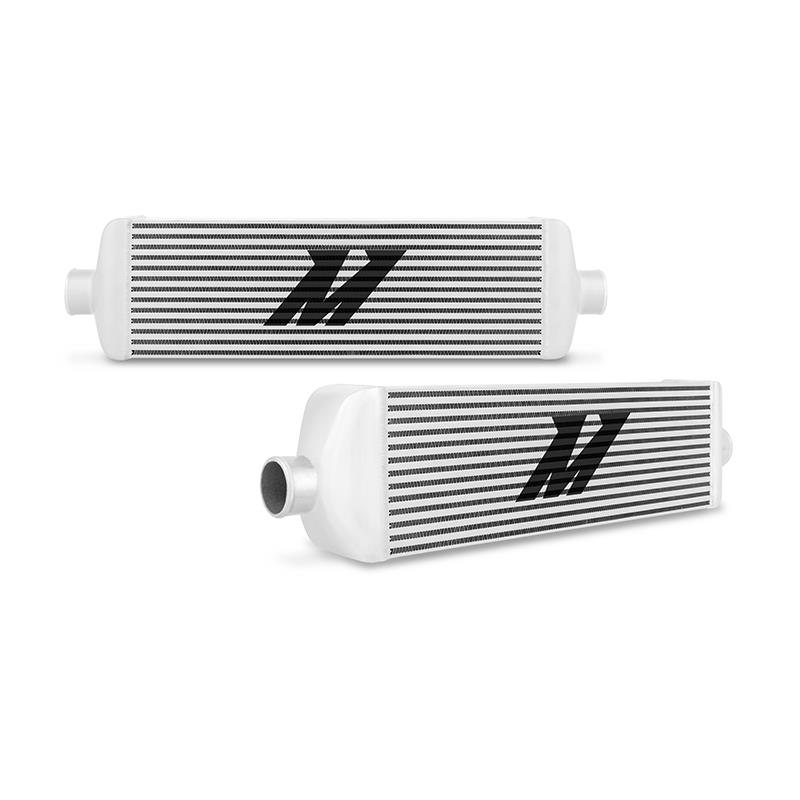

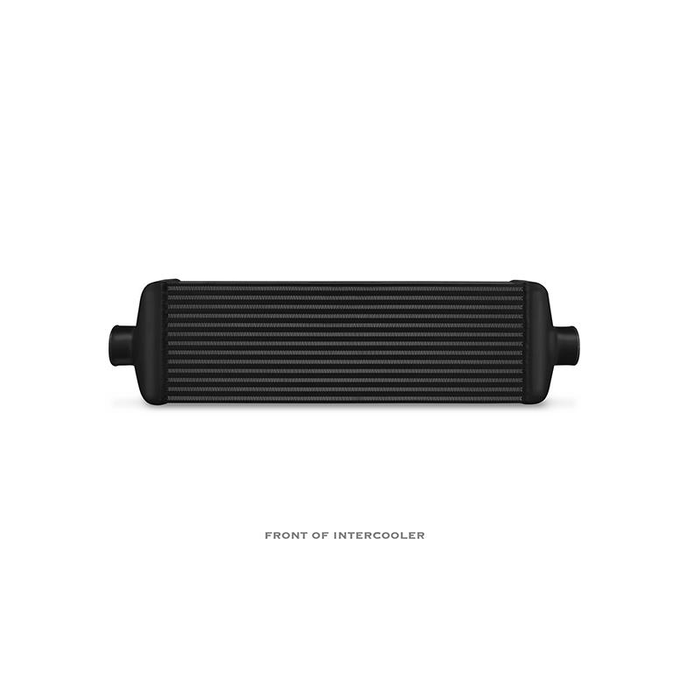

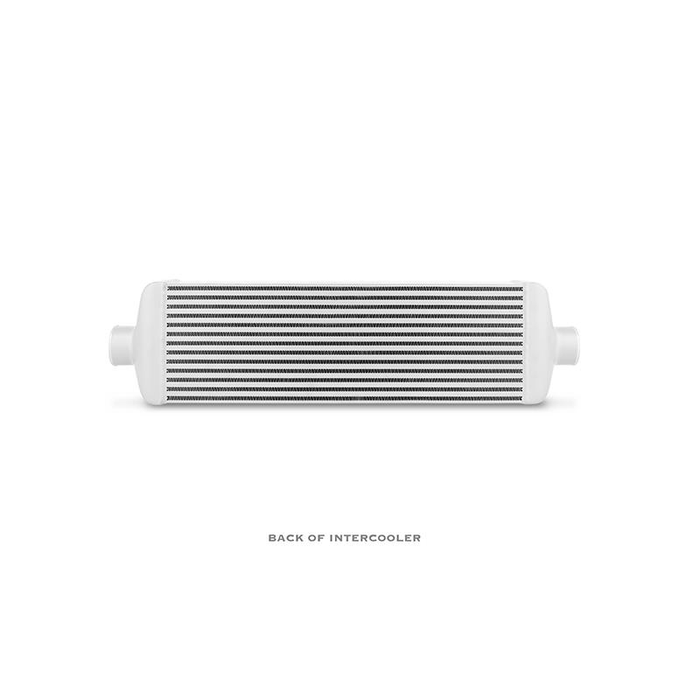

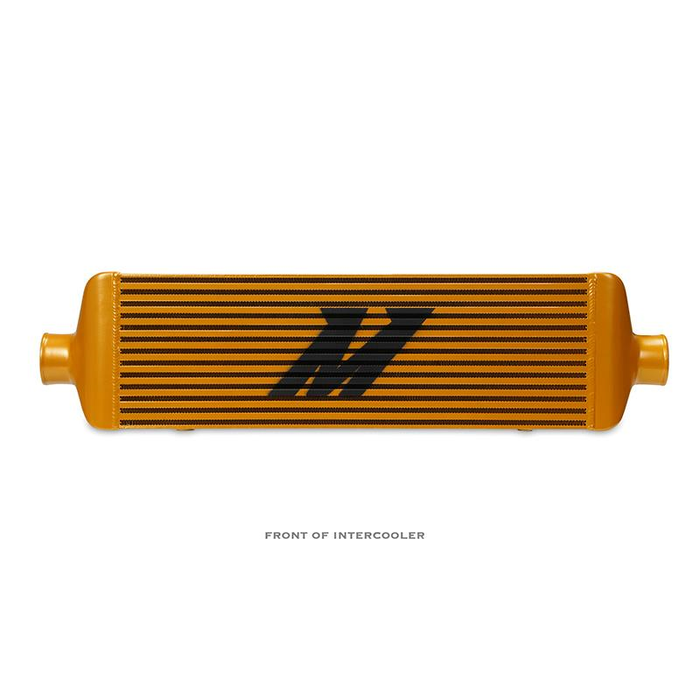

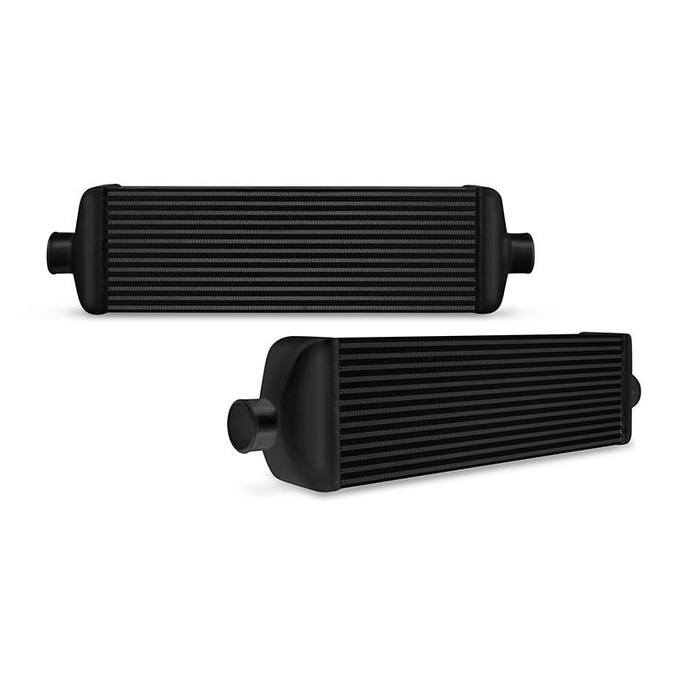

Mishimoto Universal Race Edition Intercooler J-Line
Buy now pay later,no extra cost!
Payments from $81.95 with
A small cooler packing a big punch, this universal front-mount intercooler has been engineered to handle 500HP, even with its compact size. Tested on the highest HP Hyundai Genesis Coupe in the world, the Mishimoto J-Line intercooler is perfect for cars with limited front-end space. In most instances, the J-Line will allow you to run more power while preventing you from having to remove your crash bar. Like all Mishimoto intercoolers, the J-Line is constructed with 6061 aluminum and is TIG welded to perfection.Worried that paint reduces performance? Check out our Painted Intercooler Engineering Report to learn how we debunked that myth!
Looking for just an intercooler core? View all of our air-to-air race intercooler cores!
Features:
- Durable bar-and-plate core provides superior heat transfer while effectively reducing AITs
- Robust, one-piece cast aluminum end tanks withstand high boost pressures
- Large 3.75" thick core and 2.5" inlet/outlet provides optimal flow and volume for high horsepower vehicles
- constructed with 6061 aluminum
- Available in Sleek Silver, Stealth Black, or Bold Gold
- Mishimoto Lifetime Warranty
Purchase Includes:
- (1) Mishimoto Intercooler
- (2) M12X1.25-14 Bolts
- Mishimoto Lifetime Warranty
Vehicle Specs:
| Fits | Universal |
Product Specs:
| Thread Size | (M12) x 1.25 |
| Weight | 18.7 lbs |
| Coating | Powder Coated |
| Tank Wall Thickness | 4 mm |
| Fin Pitch | 7 Fins/Inch |
| Max Rec. PSI | 40 psi |
| Outlet | 2.5" |
| Core Length | 22" |
| Core Height | 7.2" |
| Core Width | 3.5" |
| Inlet | 2.5" |
| Core Size | 22.0" x 7.2" x 3.5" |
| Overall Width | 3.75" |
| Overall Height | 7.5" |
| Overall Length | 29.5" |
| Construction | Bar-and-Plate |
