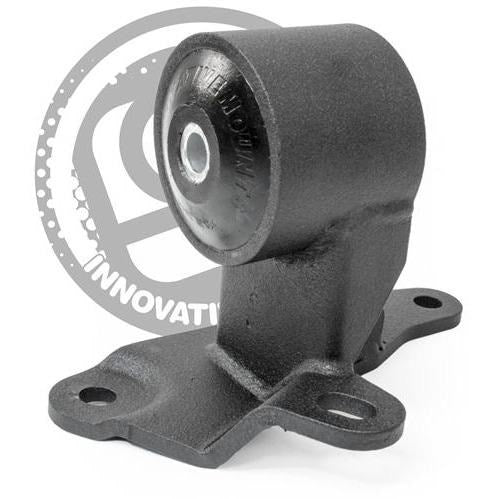

Innovative Mounts Steel Engine Mount Kit - BA Prelude - H/F Swap
Save 10%
Original Price
$976.50 NZD
Current Price
$878.85 NZD
SKU 29152-75A
Buy now pay later,no extra cost!
Payments from $87.88 with
Enjoy now. Pay Later. Interest free. Learn More
Innovative Engine Mounts are built for performance driving. Although Innovative’s bushings are made to absorb engine vibration, you may still notice slight vibration depending on your engine’s series and HP. Innovative Mounts removes the dampening oil containers harbored by OEM/Stock mounts. By switching to stiffer mounts without the fluid reduces wheel hop and increases driving response.
Conversion Engine Mount Kit for the 1988-1991 Honda Prelude (BA). Designed to fit the Prelude BA chassis when performing H22 engine conversions with manual transmission.
88-89 Model Fitment
Extra steps are necessary for those with the earlier 88-89 models. Prelude owners with the earlier chassis will need to acquire the driver-side frame bracket from the 90-91 Prelude and bolt it onto the frame rail. In contrast to most Honda and Acura frame rail pocket mounts, this isn't a welded piece, so it can easily be bolted into place. Once the new bracket is in position, the new place racing engine mount can be attached to the body.
The rear engine bracket of choice comes from the 92-96 Prelude with manual transmission.
Features:
Unique no-tear vibration minimizing bushings
CAD/CAM Designed
Stress Analyzed
Lifetime Warranty
Positions the Engine with No Axle Bind
Weight: 19lbs
Axles
Although it is highly recommended to purchase our custom Axles to perform this swap, you may find this axle combination to work(use at your own risk):
(from left to right)
3rd Gen Prelude outer joint
1990 Integra (driver's /Passenger's) Beam
H22 inner joint and intermediate shaft
H22 inner joint
Integra 1990 (Driver's / Passenger's) Beam
3rd Gen Prelude outer joint
Notes:
It is strongly recommended that all installs be done by a mechanic or automotive specialist.
Mounts CAN NOT be returned or swapped out after they have been bolted down (revealing bolt impressions).
