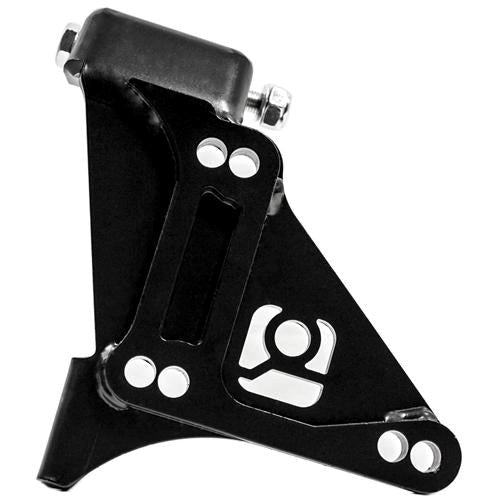

Innovative Mounts H Series Alternator Bracket
Save 10%
Original Price
$230.31 NZD
Current Price
$207.28 NZD
SKU 59185
Buy now pay later,no extra cost!
Payments from $20.72 with
Enjoy now. Pay Later. Interest free. Learn More
Designed to relocate H22 alternators during H-Series engine conversions for Acura and Honda model vehicles allowing extra room in the engine bay.
Some EF H-Series Swap Applications (88-91 Civic/CRX) may require modification to either this bracket or your cross-member for proper installation clearance.
Power steering cooler lines may need relocating
810mm belt (4pk if keeping balance shaft, 6pk if deleted balance shafts)
Features:
Ideal for H-Series swaps and H-Series to B-Series conversions
Lowers the factory H22 alternator to where the A/C compressor was originally mounted
Available with a 1/2" offset for use in applications where balancing shafts have been removed
Improved Design
CAD/CAM Designed
Stress Analyzed
Lifetime warranty
Notes:
It is strongly recommended that all installs be done by a mechanic or automotive specialist.
Mounts/Brackets can not be returned or swapped out after they have been bolted down (revealing bolt impressions).
Some EF H-Series Swap Applications (88-91 Civic/CRX) may require modification to either this bracket or your cross-member for proper installation clearance.
Power steering cooler lines may need relocating
810mm belt (4pk if keeping balance shaft, 6pk if deleted balance shafts)
