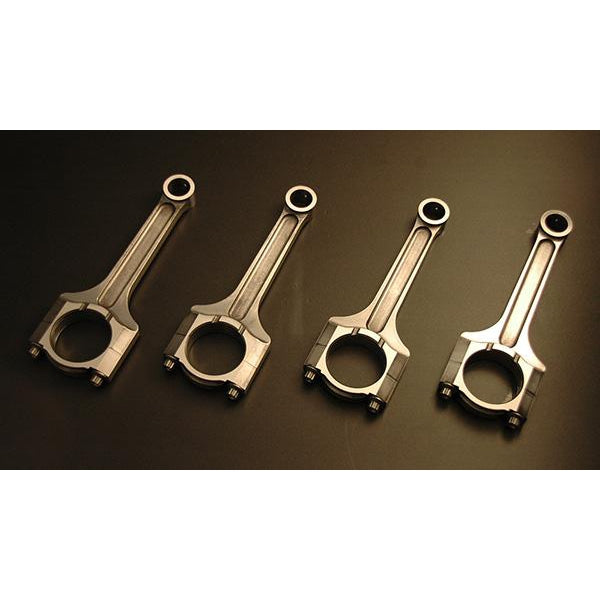

HKS Piston + Conrod Kit L15A/LEA 73
by HKS
Save 10%
Original Price
$4,031.70 NZD
Current Price
$3,628.53 NZD
SKU 21004-AH001
Buy now pay later,no extra cost!
Payments from $362.85 with
Enjoy now. Pay Later. Interest free. Learn More
*sold individually*
To improve the performance of the CR-Z using the factory connecting rods, the durability of the factory parts restricts the improvement. Using this Piston Kit and Connecting Rod Set with the HKS GTS7040 Set-up Kit can increase the maximum engine output to 300ps and the maximum torque to 36 kgf･m; the CR-Z can be high performance hybrid sports car.
Feature:
【PISTON KIT】
- Factory replacement & standard bore size piston kit.
- Billet pistons are made from the 80mm-L60mm Aluminum rod material.
- Honda factory piston pins (18mm Semifloating pins) are required.
- Honda factory piston rings are required.
The compression ratio when using the pistons with HKS Head Gasket is as follows:
HKS Head Gasket t=0.8mm Gasket Bore: 75.0mm 8.7
HKS Head Gasket t=1.2mm Gasket Bore: 75.0mm 8.4
【CONNECTING ROD SET】
- Semifloating pins on the connecting rod small end.
- The durability is improved by 186% comparing to the factory's durability with the 158.8(mm2) minimum cross-sectional area of the rod.
- The M8x1.0 sized connecting rod bolts are used for better rigidity.
In-house test at 336PS/43.78kgf･m confirmed the durability and safety (including the Supercharger drive loss).
Specifications:
| HKS | Stock | ||
| Bore x Stroke | φ73×89.4mm | φ73×89.4mm | |
| Comp. Ratio | ε8.7/8.4 | ε10.4 | |
| Gasket thickness | HKS t 0.8/1.2 | t 0.80 | |
| Displacement (cc) | 1496 | ← | |
| Piston | Bore dia. | φ73 | ← |
| Compression height | 26.0mm | ← | |
| Concave portion capacity | 17.5cc | 8.7cc | |
| Material | φ80-L60 AL | Casting | |
| Ref. weight | 178.5g | 198.9g | |
| Pin | Size | φ18 | φ18 |
| Ring | Top size | φ73×1.0×2.3 | ← |
| 2nd size | φ73×1.0×2.3 | ← | |
| Oil size | φ73×2.0×1.9 | ← | |
| Connecting rods | Material | SCM440H | - |
| Ref. weight | 380g | 314.5g | |
| Bolt | M8×1.0 | M6×1.0 | |
| Ref. capable torque | 43.8kgf-m | 30.47kgf-m | |
