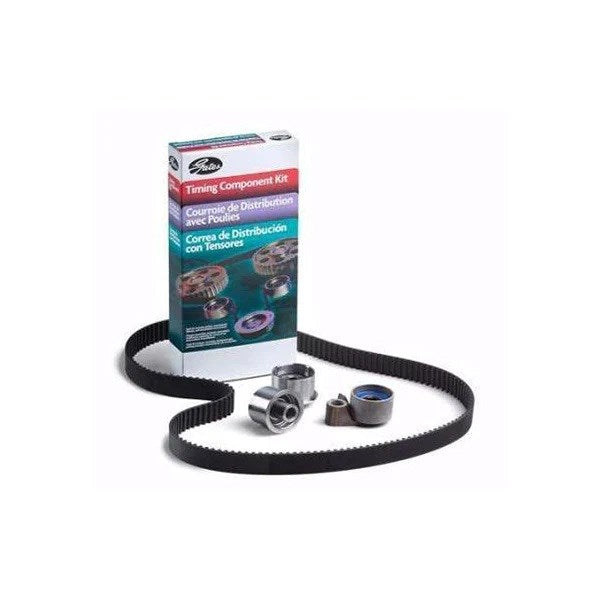

Gates Cambelt-Water Pump-Tensioner Kit - HONDA H22A
by Gates
Save 10%
Original Price
$625.00 NZD
Current Price
$562.50 NZD
SKU gatTCKWP226A
Buy now pay later,no extra cost!
Payments from $56.25 with
Enjoy now. Pay Later. Interest free. Learn More
Features & Benefits:
|
Please Note: Generic Photo used.
| GATES TCKWP226A Specifications | |
|---|---|
| Belt Material | HSN, Fiberglass Cord; HSN, Fiberglass Cord |
| Belt Quantity | 2 |
| Belt Top Color | Black |
| Bolt Included | No |
| Bolt Quantity | 0 |
| Contents | 2 Belts, 2 Tensioners, Hydraulic Tensioner, Water Pump, Spring, Gasket, Rubber Seal Ring |
| Engine Water Pump Quantity | 1 |
| Gasket Or Seals Included | Yes |
| Gasket Quantity | 1 |
| Idler Pulley Included | No |
| Idler Quantity | 0 |
| Installation Instructions Included | Yes |
| Installation Tool Included | No |
| Instruction Sheet Number | 0098-1478 |
| Number of Components | 7 |
| Seal Quantity | 1 |
| Spring Quantity | 1 |
| Springs Included | Yes |
| Tensioner Included | Yes |
| Tensioner Quantity | 3 |
| Tensioner Type | Hydraulic, Spring |
| Timing Belt 1 Teeth Quantity | 155 |
| Timing Belt 2 Teeth Quantity | 70 |
| Timing Belt Included | Yes |
| Timing Belt Width 1 (in) | .945 |
| Timing Belt Width 1 (mm) | 24 |
| Timing Belt Width 2 (in) | .63 |
| Timing Belt Width 2 (mm) | 16 |
| Timing Marks | No, No |
| Tooth Type | Modified Curvilinear (III), Modified Curvilinear (III) |
