Aeromotive 12-Series Hex Drive Mechanical Pump
Buy now pay later,no extra cost!
Payments from $270.86 with
Designed to feed serious EFI and Carbureted engines, gasoline, ethanol or methanol. The 12 Series Hex Drive Pump must be driven by a 3/8″ female hex, allowing the pump to be driven from your camshaft or off the back of a properly prepared dry-sump oil pump. It may also be mounted off the engine, or in the back of the vehicle, driven by a Heavy Duty Cable Drive like that from Waterman Racing. It can be used in high or low pressure applications.
- Flows up to 12 GPM
- 5,000+ HP on gas, up to 2500 HP methanol.
- High efficiency, Gerotor pumping mechanism.
- This product is not legal for sale or use on emission-controlled vehicles except when used on a dedicated race vehicle.
- Tough, Type III hard coat anodized body.
- CNC Machined from 6061 T6 aircraft aluminum.

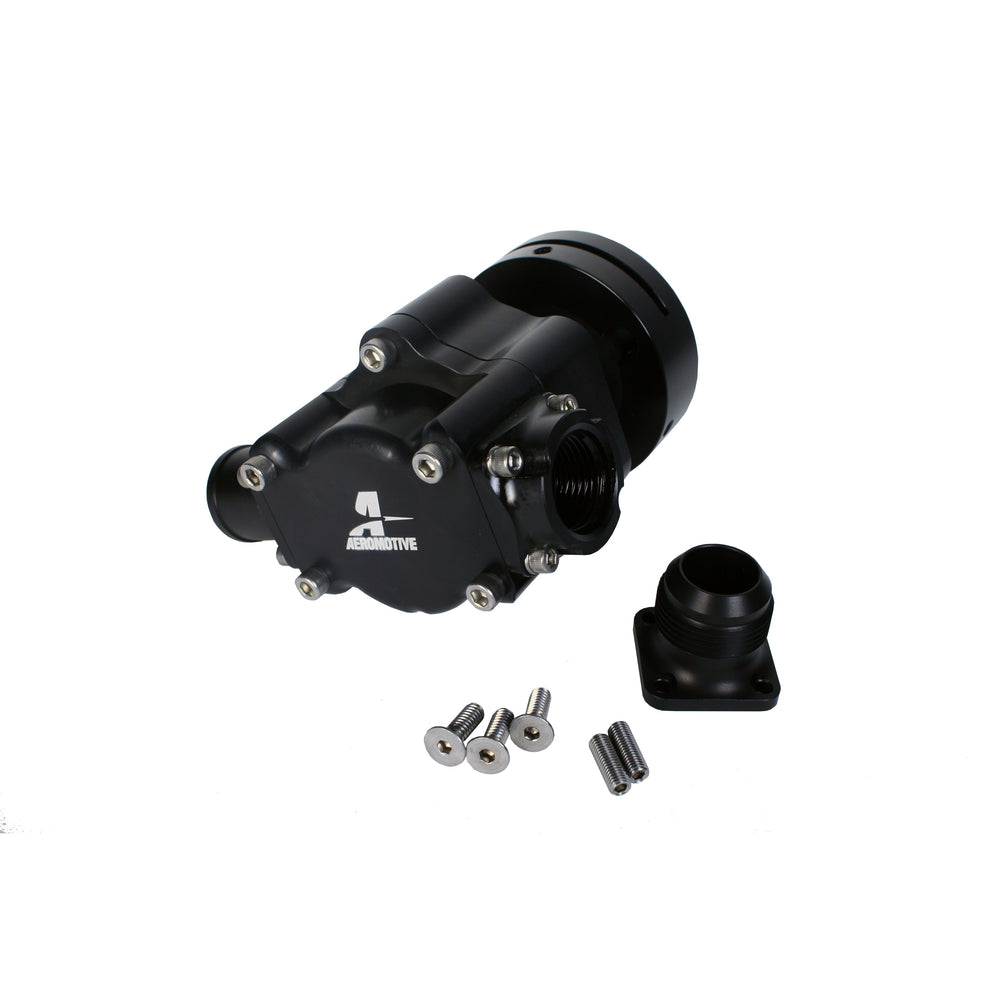

- Includes both 1.25′ barb and AN-16 Male inlet.
- ORB-12 female outlet port.
Additional Information:
| Weight | 4.89 lbs |
| Dimensions | 8.25 × 7 × 6.5 in |
P/N 11117: 12 Series Hex Drive Fuel Pump
12-GPM Hex Drive Mechanical Fuel Pump
Designed to feed serious EFI and Carbureted engines, gasoline, ethanol or methanol. The 12 Series Hex Drive Pump must be driven by a 3/8″ female hex, allowing the pump to be driven from your camshaft or off the back of a properly prepared dry-sump oil pump. It may also be mounted off the engine, or in the back of the vehicle, driven by a Heavy Duty Cable Drive like that from Waterman Racing. It can be used in high or low pressure applications.
- Flows up to 12 GPM
- 5,000+ HP on gas, up to 2500 HP methanol.
- High efficiency, Gerotor pumping mechanism.
- Tough, Type III hard coat anodized body.
- CNC Machined from 6061 T6 aircraft aluminum.
- Hex Drive Collar with 3-bolt Enderle bolt pattern.
- Standard male 3/8″ hex driveshaft.
- Includes both 1.25′ barb and AN-16 Male inlet.
- ORB-12 female outlet port.
EFI applications require high-flow return style regulators:
P/N 13132, 13133, 13137 or 13113.
Sold Separately:
Electric Priming/Starting Kit: P/N 17301
