Aeromotive 07-12 Shelby GT500 Stealth A1000 Racing Fuel System with 5.0L 4-V Fuel Rails
Buy now pay later,no extra cost!
Payments from $489.20 with

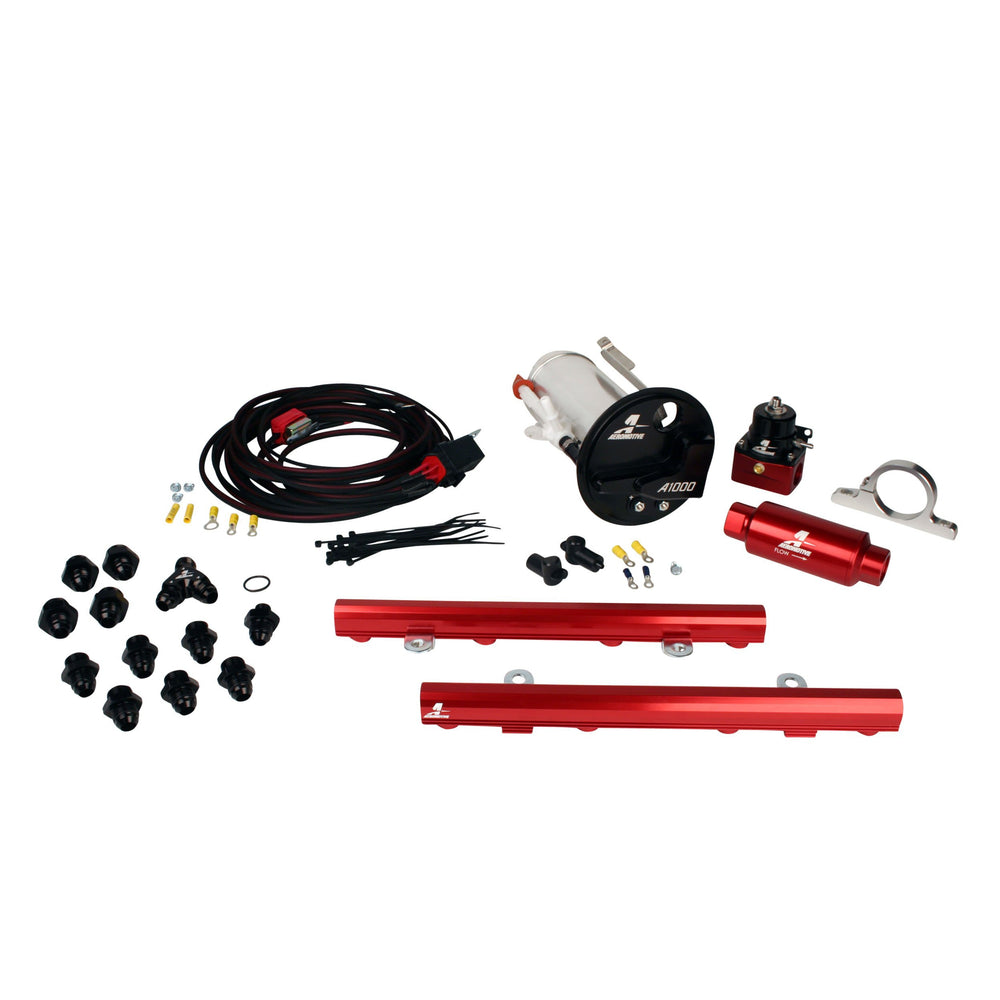

This Mustang Stealth Fuel System includes the Aeromotive Stealth A1000 fuel pump, designed to fit inside the stock, OEM Mustang tank and integrate with the stock fuel-level sending unit and jet-siphon transfer pump. This product is not legal for sale or use on emission-controlled vehicles except when used as a direct replacement part matching OEM specifications. This Serious Aeromotive Fuel System provides all the necessary fuel system hard-parts including the Stealth In-Tank Fuel Pump, 40-micron High Flow Filter, One Piece CNC Y-block, Billet High-Flow Fuel Rails, Billet EFI Pressure Regulator and all necessary Aeromotive high flow, ORB Port Fittings. Fuel Pump Electrical Supply is also provided, including our amazing HD Fuel Pump Wiring Kit for cars that will be primarily raced, with limited street driving. Fuel Lines and Hose-Ends sold separately.
This system contains the following parts:
- 1ea p/n 14130 Fuel Rails
- 1ea p/n 13101 Fuel Pressure Regulator
- 1ea p/n 18682 Fuel Pump Assembly
- 1ea p/n 16307 Fuel Pump Wiring Kit
- 1ea p/n 12305 Filter Bracket
- 1ea p/n 12335 Filter Assembly, 40-micron
- 1ea p/n 15107 One-Way Check Valve
- 6ea p/n 15607 ORB-08 to AN-08 Fittings
- 4ea p/n 15610 ORB-10 to AN-08 Fittings
- 1ea p/n 15649 ORB-06 to AN-08 Fitting
- 1ea p/n 15674 Y-Block, AN-08
- 1ea p/n OR002-2910 AN-10 O-Ring
P/N 17316 07-12 GT500 Stealth EFI Fuel System.
For Mustang GT500’s with Coyote 4-V 5.0L Swap.
- Rated for EFI engines producing up to 1,000 Flywheel HP Forced Induction or 1,300 Flywheel HP Naturally Aspirated.
- For 2007-2012 GT500 Mustang Chassis with engine swap to 5.0L 4-V Coyote engine and/or equivalent intake.
- Includes Aeromotive’s HD Fuel Pump Wiring Kit for limited duty racing applications.
Additional Information:
| Weight | 18.11 lbs |
| Dimensions | 19 × 13 × 13 in |
