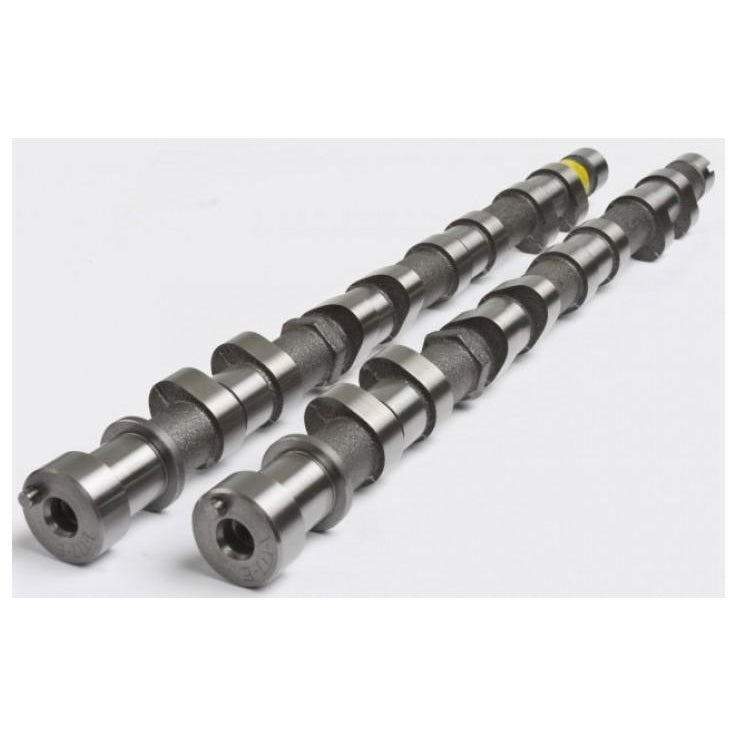

Kelford Cams 1-SLX282 Mitsubishi 4G63 EVO 1-3 Solid Lifter Race Cams
Buy now pay later,no extra cost!
Payments from $107.98 with

Note: Please check availability with us before ordering.
282/288 Degree advertised duration, 11.50mm/11.50mm lift.
Additional Information:
Cams for Mitsubishi 4G63 VR4 Evolution 1-3 engines with solid lifter conversion. High HP racing cams, suits well built time attack and drag racing engines. Ideal for motors over 700hp using E85.
Camshaft Information:
| Engine Make: | Engine Model: | Part Number: | |||||
| MITSUBISHI | 4G63 EVO 1-3 | 1-SLX282 | |||||
| Valve Clearance: | Intake: | 0.20mm | Set | COLD | at the | CAM | |
| Exhaust: | 0.20mm | Set | COLD | at the | CAM | ||
| Cam Lift: | Intake: | 6.85mm | Exhaust: | 6.85mm | |||
| Rocker Ratio: | Intake: | 1.73 | Exhaust: | 1.73 | |||
| Nett Valve Lift: | Intake: | 11.50mm | Exhaust: | 11.50mm | |||
| Advertised Duration @ | 0.10mm | Intake: | 282 | Exhaust: | 288 | ||
| Duration @ | 1.00mm VALVE LIFT | Intake: | 240 | Exhaust: | 244 | ||
| Timing @ | 1.00mm VALVE LIFT | IVO: | 11 BTDC | EVO: | 58 BBDC | ||
| IVC: | 49 ABDC | EVC: | 6 ATDC | ||||
| Suggested Centre Lines: | Intake: | 109 | Exhaust: | 116 | |||
| VALVE | Lift @ TDC | Intake: | 2.04mm | Exhaust: | 1.35 | ||
