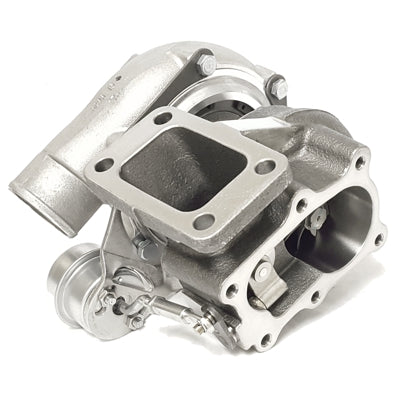

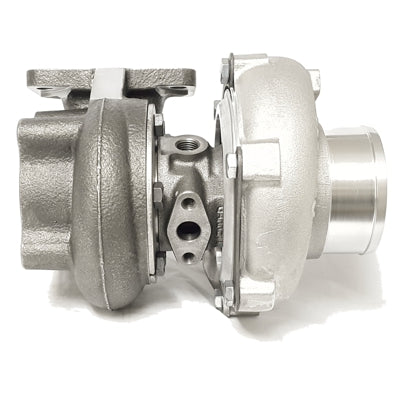

ATP Turbo Turbocharger, GTX3582R DBB with RB25DET T3 6 bolt exit turbine hsg w/ 1 bar int wgt. actuator

$5,557.94 NZD
SKU GRT-TBO-J23
Buy now pay later,no extra cost!

Payments from $555.79 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist
GTX3582R dual ball bearing turbocharger with RB25DET T3 6 bolt exit turbine housing and compact compressor housing. This is a drop-in ready RB25DET turbo complete with a 1 bar internal wastegate actuator. 750HP potential flow.

Product Specifications:
  • Compressor Wheel Inducer: 62.5mm
  • Compressor Wheel Exducer: 82.5mm
  • Compressor Wheel Trim: 56
  • Turbine Wheel Inducer: 68.0mm
  • Turbine Wheel Exducer: 62.3mm
  • Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
  • Coolant in/out: ATP-RB2-002
  • Oil feed: ATP-RB2-001
  • Oil drain flange: ATP-VSRT-014
  • Oil drain gasket: GRT-GSK-008

NOTE: Alternate coolant and oil fittings and flanges, sold separately, are needed to connect the GT/GTX turbo.

Compressor & Turbine Maps:
Garrett Part Numbers:
  • 803715-5001S
  • 836047-5002S
