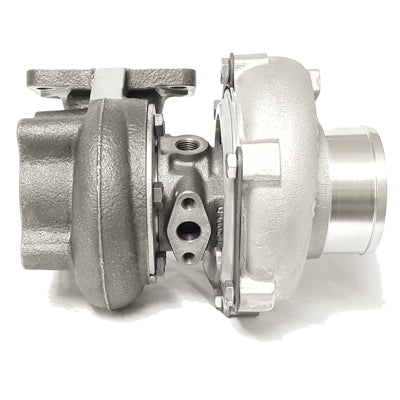

ATP Turbo Turbocharger, GT3582R DBB with RB25DET T3 6 bolt exit turbine hsg w/ 1 bar int wgt. actuator
Buy now pay later,no extra cost!
Payments from $449.07 with

Garrett GT3582R dual ball bearing turbocharger with RB25DET T3 6 bolt exit turbine housing and compact compressor housing. This is a drop-in ready RB25DET turbo complete with a 1 bar internal wastegate actuator. 650+HP potential flow.
Product Features:
- Genuine Garrett GT Aero compressor wheel
- Genuine Garrett GT Inconel turbine wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 61.4mm
- Compressor Wheel Exducer: 82mm
- Compressor Wheel Trim: 56
- Compressor Housing: 0.70 A/R
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62.3mm
- Turbine Wheel Trim: 84
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant in/out: ATP-RB2-002
- Oil feed: ATP-RB2-001
- Oil drain flange: ATP-VSRT-014
- Oil drain gasket: GRT-GSK-008
NOTE: Alternate coolant and oil fittings and flanges, sold separately, are needed to connect the GT/GTX turbo.
Compressor & Turbine Maps:


Applicable Garrett Part Numbers:
- 714568-5012S
