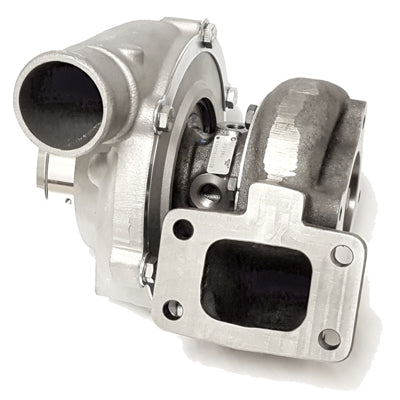

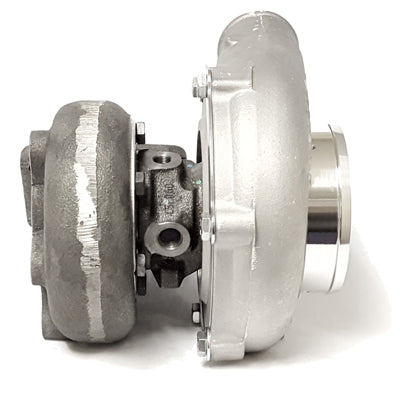

ATP Turbo Turbocharger, Gen2 GTX3071R DBB, w/ .63 A/R T3 5 Bolt (Ford Style) Exit
by ATP Turbo
$4,259.88 NZD
SKU GRT-TBO-L23
Buy now pay later,no extra cost!
Payments from $425.98 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GEN2 GTX3071R dual ball bearing turbocharger with a .63 A/R T3 5 bolt (Ford Style) exit turbine housing. Advanced GEN2 billet compressor wheel capable of 650HP!
PRODUCT FEATURES:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 54mm
- Compressor Wheel Exducer: 71mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
- Turbine Wheel Trim: 84
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- T3 Inlet Weld Flange (stainless): Product Code: ATP-FLS-038 (ATP-FLS-001 -mild steel)
- Gasket, T3 Turbine Inlet - UNDIVIDED: Product Code: GRT-GSK-005
- T3 5 Bolt (Ford Style) Discharge flange (stainless): Product Code: ATP-FLS-036 (ATP-FLS-035 - mild steel)
- Gasket for T3 5 Bolt (Ford Style) Turbine Outlet Flange (Externally Gated): Product Code: ATP-GSK-019
NOTE: Alternate coolant and oil fittings and flanges and wastegate actuators are available.
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
- Supercore P/N: 851154-5002S
