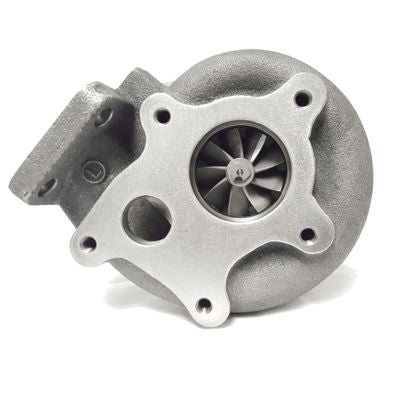

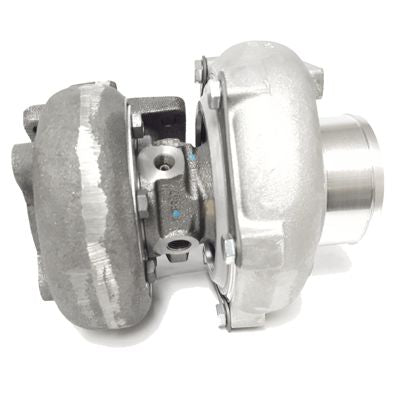

ATP Turbo Turbocharger, Gen2 GTX2860R DBB turbo w/ .63 A/R T3 Tbn HSG w/ Ford Style 5 Bolt Exit
by ATP Turbo
$3,682.98 NZD
SKU GRT-TBO-B93
Buy now pay later,no extra cost!
Payments from $368.29 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GEN2 GTX2860R dual ball bearing turbocharger with a .63 A/R T3 turbine housing and Ford style 5 bolt exit. Advanced GEN2 billet compressor wheel capable of 475HP!
Product Features:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 46mm
- Compressor Wheel Exducer: 60mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 54mm
- Turbine Wheel Exducer: 47mm
- Turbine Wheel Trim: 76
- Turbine Housing A/R: .63
Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- T3 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-038
- T3 Inlet Gasket: Product Code:GRT-GSK-005
- T3 5 Bolt (Ford Style) Discharge flange (stainless): Product Code: ATP-FLS-036 (ATP-FLS-035 - mild steel)
- Gasket for T3 5 Bolt (Ford Style) Turbine Outlet Flange (Externally Gated): Product Code: ATP-GSK-019
NOTE: Alternate coolant and oil fittings and flanges are available.
Compressor & Turbine Maps:
Garrett Part Numbers:
- 849894-5001S
- 856800-5003S
