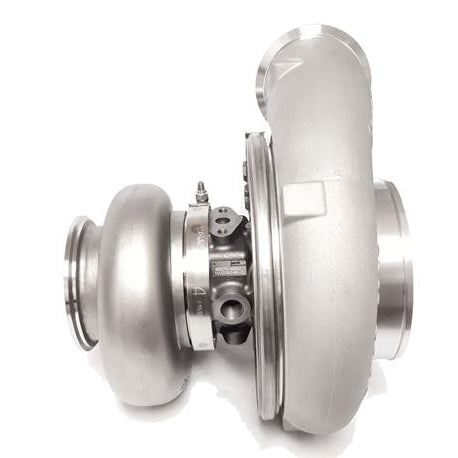

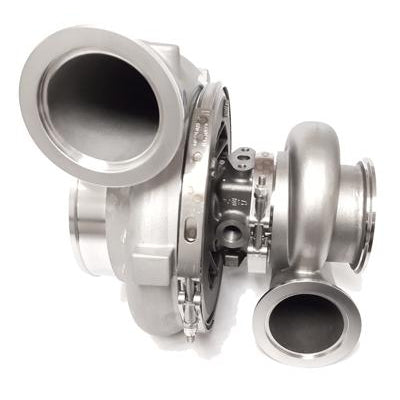

ATP Turbo Turbocharger - Garrett GTX4508R 108mm (80mm) Regular (fullsize) Comp, Tial 1.16A/R SS
by ATP Turbo
$8,833.58 NZD
SKU GRT-TBO-B45
Buy now pay later,no extra cost!
Payments from $883.35 with
Enjoy now. Pay Later. Interest free. Learn More
The latest ball bearing GTX-R series of the GT45 range is here on time for the race season. This is an even more efficient and more potent version which flows more HP and can handle a lot more boost. This unit is now capable of 1400 HP.
Product Specifications:
- Compressor Wheel Inducer: 80 mm
- Compressor Wheel Exducer: 108 mm
- Compressor Wheel Trim: 55
- Compressor Housing A/R: 0.69
- Turbine Wheel Inducer: 87 mm
- Turbine Wheel Exducer: 80 mm
- Turbine Wheel Trim: 85
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 18mm Coolant Fitting & Lines
- Oil feed flange: -4 AN with built-in Restrictor (Product Code: ATP-FLA-040)
- Oil feed gasket: Product Code: GRT-GSK-011
- Oil drain flange: Product Code: ATP-FLA-009
- Oil drain gasket: Product Code: GRT-GSK-007
- Compressor Housing Outlet Flange & Clamp Set: Product Code:ATP-FLS-055
- V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-095
- V-Band Inlet Clamp: Product Code:CLC-CLA-027
- V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-096
- V-Band Outlet Clamp: Product Code:CLC-CLA-028
NOTE: Alternate coolant and oil fittings and flanges are available.
Compressor & Turbine Maps:
