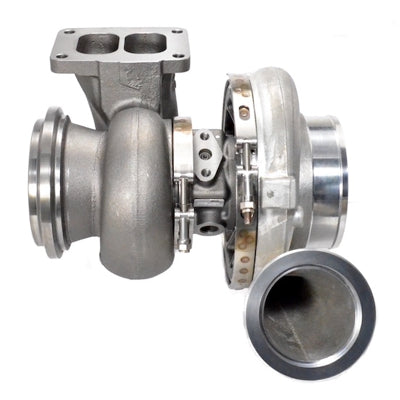

ATP Turbo Turbocharger - Garrett GTX4294R W/ T6 DIVIDED 1.01 A/R TURBINE HOUSING

$7,337.07 NZD
SKU GRT-TBO-G64
Buy now pay later,no extra cost!

Payments from $733.70 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

Garret GTX4294R ball bearing turbocharger with T6 divided 1.01 A/R turbine housing. Supports over 1,000HP!

Product Specifications:

  • Compressor Wheel Inducer: 70.3mm
  • Compressor Wheel Exducer: 94mm
  • Compressor Wheel Trim: 56
  • Compressor Housing: 60 A/R
  • Turbine Wheel Inducer: 82mm
  • Turbine Wheel Exducer: 75.1mm
  • Turbine Wheel Trim: 84 trim

Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:

  • Coolant - Water Options (Requires 2 units): 18mm Coolant Fitting & Lines
  • Oil feed flange: -4 AN with built-in Restrictor (Product Code: ATP-FLA-040)
  • Oil feed gasket: Product Code: GRT-GSK-011
  • Oil drain flange: Product Code: ATP-FLA-009
  • Oil drain gasket: Product Code: GRT-GSK-007
  • T6 Divided Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-027
  • T6 Divided Inlet Gasket: Product Code:ATP-GSK-020
  • 5" Marmon Outlet Flange (for Downpipe): Product Code:ATP-FLS-221
  • 5" V-Band Clamp: Product Code:CLC-CLA-049

NOTE: Alternate coolant and oil fittings and flanges are available.

Compressor & Turbine Maps:


Applicable Garrett Part Numbers:
800269-5001S
