ATP Turbo T25 Inlet, Internally Gated, Stainless Steel, & .64 A/R Turbine Housing for GT30/GTX30

$993.52 NZD
SKU ATP-HSG-364-GTX
Buy now pay later,no extra cost!

Payments from $99.35 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist

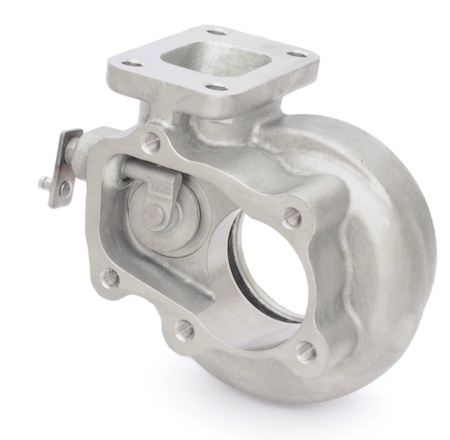

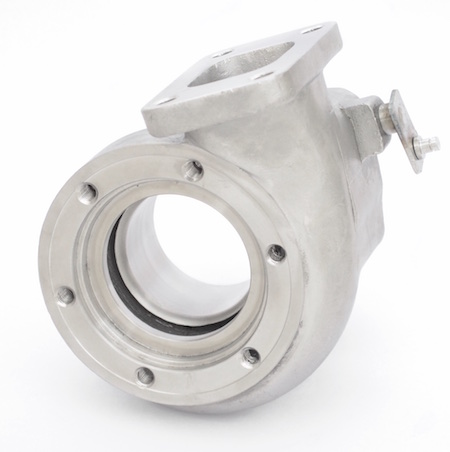

Stainless Steel, T25 inlet, internally gated, 5 bolt outlet, and .64 A/R turbine housing for Garrett GTX30 series and Garrett GT30 series (standard 60mm inducer / 55mm exducer turbine wheel) turbochargers.

The perfect upgrade solution for existing T25 inlet Garrett GT28/GTX28 series turbo setups to a Garrett GT30/GTX30 series turbo without replacing the manifold!

.86 A/R version available as Product Code: ATP-HSG-386.

PRODUCT SPECIFICATIONS:
  • T25 inlet flange
  • Internally gated
  • 5 bolt GT28 style outlet
  • .64 A/R
  • Stainless Steel material

  • COMPATIBLE GARRETT TURBOCHARGERS:
  • GTX3067R
  • GT3071R, GTX3071R, GEN2 GTX3071R
  • GT3076R, GTX3076R, GEN2 GTX3076R
  • GT3082R

  • INSTALLATION COMPONENTS:
  • T25 Inlet Gasket: (Product Code: GRT-GSK-004)
  • T25 Inlet Flange (For Manifold): (Product Code: ATP-FLS-037)
  • Turbine Housing to CHRA Mount Kit: (Product Code: ATP-FST-039)
  • Outlet 5 Bolt Gasket: (Product Code: ATP-GSK-016)
  • Outlet 5 Bolt Flange (For Down-pipe):(Product Code: ATP-FLS-088)
  • Outlet 5 Bolt to 3" V-Band Adapter: (Product Code: ATP-FLS-023B)
  • Outlet Fasteners: (Studs) and (Lock Nuts)
