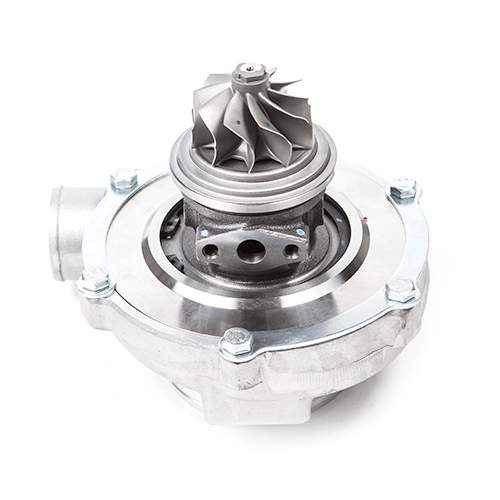

ATP Turbo Supercore, Garrett, Gen2 GTX3071R, P/N: 851154-5002S
Buy now pay later,no extra cost!
Payments from $390.17 with

Garrett GEN2 GTX3071R dual ball bearing SuperCore (P/N: 851154-5002S) with ultra high flow Gen2 compressor wheel. NO TURBINE HOUSING (Supercore). Advanced GEN2 billet compressor wheel capable of 650HP!
PRODUCT FEATURES:
- Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
- Forged billet aluminum compressor wheel
- Dual ball bearing CHRA rotating assembly
- Compressor Wheel Inducer: 54mm
- Compressor Wheel Exducer: 71mm
- Compressor Wheel Trim: 58
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
- Turbine Wheel Trim: 84
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
NOTE: Alternate coolant and oil fittings are available.
COMPRESSOR & TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
- Supercore P/N: 851154-5002S
