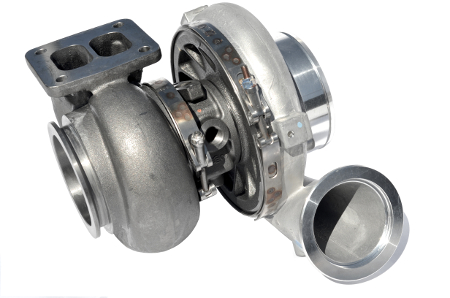

ATP Turbo New Ball Bearing Garrett GTX4202R Turbocharger (GTX-R Series) - W/ Turbine Hsg Choices
Buy now pay later,no extra cost!
Payments from $822.62 with
T4 Divided Inlet and 4" V-band Outlet Turbine Housing
Introducing the Garrett GTX4202R from the GTX-R series. The GTX4202R is a more efficient and potent version of the GT4202R (aka GT42RS). The GTX4202R is capable of nearly 1,200HP!
Available in T4 (divided or undivided), T6 divided, or V-band Inlet turbine housings.
Large frame and high flowing compressor housing, featuring built-in ported shroud (anti-surge), 5" Inlet and V-Band outlet (4.5" outer diameter ring and 3.5" tube).
This unit is usually in stock and ships withing 1-2 days.
PRODUCT SPECIFICATIONS:
* Compressor Wheel Inducer: 75.8mm
* Compressor Wheel Exducer: 102.3mm
* Compressor Wheel Trim: 55
* Compressor Housing: 60 A/R
* Turbine Wheel Inducer: 82mm
* Turbine Wheel Exducer: 75.1mm
* Turbine Wheel Trim: 84 trim
TURBINE HOUSING OPTIONS:
* T4 Divided Inlet and 4" V-Band Outlet: 1.01, 1.15, 1.28, or 1.44 A/R
* T6 Divided Inlet and 5" V-Band Outlet: 1.01 or 1.15 A/R
* T4 Undivided Inlet and 4" V-Band Outlet: 1.15, 1.28, or 1.44 A/R
* V-Band Inlet and 4" V-Band Outlet: 1.15, 1.28, or 1.44 A/R
* TiAL V-Band Inlet and Outlet: 1.02, 1.16, or 1.30 A/R
COMPRESSOR AND TURBINE MAPS:
APPLICABLE GARRETT PART NUMBERS:
800269-5002S
451888-0044
