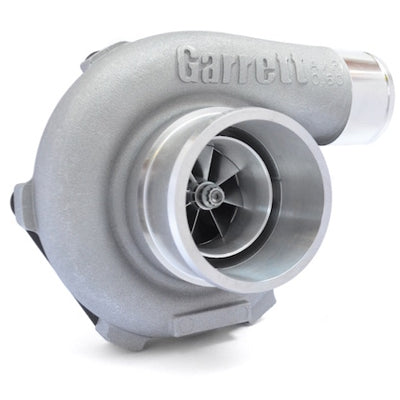

ATP Turbo GTX2967R DBB turbo , w/ .61 A/R Garrett UND VBAND Tbn Hsg, VBAND 3" EXIT
Buy now pay later,no extra cost!
Payments from $406.02 with
PRODUCT DESCRIPTION:
This is a full size GT3076R turbo with the 60mm Turbine and 76mm compressor wheel set up in the Tial Stainless Turbine housing and "GT28 Style" (T04B Frame) Compressor Housing to fit into your kit that is already set up for a GT28 frame turbo. Drop this in and start making GT3076R level power without any external kit changes.
Garrett GT3076R ball bearing turbocharger and TiAL .63 A/R Stainless Steel V-Band Inlet and V-Band Outlet turbine housing. 525+HP potential flow. The larger 60mm turbine wheel compliments the 76mm compressor to make power without compromise.
PRODUCT FEATURES:
- Genuine Garrett GT Aero compressor wheel
- Genuine Garrett GT Inconel turbine wheel
- Dual ball bearing CHRA rotating assembly
PRODUCT SPECIFICATIONS:
- Compressor Wheel Inducer: 57mm
- Compressor Wheel Exducer: 76mm
- Compressor Wheel Trim: 56
- Compressor Housing A/R: 0.60
- Turbine Wheel Inducer: 60mm
- Turbine Wheel Exducer: 55mm
- Turbine Wheel Trim: 84
COOLANT (WATER) & OIL FITTINGS, FLANGES, AND COMPONENTS SOLUTIONS:
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor (Product Code: ATP-OIL-021)
- Oil drain flange: Product Code: ATP-FLA-010
- Oil drain gasket: Product Code: GRT-GSK-008
- 8mm x 1.25 (thread pitch) Stud: Product Code: MIA-FST-030
- 8mm x 1.25 (thread pitch) Locking Head Nut: Product Code: MIA-FST-031
- V-Band Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-093
- V-Band Inlet Clamp: Product Code:CLC-CLA-025
- V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-094
- V-Band Outlet Clamp: Product Code:CLC-CLA-026
Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
- 836041-5001S
