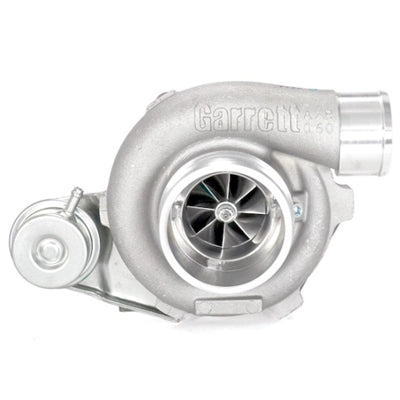

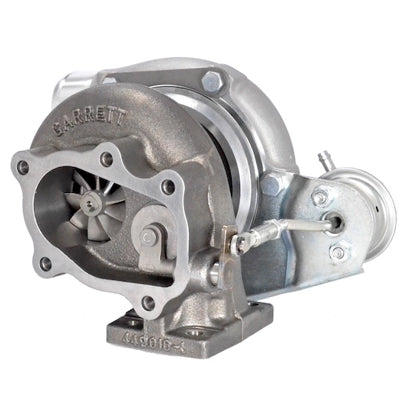

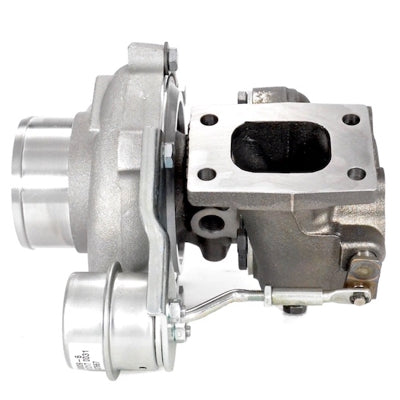

ATP Turbo GTX2967R DBB turbo w/ 14 psi act .64 A/R T25 Flanged Garrett Int W/G Tbn Hsg
by ATP Turbo
$5,020.63 NZD
SKU GRT-TBO-G52
Buy now pay later,no extra cost!
Payments from $502.06 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GTX2967R dual ball bearing turbo with 14 psi actuator .64 A/R T25 flanged Garrett internal wastegate turbine housing. 500HP potential flow.
The GTX2967R is available as a direct drop-in replacement to existing GT28 or GTX28 series turbochargers!
- Compressor Wheel Inducer: 50mm
- Compressor Wheel Exducer: 67mm
- Compressor Wheel Trim: 55
- Turbine Wheel Inducer: 57mm
- Turbine Wheel Exducer: 52mm
- Turbine Wheel Trim: 84
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor - Product Code: ATP-OIL-021)
- Oil drain flange - Product Code: ATP-FLA-010
- Oil drain gasket - Product Code: GRT-GSK-008
- T25 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-037
- T25 Inlet Gasket: Product Code:GRT-GSK-004
- 5 Bolt "GT28" Outlet Flange (for Downpipe): Product Code:ATP-FLS-088
- 5 Bolt "GT28" Outlet Gasket: Product Code:ATP-GSK-016

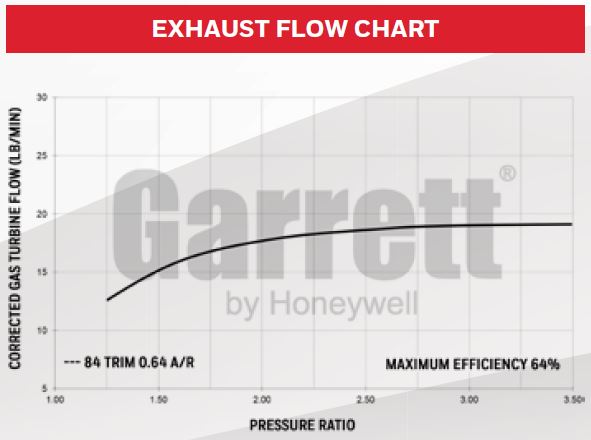

Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
- 836041-5001S
