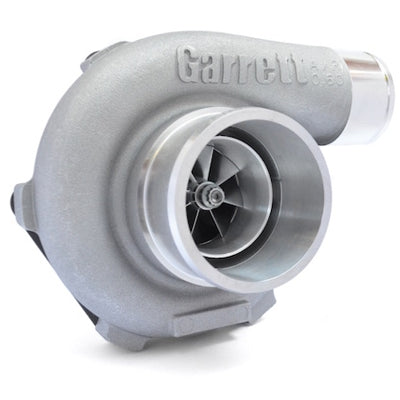

ATP Turbo GTX2967R DBB turbo , w/ .101 A/R Garrett UND VBAND Tbn Hsg, VBAND 3" EXIT
by ATP Turbo
$5,020.63 NZD
SKU GRT-TBO-G51
Buy now pay later,no extra cost!
Payments from $502.06 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GTX2967R dual ball bearing turbo with .101 A/R Garrett undivided v-band inlet and v-band 3" exit turbine housing. 500HP potential flow.
The GTX2967R is available as a direct drop-in replacement to existing GT28 or GTX28 series turbochargers!
- Compressor Wheel Inducer: 50mm
- Compressor Wheel Exducer: 67mm
- Compressor Wheel Trim: 55
- Turbine Wheel Inducer: 57mm
- Turbine Wheel Exducer: 52mm
- Turbine Wheel Trim: 84
- Coolant - Water Options (Requires 2 units): 14mm Coolant Fitting & Lines
- Oil feed options: -4 AN with built-in Restrictor - Product Code: ATP-OIL-021)
- Oil drain flange - Product Code: ATP-FLA-010
- Oil drain gasket - Product Code: GRT-GSK-008
- Stainless steel v-band turbine inlet flange - Product Code: ATP-FLS-191
- V-band inlet clamp - Product Code: CLC-CLA-047
- GT 3" V-Band Outlet Flange (for Downpipe) - Product Code: ATP-FLS-246
- V-band outlet clamp - Product Code: CLC-CLA-048
Compressor & Turbine Maps:
Applicable Garrett Part Numbers:
- 836041-5001S
