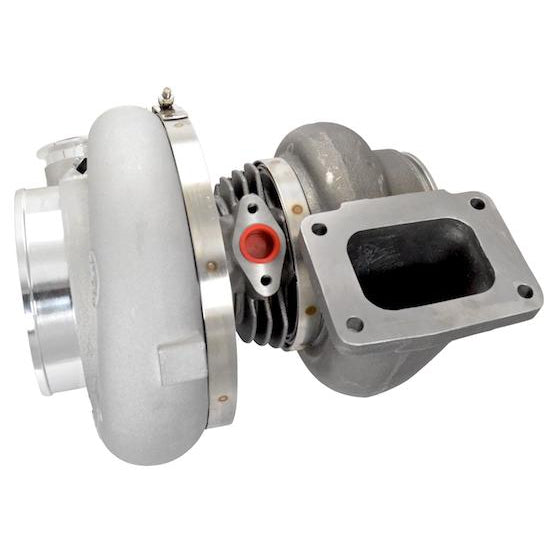

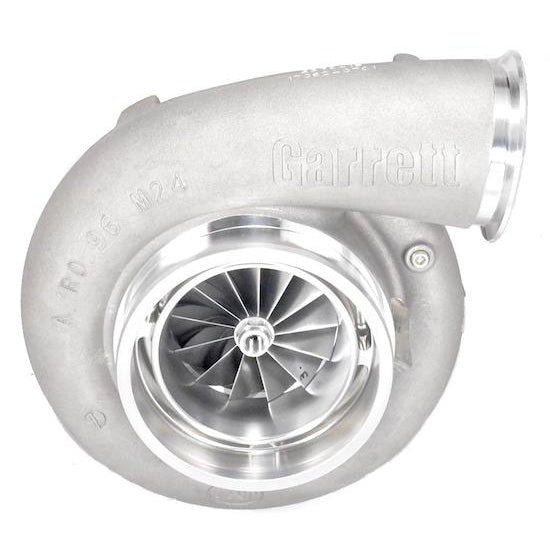

ATP Turbo Gen2 GTX5544R - 102mm Turbo with Garrett 1.12 A/R T6 Undivided Turbine Housing
by ATP Turbo
$13,016.98 NZD
SKU GRT-TBO-F08
Buy now pay later,no extra cost!
Payments from $1,301.69 with
Enjoy now. Pay Later. Interest free. Learn More
Garrett GEN2 GTX5544R - 102mm (aka GEN2 GTX55-102) dual ball bearing turbocharger with a 1.12 A/R T6 undivided turbine housing.
The highest flowing Garrett Gen II GTX 102mm turbo. The turbo for race classes limited to a 102mm compressor wheel inducer.
Product Features:- Gen II compressor wheel aerodynamics
- Supports 2,750HP+
- Larger .96 A/R compressor housing volute
- 144mm comp exducer (+ 11mm)
- Compatible with GT and GTX turbine housings
- Compressor Wheel Inducer: 102mm
- Compressor Wheel Exducer: 144mm
- Compressor Wheel Trim: 50
- Compressor Housing: .96 A/R, 6 Inch Inlet (cast ported shroud), and 3.5" V-Band Outlet
- Turbine Wheel Inducer: 112mm
- Turbine Wheel Exducer: 102mm
- Turbine Wheel Trim: 84
- Turbine Housing: 1.12 A/R, T6 un-divided Inlet and 5.0" V-Band Outlet
Oil Fittings, Flanges, and Components Solutions:
- Oil feed flange: Product Code: ATP-FLA-008
- Oil feed gasket: Product Code: GRT-GSK-011
- Oil drain flange: Product Code: ATP-FLA-035
- Oil drain gasket: Product Code: GRT-GSK-035
- Compressor Housing Outlet Flange & Clamp Set: Product Code:ATP-FLS-055
- Speed Sensor Kit: ATP-ACS-032
- T6 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-010
- T6 Gasket: Product Code:ATP-GSK-017
- V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-092
- V-Band Outlet Clamp: Product Code:CLC-CLA-022
NOTE: Alternate oil fittings and flanges are available.
Turbine Map:
Garrett Part Numbers:
- 851285-5021S
