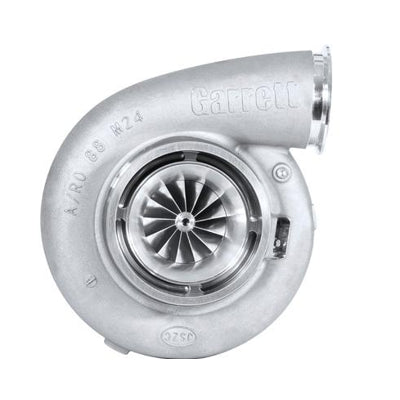

ATP Turbo Gen2 GTX5533R 91mm Turbo with Garrett 1.12 A/R T6 Undivided Turbine Housing

$11,261.19 NZD
SKU GRT-TBO-H24
Buy now pay later,no extra cost!

Payments from $1,126.11 with

Enjoy now. Pay Later. Interest free. Learn More
Add to Wishlist
    Garrett GEN2 GTX5533R (91mm) also known as the GEN2 "GTX55-98", dual ball bearing turbocharger with a 1.12 A/R T6 undivided inlet and v-band outlet turbine housing.
Product Features:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Machined speed sensor port
  • Light weight billet backplate
  • Oil cooled bearing housing (no water ports)
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 91mm
  • Compressor Wheel Exducer: 133mm
  • Compressor Wheel Trim: 54
  • Turbine Wheel Inducer: 112mm
  • Turbine Wheel Exducer: 102mm
  • Turbine Wheel Trim: 84

Coolant (Water) & Oil Fittings, Flanges, and Components Solutions:

  • Oil feed flange: Product Code: ATP-FLA-008
  • Oil feed gasket: Product Code: GRT-GSK-011
  • Oil drain flange: Product Code: ATP-FLA-035
  • Oil drain gasket: Product Code: GRT-GSK-035
  • T6 Inlet Flange (for Turbo Manifold): Product Code:ATP-FLS-010
  • T6 Gasket: Product Code:ATP-GSK-017
  • V-Band Outlet Flange (for Downpipe): Product Code:ATP-FLS-092
  • V-Band Outlet Clamp: Product Code:CLC-CLA-022

NOTE: Alternate oil fittings and flanges are available.

Compressor & Turbine Maps:



Applicable Garrett Part Numbers:

  • 851285-5005S
